core bore drilling machine
Vehicle mounted drilling machine
New designed 2015, the best new choice for your projects.

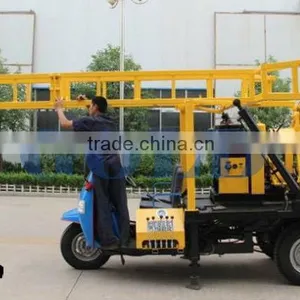

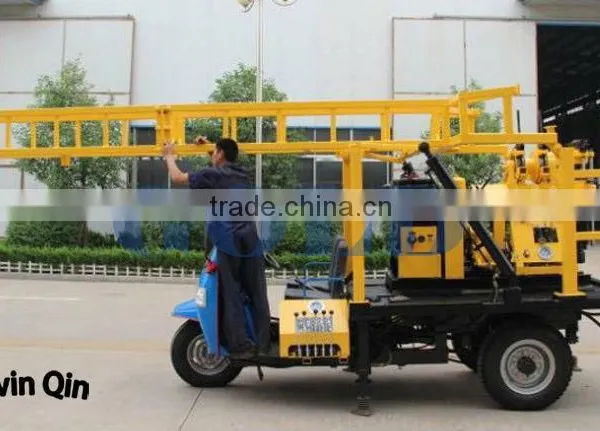

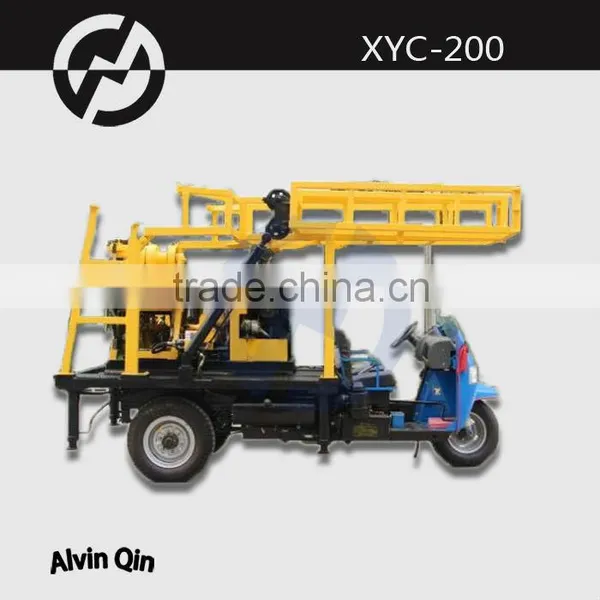

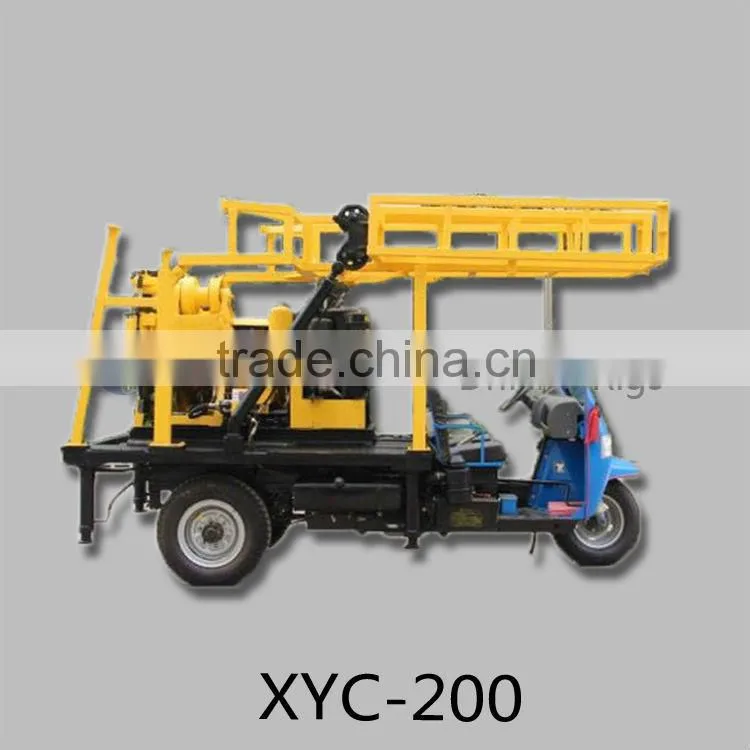

XYC-200 muntipurpose three wheel vehicle mounted hydraulic spindle core bore drilling machine is designed for Geological survey and prospecting, exploration roads and high-rise building foundation, as well as a variety of concrete structure inspection holes, rivers and dams, embankment grouting hole drilling and grouting direct civilian wells and geothermal central air conditioning.
Features:
1, XYC-200 is a multi-function hydraulic vehicle mounted rotary spindel drilling rig
2, It adopts three-wheel chassis 7YP-1475D1, the drive systems, hoist and mud pump are mounted on this chassis, reasonably compacted layout, easy to operate
3. It configures BW-160 mud pump, high pressure, big flow, which can ensure drilling depth and diameter
4. The rig has shifting device, it can move on the vehicle, convenient to operate while drilling

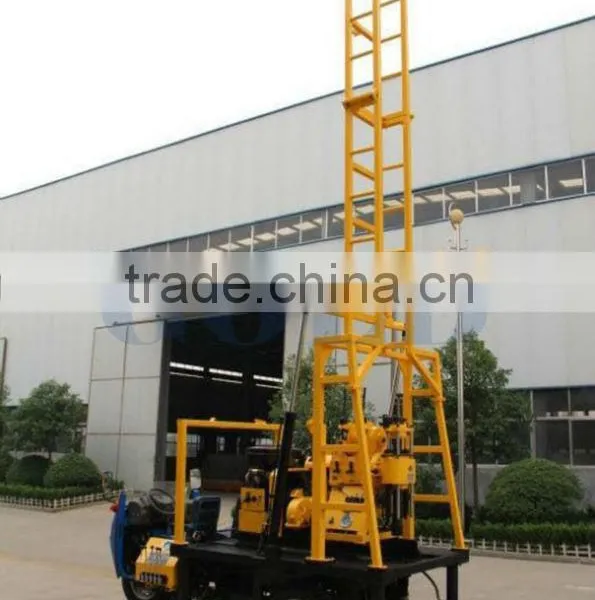

5. The hydraulic folding mast is safe and convenient to operate.
perforacion de pozos petroleros|barrenas de perforacion|perforaciones para agua|perforador de pozos de agua|agua de pozo|componentes de un equipo de perforacion
| Drilling depth(m) | 30-200 | ||
| Drilling diameter(mm) | 300-75 | ||
| Drilling Angel(°) | 90-75 | ||
| Spindle rotating speed(r/min) | 64,128,287,557 | ||
| Spindle stroke(mm) | 450 | ||
| Main hoisting capacity(single line)(Kg) | 1600 | ||
| Main hoisting line capacity(m) | 35 | ||
| hoisting speed(r/s) | 17,35,75,151 | ||
| Wireline diameter(mm) | 12.5 | ||
| Mast height(mm) | 7000 | ||
| Mast effective height(mm) | 6500 | ||
| Kelly/active pipe(mm) | 59*53 | ||
| Drill rod(mm) | 42,50,60 | ||
| Drill rig weight(kg) | 1150 | ||
| Power Unit | Model :ZS1115 desiel engine | ||
| Rated power: 14.7kw/2200rpm | |||
| BW-160 mud pump | Rated flow(L/min) | 160 | |
| Rated pressure(Mpa) | 1.3 | ||
| Driving power(kw) | 5.15 | ||
| main machine weight(kg) | 190 | ||
| Demension(mm) | 1110*725*965 | ||
| Chassis | Model | 7YP-1475D1 | |
| Drive mode | Rear-wheel drive | ||
| power unit | Model | ZS1115E2 | |
| emission standard | GB18322-2002,GB19756-2005(Ⅱ) | ||
| Rated power(KW) | 16.2 | ||
| Rotating speed(r/min) | 2200 | ||
1.Core bore Drilling machine 2.Water Well Drilling Rig 3.Anchoring Drilling Rig
4.Down-the-hole Drilling Rig 5.Underground Drilling Rig 6.Horizontal Directional Drilling Rig
