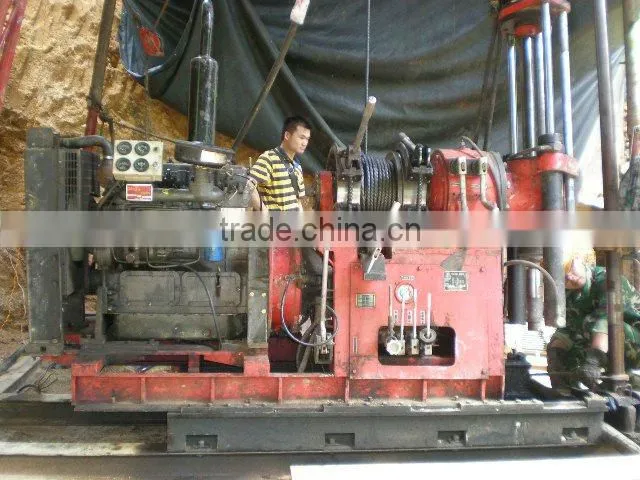

Help CenterMining Exploration Drilling Rig(HGY-650)
Related Products
-
HGY-200 Mining Exploration Drilling Rig, Core Sample Drilling RigUS$ 1 - 2MOQ: 1 Set -
Mining Exploration Drilling RigUS$ 1 - 2MOQ: 1 Set
-
XY-3 Mining Coal Exploration Drilling RigUS$ 1 - 2MOQ: 1 Set
-
HGY-200 Mining Exploration Drilling RigUS$ 1 - 2MOQ: 1 Set
-
HGY-300 Mining Exploration Drilling RigUS$ 1 - 2MOQ: 1 Set
Specifications
Mining Exploration Drilling Rig1Hydraulic chuck
2,Safe and reliable operations
3,Be attached to the tower
4High reliability

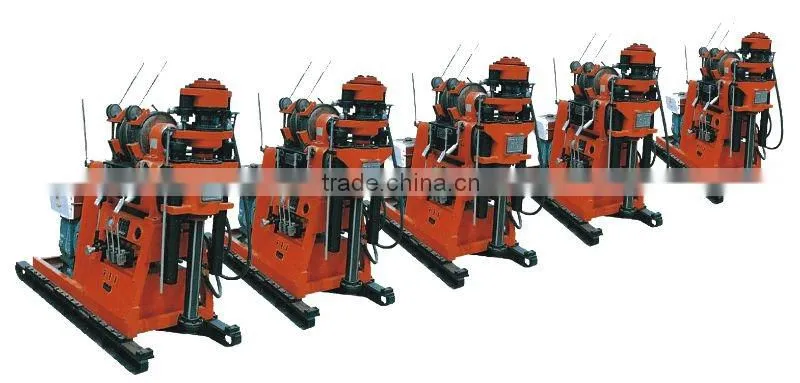

HGY-650 Mineral Exploration Drilling Rig
Brief introduction:
1.50 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features:
1) Compact in structure and light in weight.
2) High reliability, good performance and durability.
3) Common auto parts, such as clutch, transmission case and shifting structure.
4) Safe and reliable operations with synchronizer for shifting while the rig is running.
5) Be attached to the tower.
Use: for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Technological Data of Drilling Rigs:
Model |
HGY-650 Mineral Exploration Drilling Rig |
Drilling depth( m) |
650 |
Spindle speed( r/min) |
Positive rotation rate: 65 117 201 309 440 187 338 582 894 1273 Reverse rotation rate: 72 207 |
Spindle stroke(mm) |
600 |
Lifting power max( KN) |
80 |
Driving force max(KN) |
60 |
Spindle output torque max(N.M) |
3435 |
Spindle hole diameter( mm) |
Φ65 |
Lifting speed( m/s) |
0.43 0.78 1.35 2.08 2.95 |
Lifting capacity(single) max(KN) |
33 |
Diameter & Length of drum(m) |
Φ15*90 |
Movable cylinder stroke (mm) |
400(+-10) |
Max distance from hole (mm) |
250 |
Gear oil pump model |
CB-F32C-FL |
Nominal displacement( ml/r) |
32 |
Nominal pressure( MPa) |
16 |
Oil pump nominal rotation velocity(r/min) |
1800 |
Electromotor model |
YB200L-4 |
Power( kw) |
26 |
Diesel engine model |
K4100ZD |
Power( kw) |
36 |
Speed( r/min) |
1800 |
Weight(power unit excepted)(Kg) |
1550 |
Overall dimensions(mm) |
2400*1020*1700 |
