HGY-200 Mining Exploration Drilling Rig

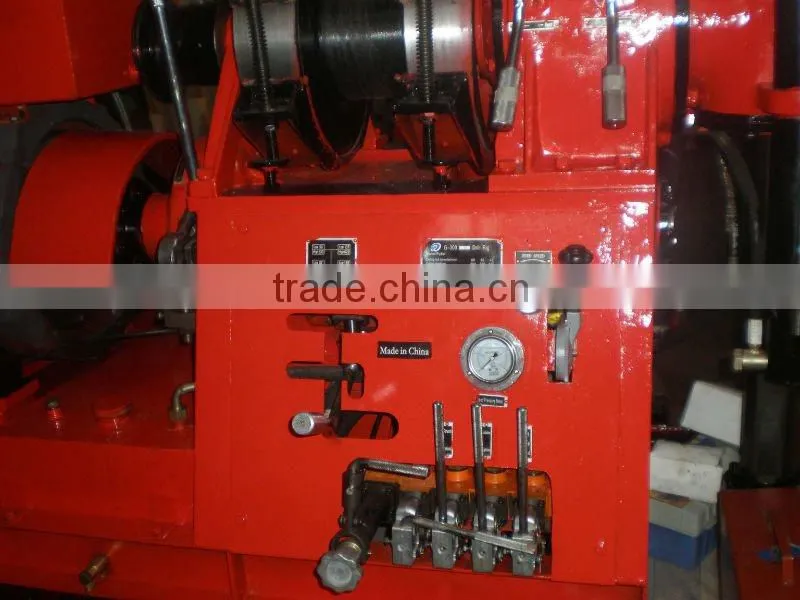

HGY-200 Mining Exploration Drilling Rig photo-1
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Core Drilling Rig, small, spindle, mini, deep, HGY-200, 200m
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/ shanghai/ guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Core Drilling Rig, small, spindle, mini, deep, HGY-200, 200m
Power Type Diesel
Place of Origin Hunan, China
Brand Name FLYDISC
Model Number HGY-200
Usage Coal
Voltage 220v
Power(W) 14.7kw
Dimension(L*W*H) 1860*800*1400
Weight 750kg
Certification CE/ISO9001:2008
Warranty 6 months
After-sales Service Provided Overseas service center available

Specifications

Mining Exploration Drilling Rig
1,drill depth:200m
2,Two patents
3,Hydraulic chuck or ball chuck
4,drill angle 0-360.



Company Information

HGY-200 Mining Exploration Drilling Rig

Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.

HGY-200 Mining Exploration Drilling RigThe rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.

HGY-200 Mining Exploration Drilling Rig
Our  factory                                              our team of foreign trade                       In 1992, 100m drill in Antarctica in  the world                           Go to drilling site to train drilling knowledge





Product Description



HGY-200 Mining Exploration Drilling Rig

Two patents for this drilling rig:

 Utility patent for transmission case.

 Design patent for appearance.

      HGY-200 Mining Exploration Drilling Rig     HGY-200 Mining Exploration Drilling Rig

Features of  HGY-200 Mining Exploration Drilling Rig

1) Good stability and high reliability.

2) Multilevel positive and reverse rotate speed.

3) The complete hydraulic chuck and vertical spindle.

4) Convenient to transport  with the small volume and light weight.

5 )Perfect frame's rigidity ,low center of gravity and good stability.

  HGY-200 Mining Exploration Drilling Rig

Technological Data of  HGY-200 Mining Exploration Drilling Rig

     Model

Mining Exploration Drilling Rig(HGY-200)

Drilling depth( m)

200

Drilling rod diameter.(mm)

Φ50

 Head angle range

360

Movable cylinder stroke (mm)

360

Spindle speed( r/min)

  Positive rotation rate:60 150 240 340 550 830

Reverse rotation rate: 35 85 135 195 330 480

Spindle hole diameter( mm)

Φ65

Spindle output torque max(N.M)

2140

Spindle stroke(mm)

500

Lifting power max( KN)

50

Driving force max(KN)

37

Lifting speed( m/s)

0.6 2.3 3.4

Lifting capacity(single) max(KN)

20

Steel wire rope diameter (mm)

11

Mode of chuck

Full-hydraulic chuck or ball-type chuck

 Weight(power unit excepted)(Kg)

 750

Overall dimensions(mm)

1860*800*1400

Diesel engine model

Zs1110 ( 14.7KW)

 Electromotor model

Y160L-4 ( 15KW)







HGY-200 Mining Exploration Drilling Rig





Matching Drill Tools



 Drill tools for  exploration wireline



HGY-200 Mining Exploration Drilling RigHGY-200 Mining Exploration Drilling Rig



Production

HGY-200 Mining Exploration Drilling Rig





Packaging & Shipping

HGY-200 Mining Exploration Drilling Rig
