0~200m Depth Drill Machine for Water Used, Water Well Drill Machine

0~200m Depth Drill Machine for Water Used, Water Well Drill Machine thumbnail-1
0~200m Depth Drill Machine for Water Used, Water Well Drill Machine thumbnail-2
0~200m Depth Drill Machine for Water Used, Water Well Drill Machine thumbnail-3
0~200m Depth Drill Machine for Water Used, Water Well Drill Machine thumbnail-4
0~200m Depth Drill Machine for Water Used, Water Well Drill Machine thumbnail-5
0~200m Depth Drill Machine for Water Used, Water Well Drill Machine thumbnail-6
0~200m Depth Drill Machine for Water Used, Water Well Drill Machine photo-1
0~200m Depth Drill Machine for Water Used, Water Well Drill Machine photo-2

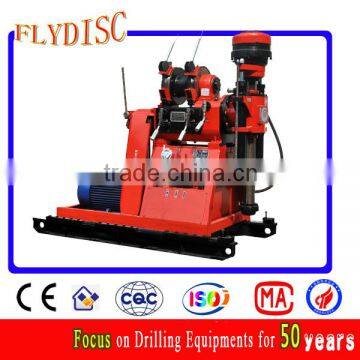

0~200m Depth Drill Machine for Water Used, Water Well Drill Machine photo-3

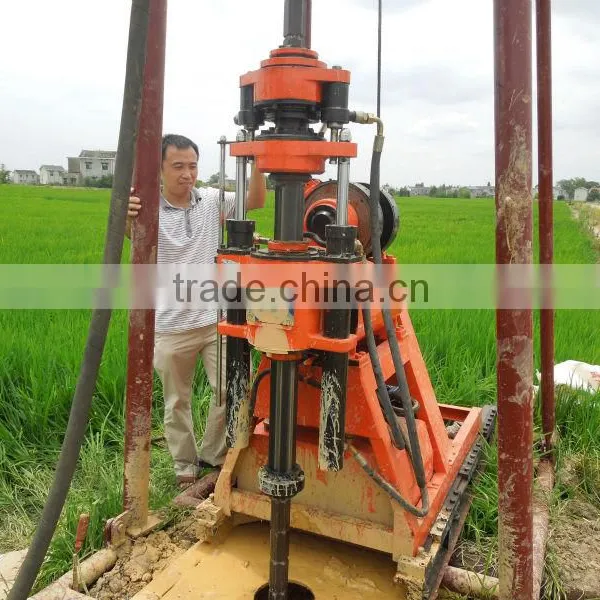

0~200m Depth Drill Machine for Water Used, Water Well Drill Machine photo-4

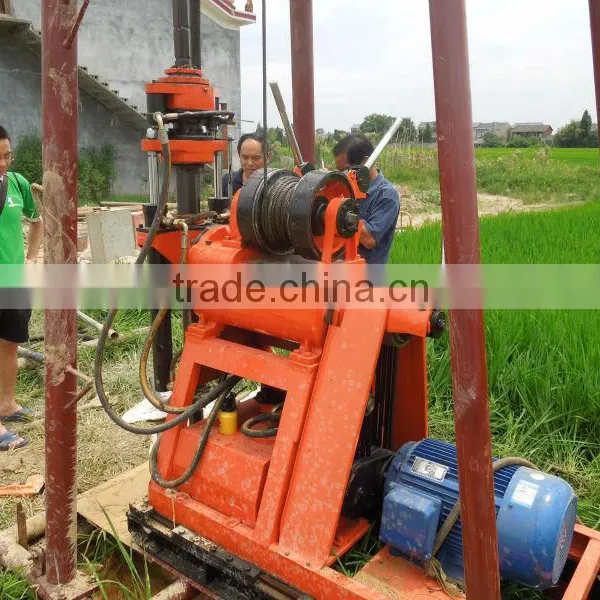

0~200m Depth Drill Machine for Water Used, Water Well Drill Machine photo-5

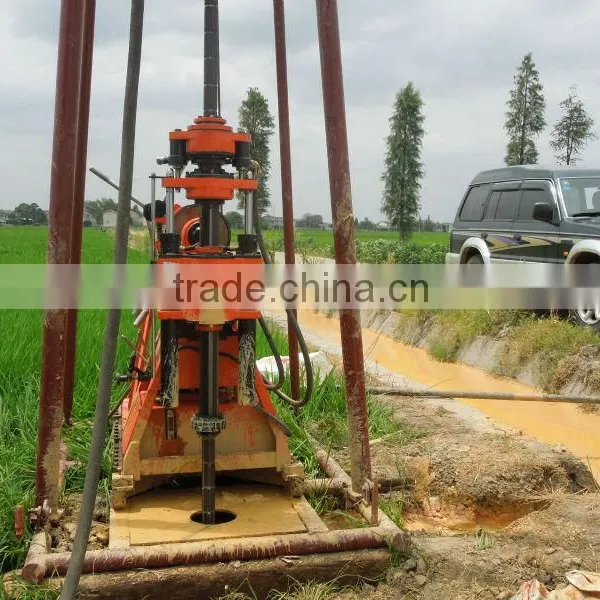

0~200m Depth Drill Machine for Water Used, Water Well Drill Machine photo-6
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Rotary Drilling Rig, small, spindle, mini, deep, HGY-200, 200m
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Hunan Flydisc New Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ Shenzhen/ Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Rotary Drilling Rig, small, spindle, mini, deep, HGY-200, 200m
Power Type Diesel
Place of Origin Hunan, China
Brand Name FLYDISC
Model Number HGY-200
Usage Coal
Voltage 220v
Power(W) 14.7kw
Dimension(L*W*H) 1860*800*1400
Weight 750kg
Certification ce/ISO9001:2008
Warranty 6 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

drill machine for water used, water well drill machine
1,Drilling depth:200m
2.Drilling dia.75mm
3.rotary core drilling rig



Product Description

 HGY-200 drill machine for water used, water well drill machine

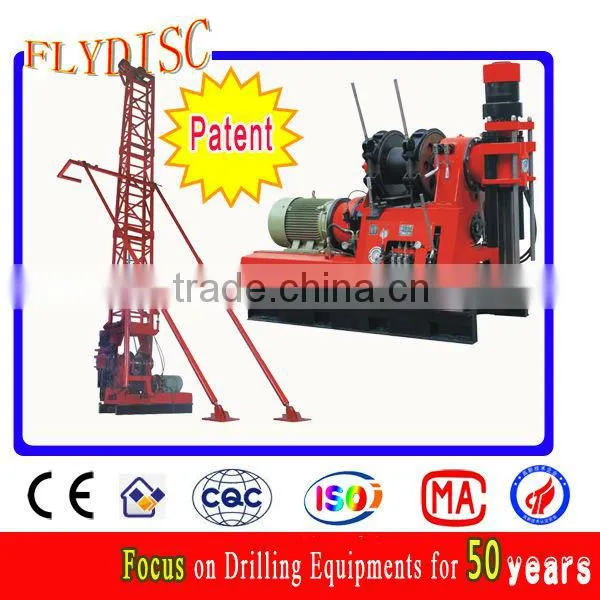

Two patents for HGY-200 drill machine for water used, water well drill machine :

Utility patent for transmission case.

Design patent for appearance.



Drilling Ability of HGY-200  drill machine for water used, water well drill machine :

Drilling depth: 100m

Drill hole diameter: 75mm(46~250mm)

Max successful drilling depth: 427m, 478m with 75mm hole diameter

 0~200m depth drill machine for water used, water well drill machine

Applications of HGY-200 drill machine for water used, water well drill machine :

1.Construction drilling of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction

2. Coal mining exploration, Ore exploration

3. Small hole diameter water well drilling

4. Geothermal pipe-installing for heat pump

5. Small-diameter hole foundation piling drilling;



  0~200m depth drill machine for water used, water well drill machine



Technological Data of Geologicalcore Drill Rig :

Model

Drilling Rig(HGY-200)

Drilling depth( m)

200

Drilling rod diameter.(mm)

Φ50

Head angle range

360

Movable cylinder stroke (mm)

360

Spindle speed( r/min)

Positive rotation rate:60 150 240 340 550 830

Reverse rotation rate: 35 85 135 195 330 480

Spindle hole diameter( mm)

Φ65

Spindle output torque max(N.M)

2140

Spindle stroke(mm)

500

Lifting power max( KN)

50

Driving force max(KN)

37

Lifting speed( m/s)

0.6 2.3 3.4

Lifting capacity(single) max(KN)

20

Steel wire rope diameter (mm)

11

Mode of chuck

Full-hydraulic chuck or ball-type chuck

Weight(power unit excepted)(Kg)

750

Overall dimensions(mm)

1860*800*1400

Diesel engine model

Zs1110 ( 14.7KW)

Electromotor model

Y160L-4 ( 15KW)





Production





Packaging & Shipping





Matching Drill Tools





The drill tools for  geological investigation(SPT test)

0~200m depth drill machine for water used, water well drill machine0~200m depth drill machine for water used, water well drill machine







Company Information

0~200m depth drill machine for water used, water well drill machine

Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.



0~200m depth drill machine for water used, water well drill machineThe rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.

0~200m depth drill machine for water used, water well drill machine







how to install

How to install this rig? How to operate this rig?

Don't worry,  buy our products, we will give you professional guidance.



We have produced drilling equipments for more than 50 years.

We are a Professional manufacturer.

If this rig is right for you,don't  hesitate to contact us immediately.

If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you  and  recommended right drilling rig for you.



Don't hesitate, email to us now. You will get unexpected results !
