Specifications
rock test drilling rigDrilling depth:300m
Drilling dia.:75~200mm
Drilling Rig Machine for rock prospecting drill, rock

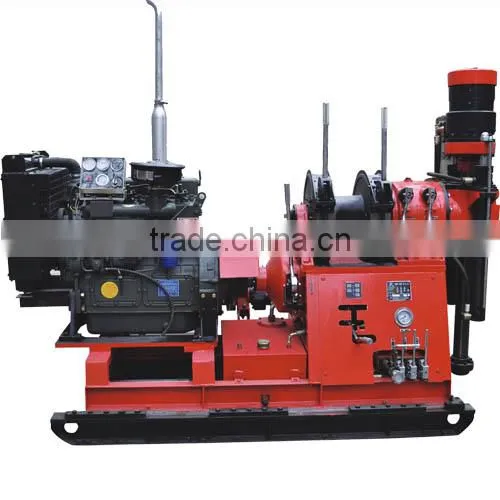

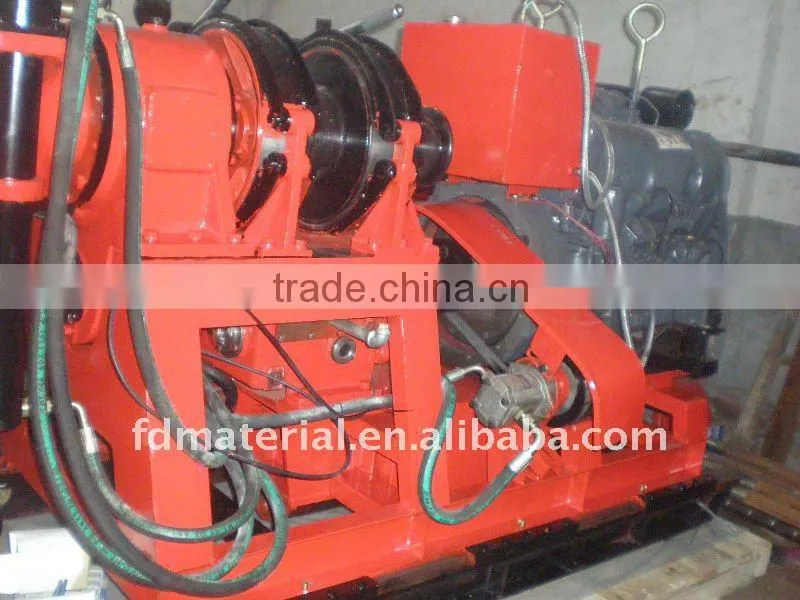

HGY-300 Drilling Rig Machine for Rock Test Drill Rig
Company introduction:
1. 50 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc
| |||
| Our factory | our team of foreign trade | In 1992, 100m drill in Antarctica in the world | Go to drilling site to train drilling knowledge |
Features HGY-300 Drilling Rig Machine for Rock Test Drill Rig 1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
Technological Data of HGY-300 Drilling Rig Machine for Rock Test Drill Rig
Model |
HGY-300 Core Drilling Rig |
Drilling depth( m) |
300 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
0~360 |
Movable cylinder stroke (mm) |
400 |
Spindle speed( r/min) |
Positive rotation rate:34 67 115 189 238 156 307 531 868 1094 Reverse rotation rate: 38 173 |
Spindle hole diameter( mm) |
65 |
Spindle output torque max(N.M) |
3100 |
Spindle stroke(mm) |
530 |
Lifting power max( KN) |
60 |
Driving force max(KN) |
40 |
Lifting speed( m/s) |
0.30 0.59 1.01 1.66 2.09 |
Lifting capacity(single) max(KN) |
30 |
Steel wire rope diameter (mm) |
13 |
Mode of chuck |
Full-hydraulic chuck or ball-type chuck |
Weight(power unit excepted)(Kg) |
1200 |
Overall dimensions(mm) |
2000*900*1600 |
Diesel engine model |
395K2( 19.8KW) |
Electromotor model |
Y180L-4( 22KW) |
Application of HGY-300 Drilling Rig Machine for Rock Test Drill Rig
1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
For Gotechnical Prospecting , you also need drill tools as following:
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
