Specifications
geotechnical drilling machine1,Drilling depth:200m
2.Drilling dia.75mm
3.rotary core drilling rig
re Drill rig

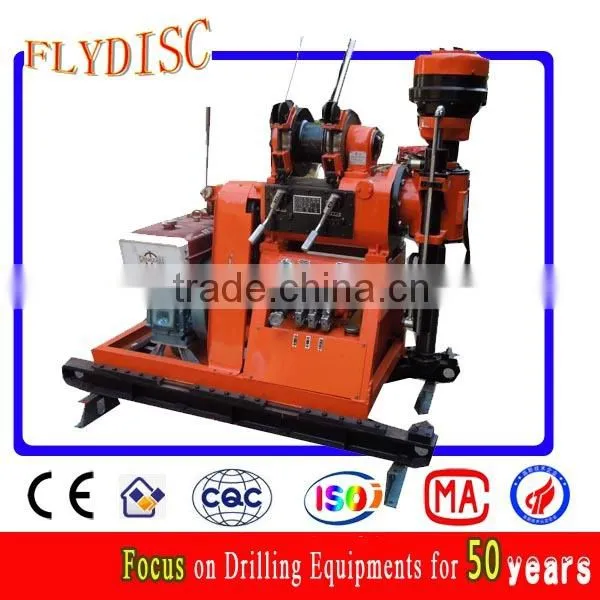

HGY-200 Geotechnical Drilling machine
Two patents for HGY-200 Geotechnical rotary core Drill Machine:
Utility patent for transmission case.
Design patent for appearance.
Drilling Ability of HGY-200 Geotechnical rotary core Drill Rig :
Drilling depth: 100m
Drill hole diameter: 75mm(46~250mm)
Max successful drilling depth: 427m, 478m with 75mm hole diameter
Applications of HGY-200 Geotechnical rotary core Drill Rig :
1.Construction drilling of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction
2. Coal mining exploration, Ore exploration
3. Small hole diameter water well drilling
4. Geothermal pipe-installing for heat pump
5. Small-diameter hole foundation piling drilling;
Technological Data of Geotechnical rotary core Drill Rig :
Model |
Drilling Rig(HGY-200) |
Drilling depth( m) |
200 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
360 |
Movable cylinder stroke (mm) |
360 |
Spindle speed( r/min) |
Positive rotation rate:60 150 240 340 550 830 Reverse rotation rate: 35 85 135 195 330 480 |
Spindle hole diameter( mm) |
Φ65 |
Spindle output torque max(N.M) |
2140 |
Spindle stroke(mm) |
500 |
Lifting power max( KN) |
50 |
Driving force max(KN) |
37 |
Lifting speed( m/s) |
0.6 2.3 3.4 |
Lifting capacity(single) max(KN) |
20 |
Steel wire rope diameter (mm) |
11 |
Mode of chuck |
Full-hydraulic chuck or ball-type chuck |
Weight(power unit excepted)(Kg) |
750 |
Overall dimensions(mm) |
1860*800*1400 |
Diesel engine model |
Zs1110 ( 14.7KW) |
Electromotor model |
Y160L-4 ( 15KW) |
The drill tools for geological investigation(SPT test)
|
|
|
|
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
