Serial Port (RS232/RS485-TCP/IP) Protocol Converter,network Protocol Converter
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kingbird
Model Number:
KB2000
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Specialist Manufacturer! Rs232 Lan ConverterNegotiableMOQ: 1 Unit -
Specialist Manufacturer! RS232/RS485 to Lan ConverterNegotiableMOQ: 1 Unit
-
Serial Port (RS232/RS485-TCP/IP) Protocol Converter,KB2000 Network Converter,RS232/485-TCP/IP Hdmi Signal ConverterNegotiableMOQ: 1 Unit
-
Serial Port (RS232/RS485-TCP/IP) Protocol Converter,KB2000 Internetwork Converter,RS232/485-TCP/IP Hdmi Signal ConverterNegotiableMOQ: 1 Unit
-
KB2000 Tcp/ip Converter, Converter RS232 to RJ45, Rj45 Protocol ConverterNegotiableMOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
Kingbird
Model Number
KB2000
Specifications
Converter:1.transmit the data between RS232/RS485 and TCP/IP through internet.
2.Unlimited data capacity
3.Plug and Play
KB2000 Network converter RS232/RS485 to TCP/IP
1. Overview
KB2000 is a Network converter (Special for Internet) which transmits the data from RS232/RS485 to TCP/IP network and TCP/IP network to RS232/RS485 with embedded TCP/IP protocols for M2M applications. KB2000 is our company’s proprietary product can provide user with high-speed, always-on, and transparent data transmission virtual private communication network.
KB2000 supply 10M/100M Ethernet interface upwards, and supply one standard RS232 (or RS485) COM port. It have 16K buffer, its parameters can be set with software, and its baud rate can be set from 300bps to 115200bps. KB2000 can suit for all kinds of network environment.
Applications: electric power, oil field, coal mine safety, weather forecast, environment protection, heating pipe line, gas pipe line, street lamp control, telecommunications, post, bank and so on.
2. Product Features
| Build-in procotol | ||
| Support TCP, UDP network protocol; | ||
| RS232/RS485 to TCP/IP protocol convert steady, build-in maturity and perfect TCP/IP protocol stack; | ||
| Built-in Chinese or English configuration tool | ||
| DDP, protocol, ensuring the data channel reliability | ||
| Kingbird Data Center software(Server) support | ||
| Kingbird Appserver software support | ||
| Communication | ||
| Steady and reliable network platform of Data transmition, powerful Server software and client software support; | ||
| Unlimited for transmission range, Can realize two or more points communication which the place connect with Internet all over the world; | ||
| Support point-to-point , Point–to–Multipoint, Multipoint-to-Multipoint Communication Mode; | ||
| "Plug and Play" solution can realize internet data tranmistion from COM to COM; | ||
| Suit for LAN, VPN etc. Intranet data transmintion; | ||
| Hearbeat function for addressing and reliable data transmition | ||
| Through internal communication portocol, powerful Data error correction function; | ||
| High real-time of data tranmition, buffer:16K, Data delay in very short time. | ||
| Transmition based on Internet/Local network | ||
| Always online: automatic online, automatic redial and keep-alive while the line dropped. | ||
| Self-define re-connecting interval and online report interval | ||
| Supports static data service center IP address | ||
| Industrial design | ||
| Independent research and development, Unique functions for Internet data tranmistion of products; | ||
| Industrial class design and components to meet harsh environmental requirements; | ||
| Optimized EMC anti-jamming design, strong adaptiveness; | ||
| Wide range Baud rate:300~115200bps (Adjustable) | ||
| Wide range temperature -30~ 80 °C | ||
| Operation | ||
| Supports configuration by network | ||
| Zone manage and communication; | ||
| Adjustable Heartbeat interval and timeout | ||
| Flexible data link modes for varied applications | ||
| Support hardware and software Watch Dog Timer | ||
| Data loop testing,Powerful data service center testing tool | ||
| Reliable, flexible, easy to use and management | ||
3. Specifications
| Interface | ||
| 10M/100M Ethernet interface | ||
| Serial data interface | ||
| • Type: TTL/RS-232/RS-485 | ||
| • Connector:4.0mm pluggable terminal block | ||
| • Configuration interface: RJ45(network) | ||
| Power | ||
| Power supply: 5V~12V DC | ||
| Average working electric current: <60mA | ||
| Power consumption: <500mW | ||
| Other | ||
| Buffer size: 16K; | ||
| Mechanical: 95x65x26 mm | ||
| Weight: 200g | ||
| Operation temperature: -30°C~+80°C | ||
| Store temperature: -40°C~+85°C | ||
| Relative humidity: 20-95% non-condensing | ||

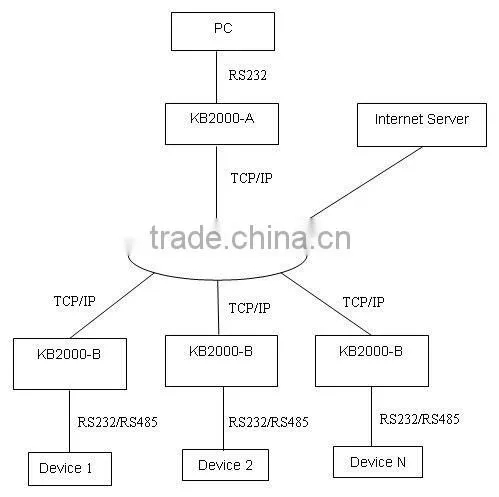

KB2000-A Work with KB2000-B

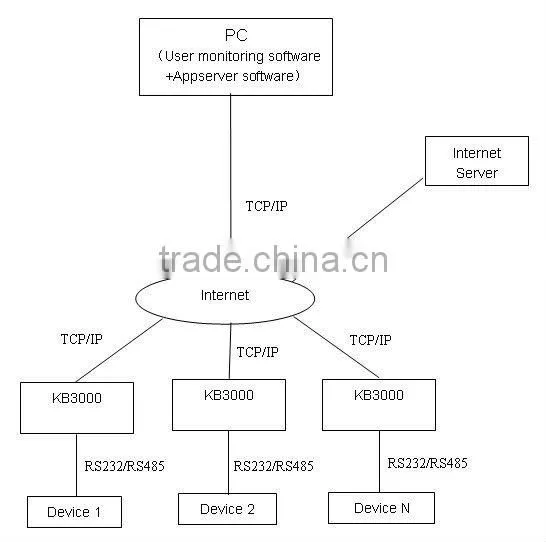

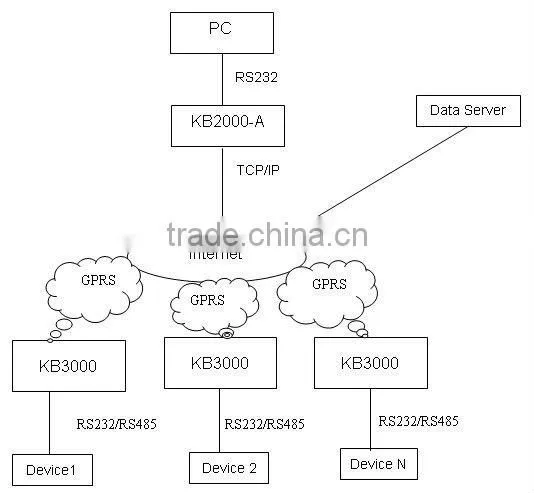

KB2000-A Work with KB3000
Appserver software With KB2000-B
