Specifications
RS232/RS485 Interfacebuilt-in Modbus-RTU protocol
Frequency:850/900/1800/1900MHz
support SMS,USSD,CSD
1.1 Brief Introduction
KB3200 GPRS RTU(Remote Terminal Unit) is the use of high-reliability processors and industrial grade GPRS wireless data transmission module, embedded microcontroller technology, GPRS wireless communication technology and engineering measurement and control technology, high reliability, high stability, functionality, wide range of applications, is one of the new generation of remote communication control terminal widely used for telemetry, remote control, wireless data transmission in

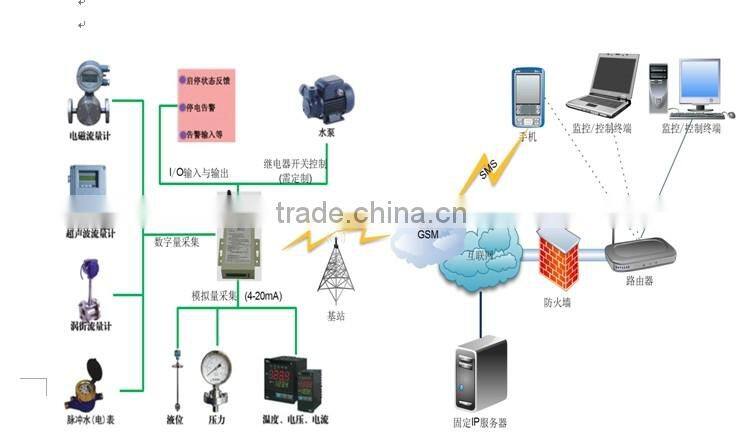

KB3200 GPRS RTU integrates analog, digital signal acquisition, optocoupler outputs and GPRS wireless data transmission in one, built-in Modbus-RTU protocol, direct access to a standard analog transmitter output signal (4 ~ 20mA), level signal, pulse signal (custom), connect and control a variety of Modbus-RTU protocol for industrial instrumentation.
KB3200 GPRS RTU is used in electric power automatic system, industry monitoring, traffic management, atmosphere, pro-environment, pipe network monitoring, finance, securities departments and so on. Consider the networking request from different application scope, achieve Virtual data private network in network structure. It is applicable to data remote acquisition and control of the Center to multi-points, multi-points scatter Center to multi-points, multi-points scatter.
1.2 Product Feature
l Two analog signal acquisition,4-20mA or 0-33V,16bit resolution, precision 1‰,speed 100KHz;
l 1 on-off input ,input level is:5V
l 1 on-off output ,output level is:5V
l 1 serial port , RS232/RS485,user need notice when you place order.
l Industrial high quality CPU ,low power dissipation ,good anti-jamming capability
l Embedded Modbus-RTU communication protocol.
l Integration data acquisition, transmission, low price control, with high reliability
l Embedded watchdog, no device dead , can self-recovery automatic.
l Supply kinds of interface: analog signal acquisition , on-off input/output ,pulse signal acquisition.(custom made)and so on.
l Automatic IP register mechanism , can achieve various server modes, build complete super large SCADA system.
l Wireless working mode: SMS or GPRS data transmission on real time.
l Remote modify the SMS content or GPRS parameters.
l Alarm message send to setup mobile No.
l Powerful Remote control ability, control the field equipment directly by center-control .
l Supply the configuration software, open interface, easy to connect with the configuration software or other control software.
1.3 Safe Use
KB3200 GPRS RTU Completely complied with national radio product safety technical regulations.
Warm Tip: You must not touch the antenna with your hands or body. During 15 seconds after KB3030-RO DTU started, Please keep away from the antenna. If the antenna is damaged, you must replace it in time, assorted and qualified cable and antenna.
1.4 EMI
Now most electric device all has electromagnetic pulse hardening, but some old device may have no, under RF power radiation, it may go wrong. When you use KB3030-RO GPRS DTU, please check the device nearby have electromagnetic pulse hardening or not.
2 KB3200 GPRS RTU Technical Specification
2.1 Basic parameters:
Power supply:7~35V
Power dissipation:<3W
Communication mode:
Port RS232:300 ~ 115200bps
Port RS485: 300 ~ 115200bps
GPRS parameters
Frequency:GSM850MHz/EGSM 900MHz/DCS1800MHz/PCS1900MHz
GPRS Multi-slot Class 12
GPRS Mobile Station Class B
GPRS Coding: CS1~CS4
Output Power: Class 4 (2W) at GSM850MHz and GSM900MHz
Class 1 (1W) at DCS1800MHz and PCS1900MHz
Sensitivity: <-107 dBm (typ.) at GSM850 MHz <-107 dBm (typ.) at GSM900 MHz <-107 dBm (typ.) at DCS1800MHz <-107 dBm (typ.) at PCS1900MHz
Compatible standard AT command(GSM07.05 and 07.07)
Support extend command
Support SMS,USSD,CSD
Embed TCP/IP Protocol
Transparent data
Support IP address or Domain data center, support private APN.
SMS
Analog acquisition parameters:
Two analog acquisition
Acquisition scope
0 ~ 3.3V
4 ~ 20mA
Switching time:
Filtering:0.56S/2 channel
No filtering:0.12S/2 channel.
Digital value parameters:
One analog 5V level switch on-off output
One analog 5V level switch on-off input
Working Temperature: -40°C~80°C
Relative Humidity: 20%~ 95%(No Condensation)
