M2M GSM SMS Terminal for phase energy meter read

Specifications

GSM SMS Terminal
1 gprs streetlight switch
2 rs232/rs485/TTL
3 phase energy meter read
4 plug and play

1. Overview

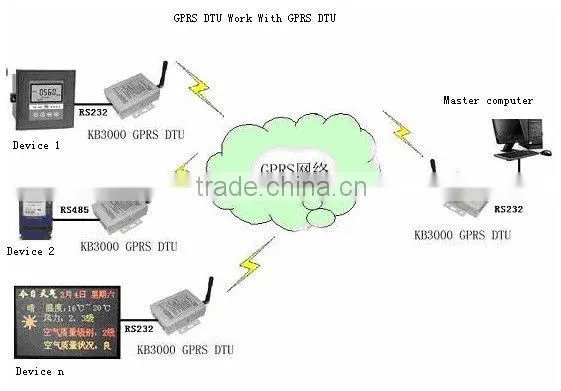

    KB3022 GPRS MODEM is a terminal which embedded industrial class GPRS Module based on the 2.5G Mobile SMS platform, Standard industrial design, support GPRS network, transmit data by SMS(transmission form: HEX, ASCII, UCS2.) and so on. Supply RS232, RS485, TTL interface (User need to clarify the interface information before place order), connect with device directly to achieve wireless connect net and wireless data transmission.

    KB3022 GPRS MODEM is used in electric power automatic system, industry monitoring, traffic management, atmosphere, POS, vending machine, Mobile Banking, pro-environment, pipe network monitoring, finance, securities departments and so on. Especially suit for the situation which have no condition to connect with Internet in remote mountain. To meet the networking request of all kinds of applications, KB3022 support flexible network plan. It is applicable to small and medium data transmitting of the Center to multi-points, multi-points scatter.

 2. Product Features

Build-in procotol
	Embedded PPP, TCP/IP,UDP/IP stack
	Built-in Chinese or English configuration tool
	DDP, protocol, ensuring the data channel reliability
	Kingbird AT+ protocol, satisfying the customized applications
Communication
	Frequency: 850MHz/900MHz/1800MHz/1900MHz, can be suit for every country all over the world (Including North Amercia and South America);
	Advanced and strict data communication protocol, with the function of correction and encryption. Never lose package when data transmission.
	Support very large  SMS message package, one message package can be 1024bytes;
	Supports peer to peer, center to multi-point,  multi-point to  multi-point data transmission
	Supply Modem work status interface, user can estimate Modem’s work status anytime
	SMS format support three types: HEX, ASCII and UCS2
Industrial design
	Independent research and developing, embedded 32 bit ARM7-CPU with real-time operating system.
	Standard industrial products, EMC anti-jamming design, strong adaptiveness.
	Industrial class design and components to meet harsh environmental requirements
	Interface: RS232,RS485, TTL(5V), CMOS(3.3V);
	Industrial class pluggable terminal block
	Standard antenna and SIM interface
	Working temperature range: -40°C-80°C, communication is not effected at -40°C
Operation
	Support two work modes: SMS Modem and Modem;
	SMS Modem: Type A protocol and Type B Protocol, A can network with A and B;
	Online control interface with the connected device
	Adjustable Heartbeat interval and timeout
	Flexible data link modes for varied applications
	Support hardware and software Watch Dog Timer
	Powerful data service center testing tool
	Reliable, flexible, easy to use and management



3  Specifications

GPRS DATA
	GPRS Module: M10
	Supports GSM/GPRS
	Supports GSM850MHz/EGSM900MHz/DCS1800MHz/PCS1900MHz
	Code Scheme
interface
	Antenna: 50Ω/SMA-K(Female)
	SIM: standard user card interface (3V)
	Serial data interface
	• Type: TTL/RS-232/RS-485
	• baud rate: Standard products 300~115200bps (defult 9600bps, Adjustable)
Power
	Power supply: 5V~24V DC
	Power Standby: < 50mA@5V
	Power Communicating: < 200mA@5V
	Power Launched peak: 1.5A@5V
Other
	Mechanical: 82x59x25.2 mm (not including antenna and mounting kits)
	Operation temperature: -40°C~+80°C
	Store temperature: -45°C~+125°C
	Relative humidity: 20%~95% non-condensing
