M2M GPRS Wireless Transmitter and Receiver With SIM Card,plug and Play KB3030
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kingbird
Model Number:
KB3030
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M2M M2M GPRS Terminal for Phase Energy Meter ReadNegotiableMOQ: 1 Set -
Automation Arm System With Gprs Gsm ModemNegotiableMOQ: 1 Set
-
M2M GSM SMS Terminal for Gprs AutomationNegotiableMOQ: 1 Set
-
Plug and Play Gsm Modem Rs232 for Water, Gas and Oil Flow MeteringUS$ 65 - 100MOQ: 1 Set
-
Wireless Energy Monitor With Wireless Gprs ModemNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Kingbird
Model Number
KB3030
Specifications
1.850/900/1800/1900MHZ2. DTU Modem, SMS Modem
3.remote control
4.Plug and play(New solution)
1 Overview

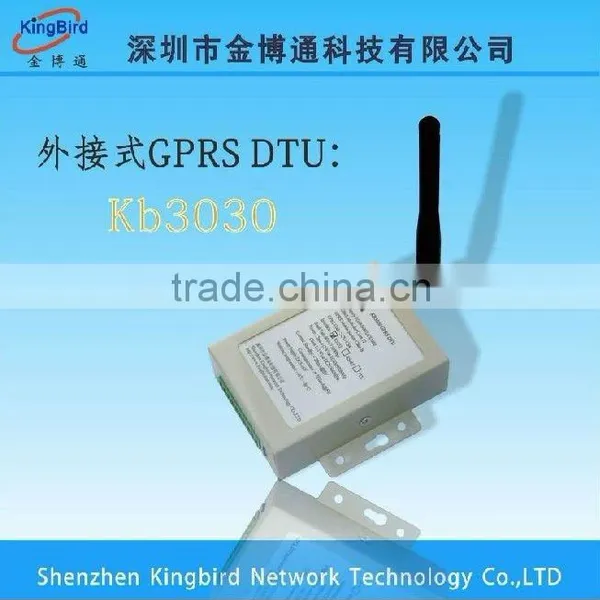

KB3030 GPRS DTU (Data Terminal Unit) is wireless data transmitting terminal of GPRS/SMS and embedded with High reliable ARM7 CPU. M2M wireless transmitter and receiver with SIM card,plug and play KB3030
Based on the public net, KB3030 GPRS DTU transmit widely, stably and reliably, KB3030 GPRS DTU is widely used in unattended operation device, Remote AMR, remote data acquisition, remote AMR, remote scheduling and so on. Due to this product is designed for industry integrated, we adopt special designs in the temperature scope, shaking, EMC and interface multiform and so on, to keep it good stability in the severe atmosphere, ensure high quality for your device.
2 Product Features
| Build-in procotol | Support TCP,UDP Network protocol and Data channel backup. | |
| Built-in Chinese or English configuration tool | ||
| DDP, protocol, ensuring the data channel reliability | ||
| Kingbird Data Center software (Server) support | ||
| Kingbird Appserver software support | ||
| Communication | Frequency: 850/900/1800/1900MHz, can be suit for every country all over the world (Including North Amercia and South America) | |
| Self-Research network platform supply with “Plug and Play” solution: Work with KB2000 and K3020. No need software and hardware development, can realize commincatioin Change COM to COM to GPRS remote data transmition | ||
| Advanced and strict data communication protocol, with the function of correction and encryption. Never lose package when data transmission | ||
| IO switching value function: Two channels input, two channels IO output. Remote control and reading. Alarm status threshold, automatic alarm signal report function | ||
| Strong server software support, application for many years, strong function. | ||
| Supply DTU work status interface, user can estimate DTU’s work status anytime; | ||
| Strong communication backup function: Support switchover automatic between main server and backup server; | ||
| Support special APN, data center support fixed IP and DDNS. | ||
| Support VPN /VPDN | ||
| Always online: automatic online, automatic redial and keep-alive while the line dropped. | ||
| Self-define re-connecting interval and online report interval | ||
| Supports DNS and dynamic data service center IP address | ||
| Supports peer to peer, center to multi-point, multi-point to multi-point data transmission | ||
| Industrial design | Independent research and developing, embedded 32 bit ARM7-CPU with real-time operating system. | |
| Standard industrial products, EMC anti-jamming design, strong adaptiveness | ||
| Bare borad and small size, low cost, easy to be embedded integration | ||
| Industrial class design and components to meet harsh environmental requirements | ||
| Interface: TTL(5V), CMOS(3.3V) | ||
| Working temperature range: -40°C-80°C, communication is not effected at -40°C | ||
| Operation | Remote sleep and awake: User can use appointed cell phone number to dial can sleep or awake DTU, it is convenient for user to save a lot of GPRS Flow Fee when no need to use DTU | |
| Remote modify DTU parameters by network(data service center) | ||
| Adjustable Heartbeat interval and timeout | ||
| Flexible data link modes for varied applications | ||
| Support hardware and software Watch Dog Timer | ||
| Powerful data service center testing tool | ||
3 Specifications
| GPRS DATA | GPRS Module: M10 | |
| Supports GSM/GPRS | ||
| Supports GSM850MHz/EGSM900MHz/DCS1800MHz/PCS1900MHz | ||
| interface | Antenna: 50Ω/SMA-K(Female) | |
| SIM: standard user card interface (3V) | ||
| Serial data interface | ||
| • Type: TTL(5V), CMOS(3.3V); | ||
| • Baud rate: Standard products 300~115200bps (defult 9600bps, Adjustable) | ||
| • Connector:3.5mm pluggable terminal block | ||
| • Configuration interface: RS-232 Standard-115200bps | ||
| Power | Work Voltage: GPRS Module: 3.4VDC~4.5VDC; 3.4V~4.5V DC; MCU: 2.0VDC~3.6VDC | |
| Power Standby: < 30mA@5V | ||
| Power Communicating: < 200mA@5V | ||
| Power Launched peak: 1.5A@5V | ||
| Other | Mechanical: 54×36×6.8mm (not including antenna and mounting kits) | |
| Weight: 20g | ||
| Operation temperature: -40°C~+80°C | ||
| Store temperature: -45°C~+125°C | ||
| Relative humidity: 20%~95% non-condensing | ||
Plug and play application (COM TO COM )

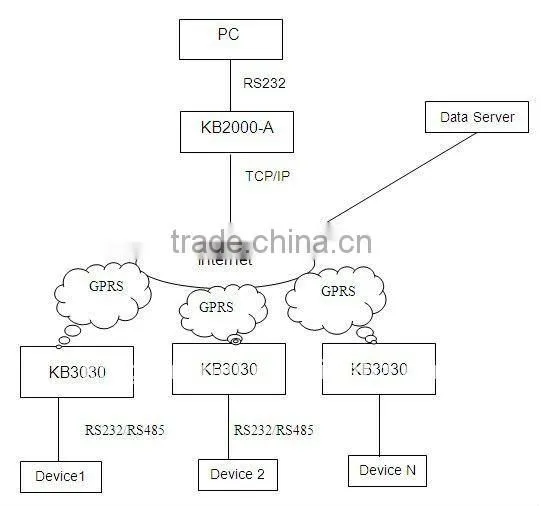

KB2000*KB3030
KB3030*KB3030

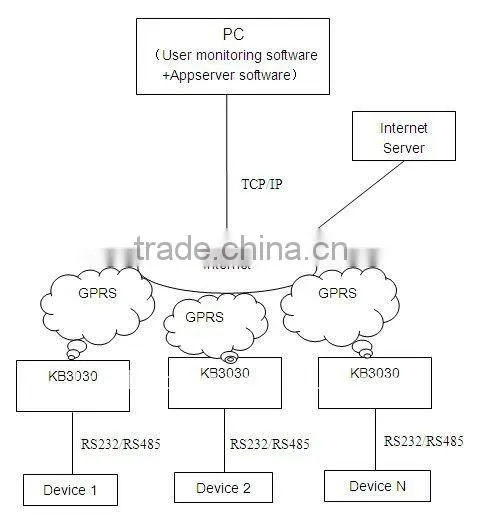

APPServer Software*KB3030
