Newest Alignment BGA Rework Station Dh-G200 With Vision System

Name: Newest Alignment BGA Rework Station Dh-G200 With Vision System
Brand: DINGHUA
SKU: 120912751
Availability: InStock

Newest Alignment BGA Rework Station Dh-G200 With Vision System thumbnail-1

Newest Alignment BGA Rework Station Dh-G200 With Vision System photo-1

US$ 2,200 - 4,200 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DINGHUA

Model Number:

DH-G200

Contact Supplier Request Quote Chat Now

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DINGHUA

Model Number DH-G200

Voltage 220V

Current 25A

Rated Capacity 5300W

Rated Duty Cycle 100%

Weight 60KG

Usage MotherboardXbox360/cell-phones BGA chip reworking

Certification CE ISO 9001 20008

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Welding motherboard repair equipment
Optical Laser alignment
3 independents heaters
HD touch screen and display screen

2013 Newest Alignment BGA rework station Dh-G600 with vision system:

Hot Selling Points:

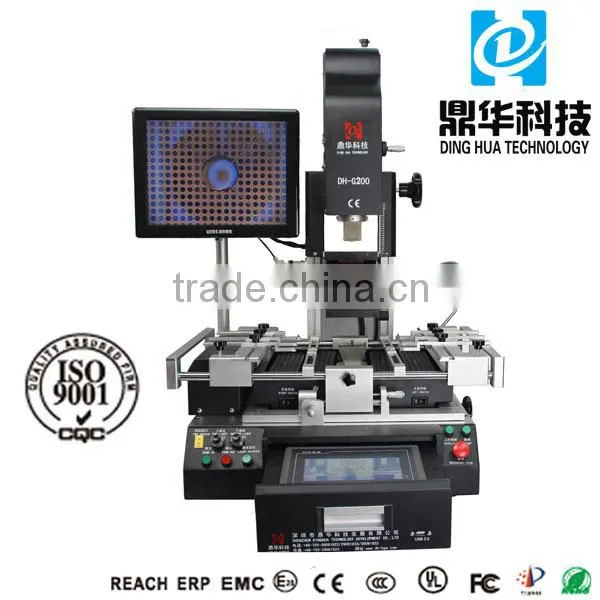

DH-G200 is a Optical Alignment BGA rework station.

DH-G200 is designed for repairing iphone, sumsung etc the high technology BGA chip set.

DH-G200 is designed with low cost, and can meet the target of the customer who needs the alignment machine.

Applications:

Complete range of rework applications in medium and large scale service centers

Mobile and radio systems devices repairment

Cellular phones, PDAs, handhelds, laptops, notebooks & motherboards repairment

LAN devices, network nodes and military communication equipment repairment

Portable medical equipment repairment

Dinghua DH-G200 technical details is as below:

Power supply	AC220V±10% 50/60Hz
Power	5300W
Top heater	Hot air 1200W
Bottom heater	Hot air 1200W, Infrared 2700W
Positioning	V-groove, PCB support can be adjusted in any direction with external universal fixture
Temperature control	K-sensor closed loop control, independent heating
Temp accuracy	±2 degrees
PCB size	Max 500400 mm Min 2222 mm
BGA chip	22-5050mm
Minimum chip spacing	0.15mm
External Temperature Sensor	1(optional)
NW	60KG

Dinghua DH-G200 main features as below:

Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
It uses precise K-type close circuit control and automatic temperature adjustment system, with temperature module to enable precision temperature control of ±2 deg C. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.

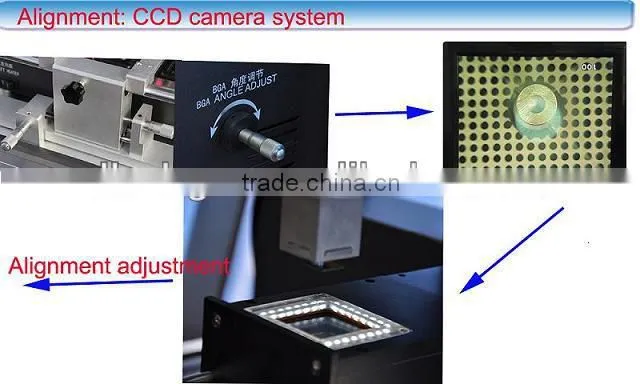

CCD camera system, V-groove PCB support for rapid. Using the linear slide, the X, Y, Z three axis are available for fine tuning or quick convenient accurate positioning, meet different PCB layout and positioning of different size of PCB.. convenience and accurate positioning that fits for all kinds of PCB board
Flexible and convenient removable fixture on the PCB board which protects and prevent damage to PCB. It can also adapt to rework various BGA packages.
Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement
Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface
There are 8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen
Accurate and precise temperature control
Powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
USB interface. Save the screenshot and connect with the mouse, and add the longer using time of touch screen.
Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
CE certification, with emergency switch and automatic power-off protection device when emergency happens
