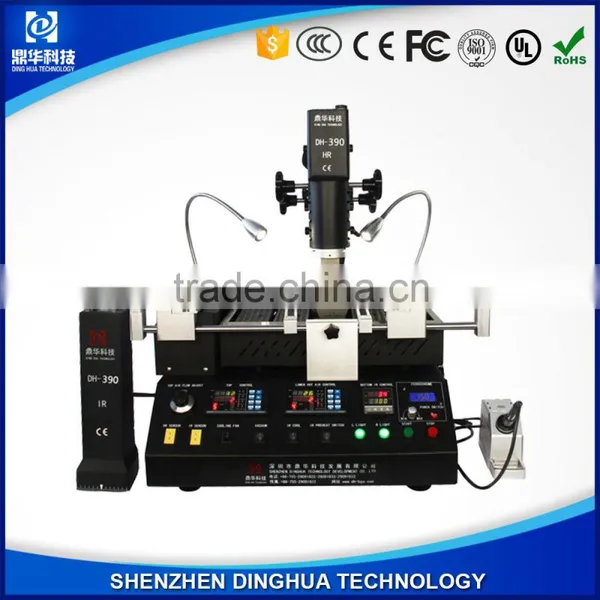

BGA Rework Station DH-390 With Two Upper Heater(Hot Air &Infrared)

Name: BGA Rework Station DH-390 With Two Upper Heater(Hot Air &Infrared)
Brand: Dinghua
SKU: 120911725

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

Dinghua

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name Dinghua

Model Number DH-390

Dimensions 56*53*59cm

Weight N.W32kg/G.W50kg

Usage Ipad/Iphone4/Xbox

Certification CE,ISO9001:2008

After-sales Service Provided Engineers available to service machinery overseas

Dinghua Manufacturer

-- Promote our machine, get big profit

-- You win, We win!

Dinghua Cost-effective Multi-function chip replacement machine bga rework station DH-390

DH-390 Details and Warranty:

Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)

DH-390 Specification:

Total Power	4800W / 4350W
Top heater	800W

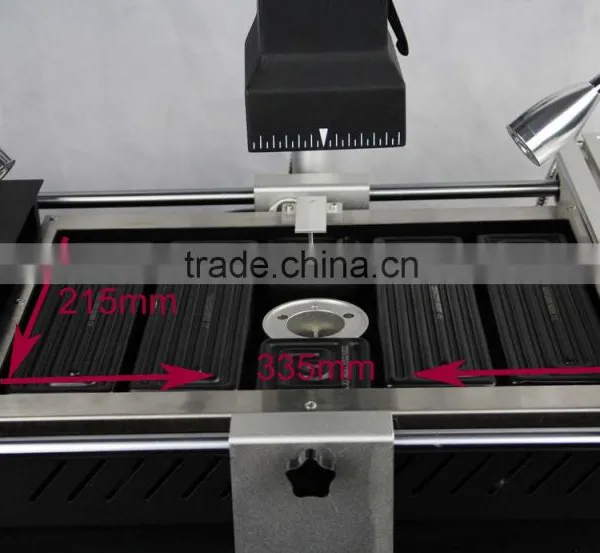

Bottom heater	2nd 1200W, 3rd IR heater 2700W
Digital Iron power	80W
Power	AC220V±10% 50Hz
Top head	Two top heads: hot air and infrared, easy replacement.
Top hot air speed	Can be adjusted by adjusting knob, prevent tiny bga from movement when heating.

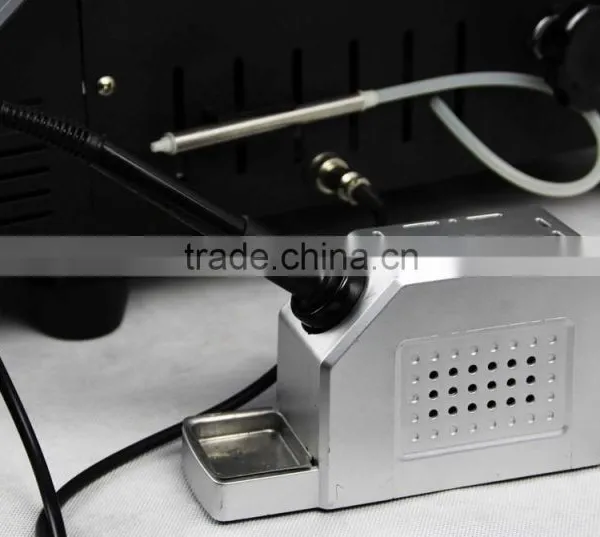

Cleaning tin	With digital soldering iron, for rapid clean residual tin after desoldering, prevent pcb and bga from oxidize

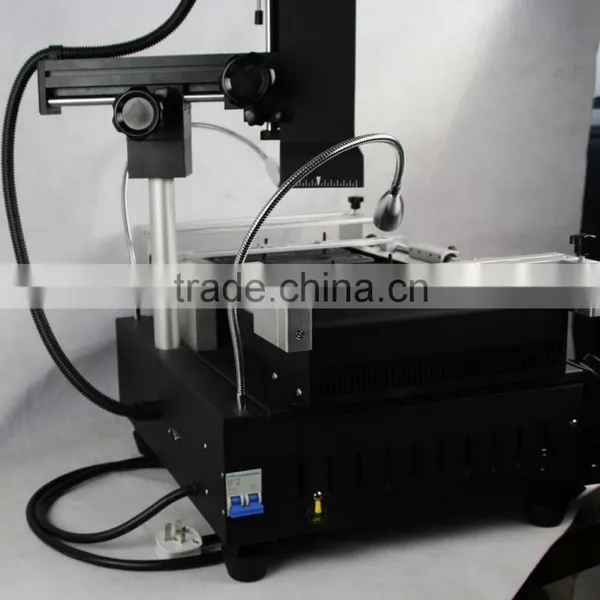

Top heater movement	Right/left, frontward/backward, rotate freely.
Lighting	Double shadowless LED lights, any angle adjusted freely

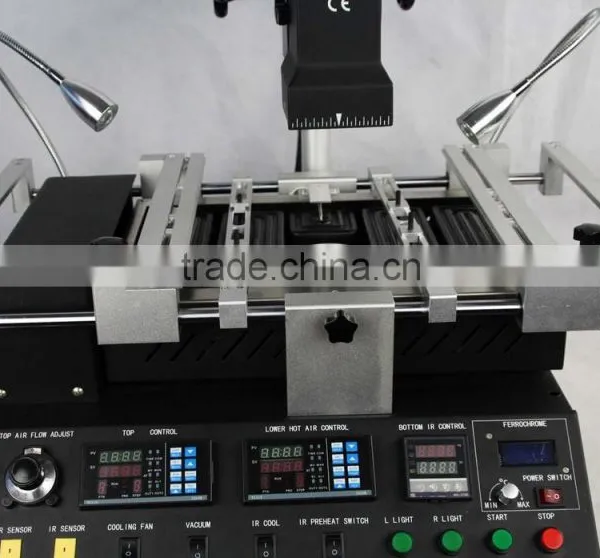

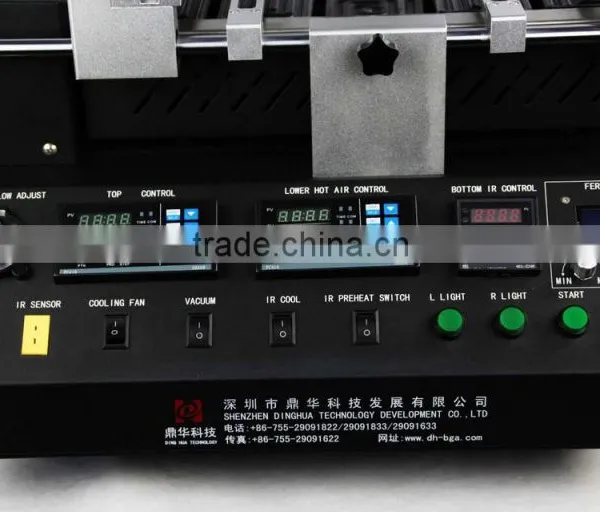

Operation mode	Digital panel meter
Storage	10 groups of temperature profiles.
Positioning	Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.
Temperature control	K sensor, close loop
Temp accuracy	±2℃
PCB size	Max 390×370 mm Min 22×22 mm
BGA chip	2x2 - 80x80 mm
Minimum chip spacing	0.15mm
External temper sensor	1pc
Dimensions	L560×W490×H580 mm
Net weight	32KG
