Product Application
China best supplier of equipment reworking---Dinghua, which specializes in developing&manufacturing BGA rework station that can repair laptop, web camer and navigator etc.
Main Features
1)Camera and high definition monitor, can view melting of solder balls clearly, more convenient for operator to temperature adjustment, correction and analysis.
2) With vacuum tube, pick up the bga chip conveniently after desoldering.
3)Any size of nozzle can be customized if need.
4)With USB 2.0 interface, can be connected with a computer or mouse, screenshot temperature curve or system update.
5) Real-time settings and actual temperature profile display can be used to analyzed and correct parameters.
6)External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
7)Adopt three heating zones, upper and low heater hot air, bottom heater is infrared preheating zone.
8)K type close loop control, temperature accuracy will be on ±2°C
9)High power cross flow cooling fan, prevent the PCB from deformation.
10)Sound hint system: there is voice reminder 5s-10s before the completion of heating, to get the operator prepared
11)ecurity measure: overheat guard and emergency stop function
Humanized design:
1.Upper heater can move up/down, front/back, rotate freely.
2.Lower heater can move up/down to keep best distance with pcb.
3.Strong sense of thermometer, temperature measurement more accurate.
4.PCB clamp (V-groove) with universal fixture, suitable for all kinds of BGA.
5.It can set 8 segments heating, massive storage of temperature profiles.
6.With different size of nozzles, easy replace and use, customization is available.
7.Colorful buttons in English and Chinese, easy recognize and use.
8.CE certification, automatic power-off protection device when emergency happens.

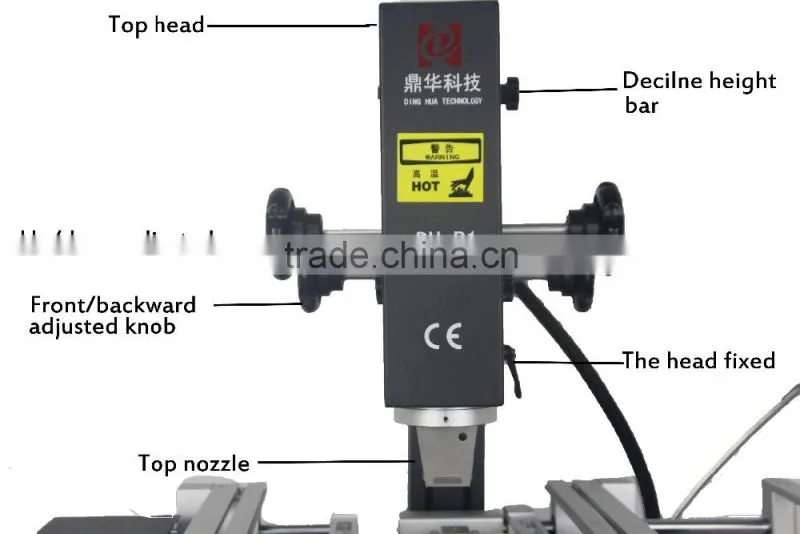

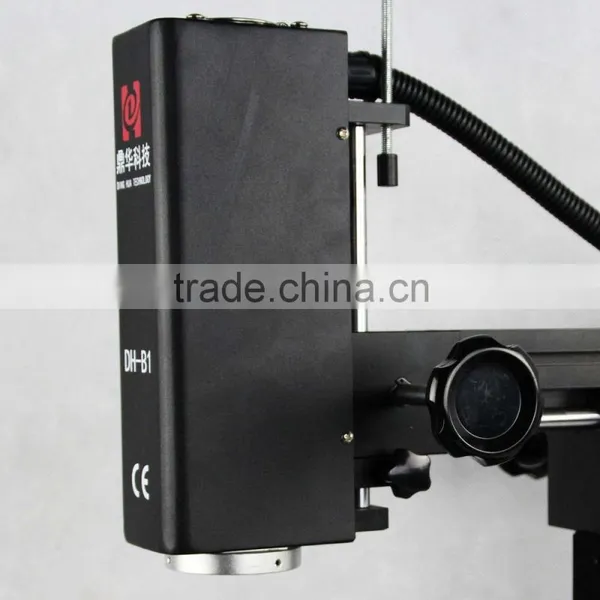

Name:Top head
1. Whole head can be rotated freely, and fixed on any positioning that if needed.
2. Top hot air heater with a nozzel chosen
3.Decline height bar make sure top nozzle never drop down on PCB boards.

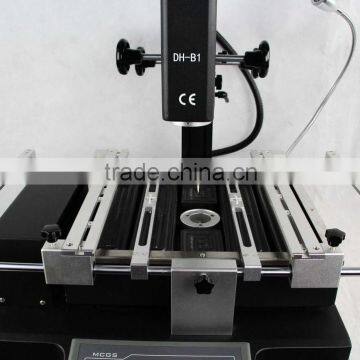

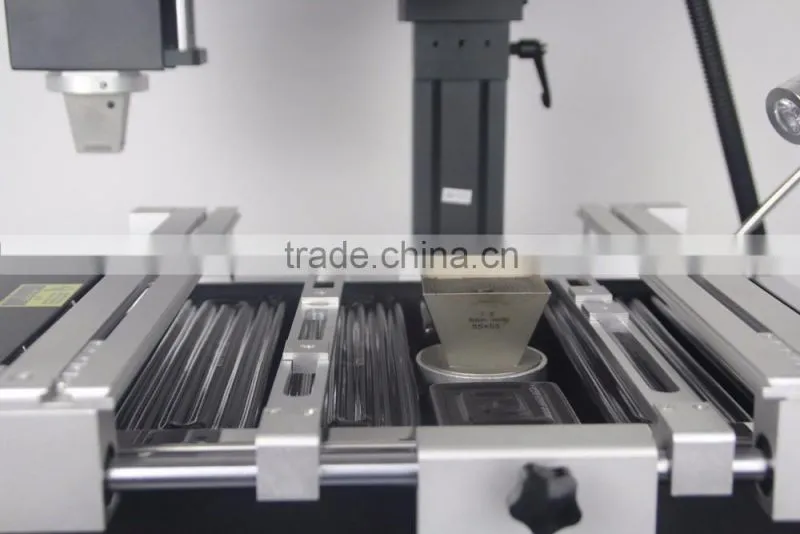

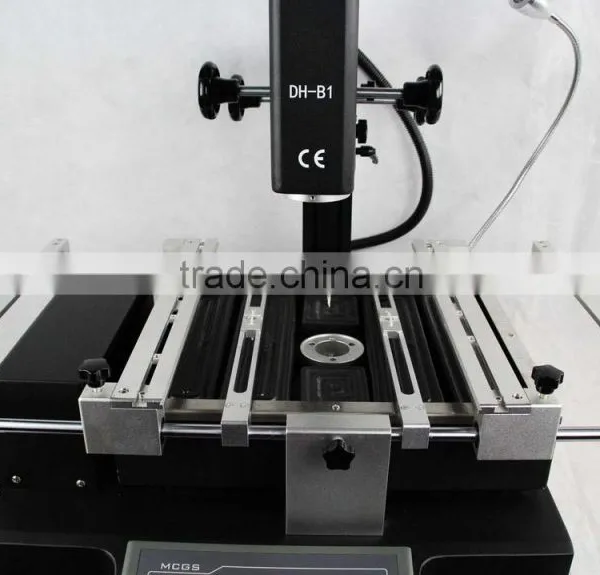

Name: Machine working table
1. With a lower nozzle that can be lift up or down.
2.Powerful IR heating board heats rapidly, make whole PCB heated evenly.
3.V-groove PCB bracket and umiversal fixture , both of them used for positioning quickly.

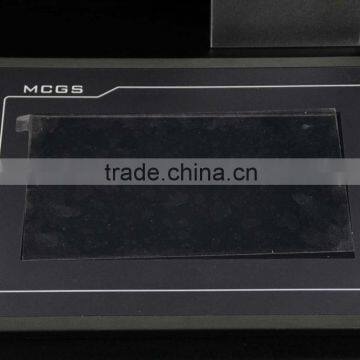

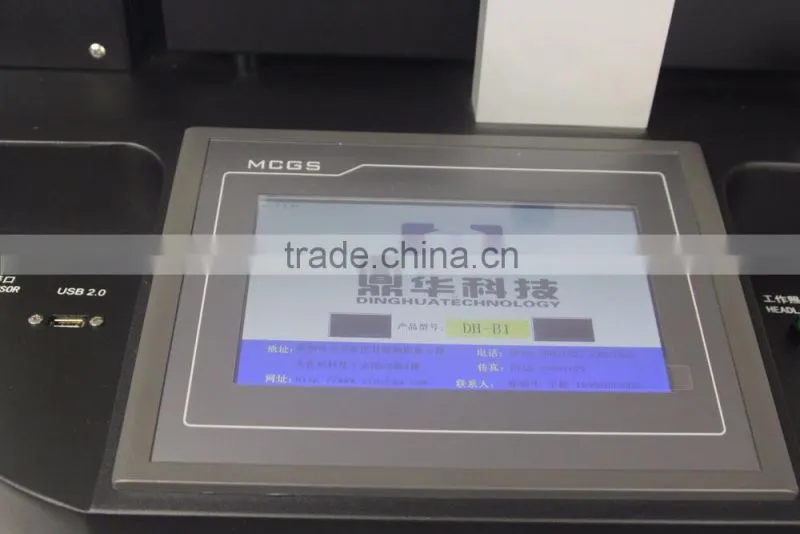

Name: Industrial PC with HD touch screen
1. Intelligent conversational interface, real-time dynamic state shown .
2. Setting constant and heating time for every sector temperature heating up.
3.Storing 5000 groups of temp profile that can be exported out or use again.

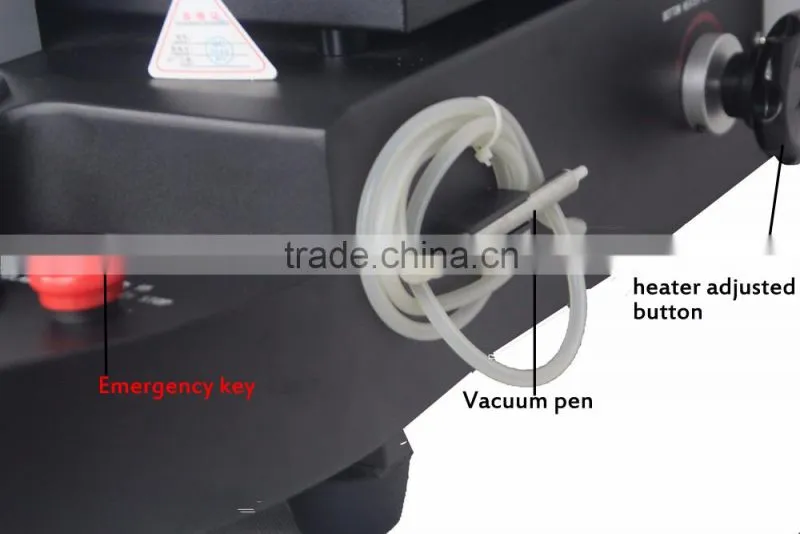

Name: Vacuum pen
1. Air pump buit in machine , vacuum pen and tube outside .
2. Soft and long tube , strongly sucking picking chip up easy.

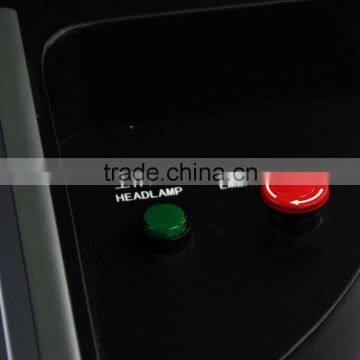

3.Emergency key provided
4.Lower hot air heater adjusted button
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas if needed.
