Dinghua Hot sale xbox 360 reballing kit bga replace machine
DH-5830

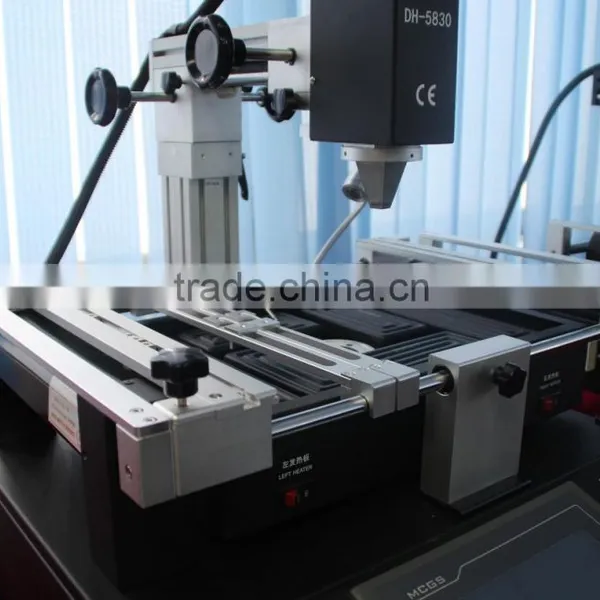

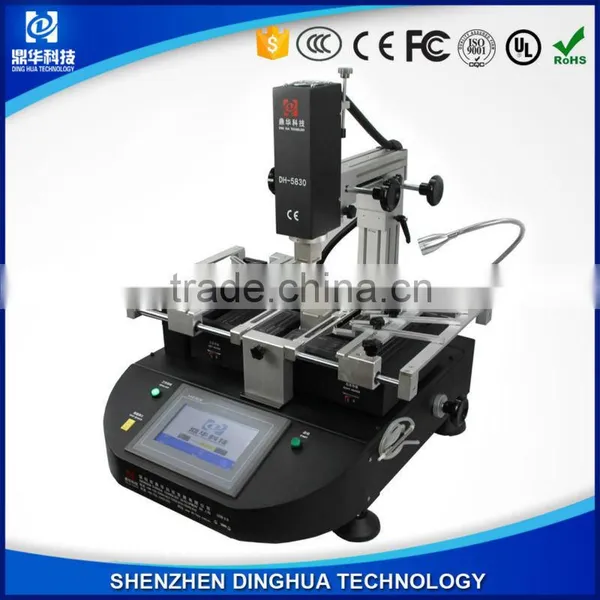

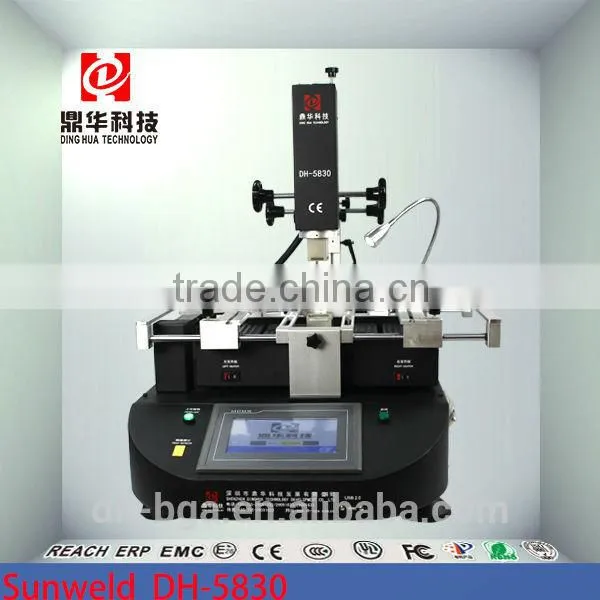

BGA rework station dinghua-5830 special for Motherboard Xbox360 / cell-phones BGA chip reworking :
Power |
4500W |
Top heater |
Hot air 800W |
|
Bottom heater Iron heater |
Hot air 1200W, Infrared 2400W 90w |
Power supply |
AC220V±10% 50/60Hz |
|
Dimension |
L535*W650*H600mm
|
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K type thermocouple, closed loop control, independent heating |
Temp accuracy |
±. degrees |
PCB size |
Max 355*335mm Min 50*50 mm |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
Net weight |
30kg |
Specifications:
Laser Assist position system,
Integrated high precisely digital solderingiron.
USB 2.0 connect, can be controlled by mouse.

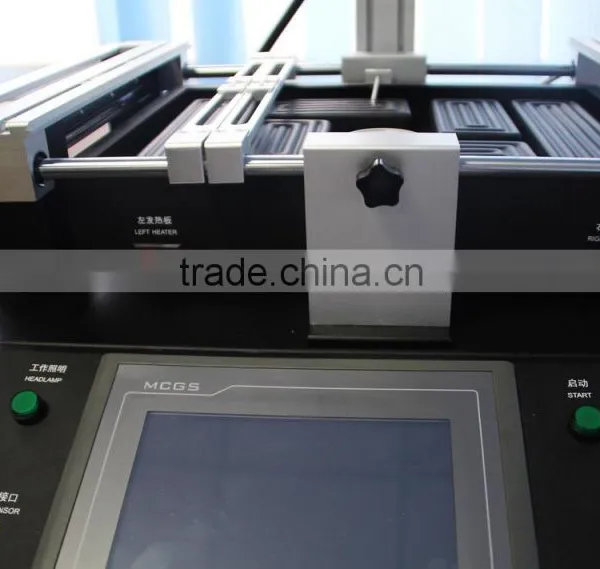

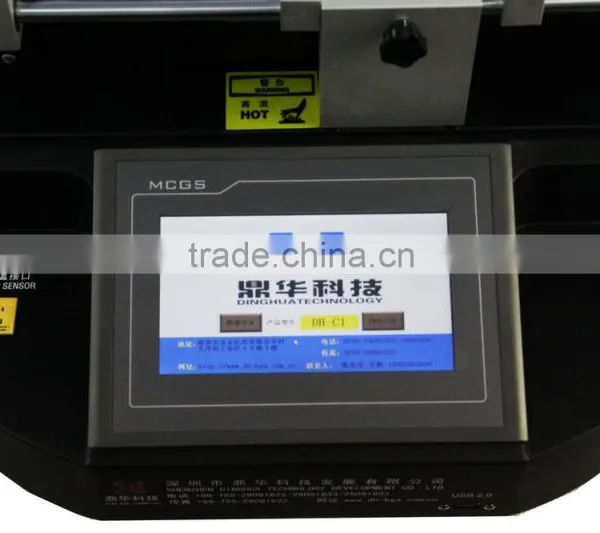

HD touch screen interface, PLC control.

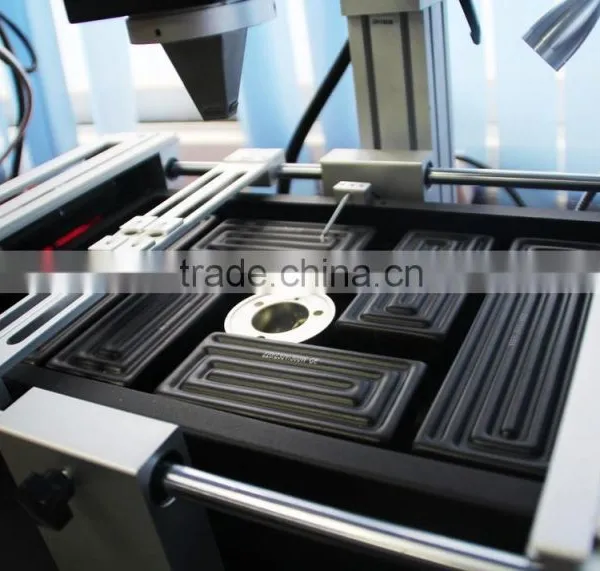

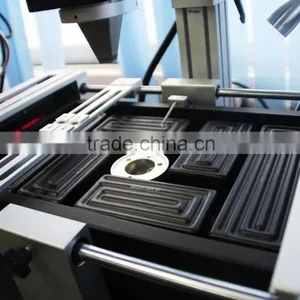

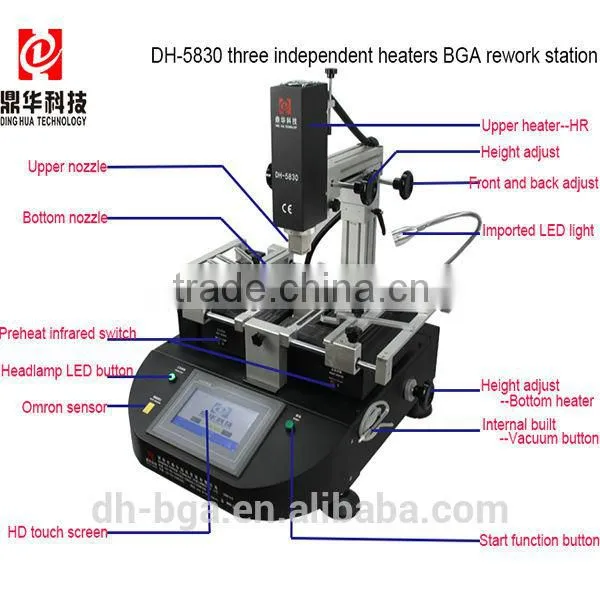

Three independent heatersall can set 8 segments heating, cooling and constanttemperature, saved temperature profile is unlimited. IR preheat area can be controlledaccording to PCB size
K-sensorcloseloopcontrolandautomatictemperaturecompensationsystem.Itcombineswithtemperaturemodule,whichenablestemperature accuracy to ±3°C
Moveable heater, easy to operate.
Hot air nozzles,360 degree rotation, easy to install and replace, customized is available.
V-groove PCB supportfor rapid, convenience and accurate positioning that fits for all kindsof PCB board
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it fromdeformation.
Sound hint system. There is an alarm before thecompletion of each desoldering andsoldering.
CE certification,with emergency switch and automatic power-off protection device whenemergency happens
Three years warranty(Two years longer than other companies), free life-long technicalsupport
Applications:
Complete range of rework applications in medium and large scale service centers
Mobile and radio systems devices repairment
Cellular phones, PDAs, handhelds, laptops, notebooks & motherboards repairment
LAN devices, network nodes and militarycommunication equipment repairment
Portable medical equipment repairment
Accessories:
Packing:
Factory:
CE and ISO9001 certificate:
Why choose us?
1, Well-equipped manufacturing facility.
2,Professionalism innovative R&D team, provide professional service for bga rework station solution.
3,Optimum performance,precision temperature control to ensure high rate of success for S&M. As we know, the performance of bga chip soldering and desoldering highly depends on the precise of the temperature. Our bga machine use PID control,the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature), but among the bga rework station industry, most of company just use the PID grab freqency is 30ms.
4,International quality standard range,all our product have got the CE, ISO9001,ROHS approval.
5,Competitive price. All our machine material select from world class brand (like Omega,SMC,CNB,GS, which ensure safety,convenient speedily operation.
6,Customized packaging and Fast delivery via Fedex, DHL, UPS, EMS, TNT and so on. Generally goods can be ready in 7 days after the receipt of the payment.
7,We supply 1 year warranty for this BGA rework station , in the first year, offer spare parts for free, and the heating colil is for three year warranty. Life long technical support.
Shipping:
DHL, FedEx, By air, By sea
The shipping cost depends on the total weight
Normally, it takes about 3 days to USA, 5 days to European countries. We can ship as your request and help you find the most cost efficient and fast way.
We will send you the tracking number as soon as delivery
Packing
All of our machine will packed carefully with standard plywooden box, to protect it from transport.
