2 independent heating zones / Practical/ manual operation with HD touch screen /DH-200/ BGA chip rework station machine
Specification for DH-200 BGA rework station :
Total Power |
2300W |
Top hot air heater |
450W |
Bottom diode heater |
1800W |
Power |
AC220V±10% 50Hz |
Lighting |
Taiwan led working light, any angle adjusted. |
Operation mode |
High definition touch screen, intelligent conversational interface, digital system setting |
Storage |
5000 groups |
Top heater movement |
Automatic up / down with button, manual Right/left, |
Bottom diode heating |
Manual right / left movement. |
Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control |
K sensor, close loop |
Temp accuracy |
±2℃ |
PCB size |
Max 170×220 mm Min 22×22 mm |
BGA chip |
2x2 mm - 80x80 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
L540*W310*H500mm |
Net weight |
16KG |

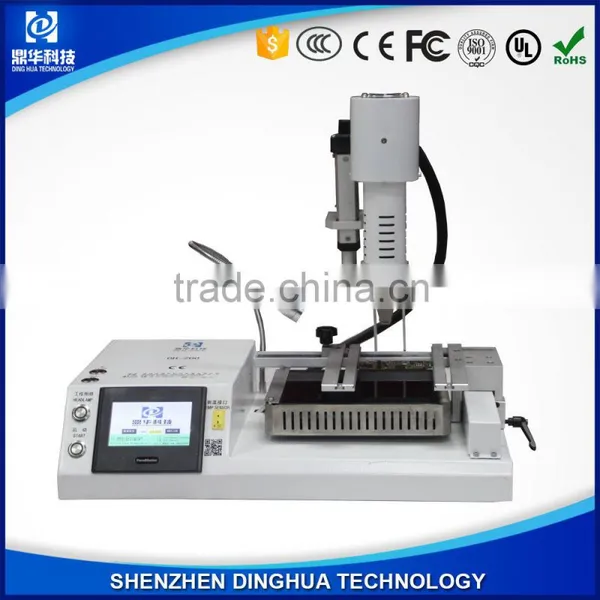

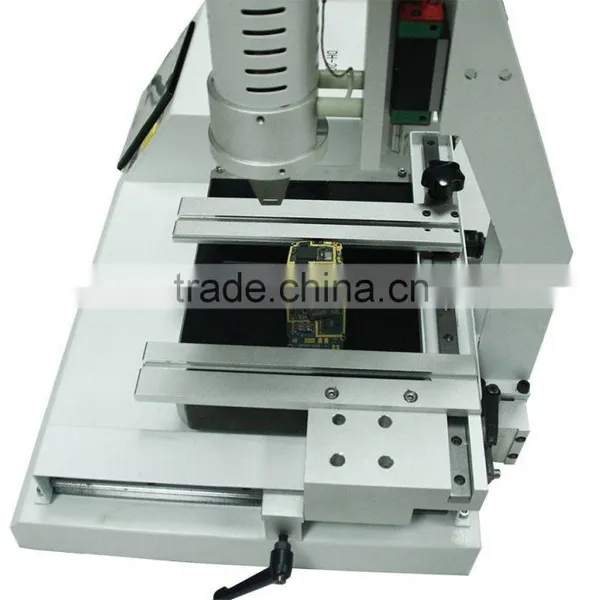

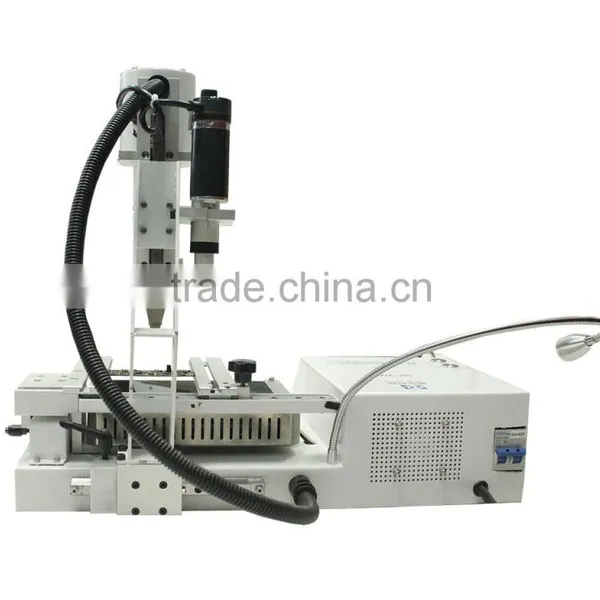

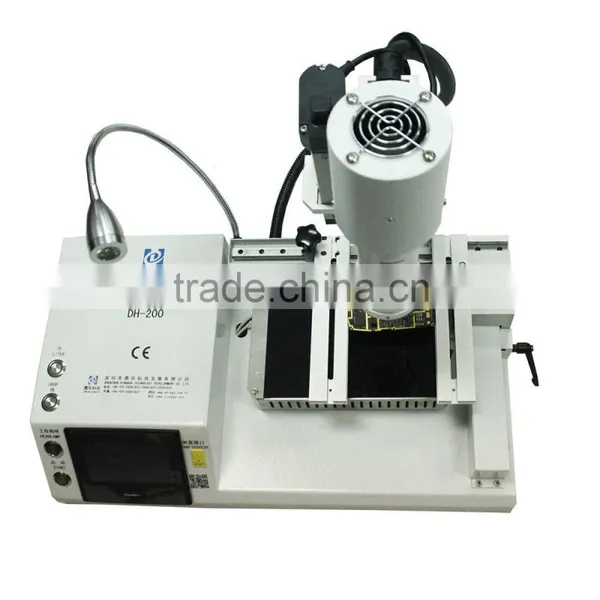

Pictures of DH-200 BGA rework station
Features and advantage of DH-200 bga rework station
1.Two independent heaters all can set 8 segments heating, cooling and constant temperature, save up to ten temperature profiles. IR preheat area can be controlled according to PCB size
2.K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
3. Moveable heater, easy to operate.
4. Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
5. V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
6. Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
7. Sound hint system. There is an alarm before the completion of each desoldering and soldering.
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,please kindly tell us.
1. Your inquiry related to our products or prices will be replied within 24hours.
2. R*D team can meet all your special requests.
3. Customized can be OK.
4. Delivery on time.
5. Offer premium after-sales service. offering installation and use guidance.
6. Welcome to visit our factory, we can arrange the pick up and hotel.
c
Our customer
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guidance that show you how to use machine. Very easy to use it.D
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5) You are a trade company or a manufacturer?
We are a manufacture, with our own skilled R&D department.
6) If i want to visit your factory, will you arrange the pick up and hotel?
Of course, we can arrange everything! only 20 minutes reach Shenzhen airport.
why choose us?
1. We are specialized in BGA rework station,automatic soldring robot, automatic screw locking machine ect more than 6 years,
2. Cooperating with HUAWEI, GREE, SAMSUNG, LG etc well-known brand company.
3. Manufacturer with skilled-engineers.
4. The core components, with premium quality materials, imported from Japan and Germany.
5. Offer high quality before and after-sales service.
6. Delivery on time for decent order.
7. 3 years warranty, the first years for free warranty, the second and third year receive the parts of cost.
8. With CE, ROHS, UL certification approved!
1. Before delivery, the machine will be aging test for 3 days.
2. 3 years warranty. The first year free warranty, the second and third year receive the parts of cost.
3. 3 years warranty for the hearting wire.
