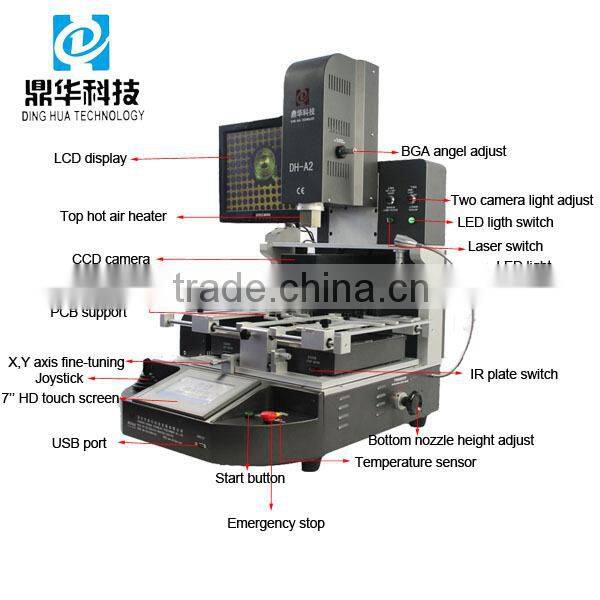

Dinghua DH-A2 CCD camera system BGA Rework Station For SP3 repairing VS zm-6200
>>>Technical parameter of Dinghua DH-A2 Automatic laser CCD Camera BGA Rework Station
Product name | Dinghua DH-A2 Automatic CCD Camera/laser/HD display BGA welding machine |
| Voltage | AC220V±10% 50/60Hz |
| Power | 5200W |
| Top heater | Hot air 1200W |
| Bottom heater | Hot air 1200W, Infrared 3900W |
| Positioning | V groove, PCB support can be adjusted in any direction with universal fixture |
| Temperature control | K sensor, closed loop control |
| Temp accuracy | ±2°C |
| PCB size | Max 500x400mm, Min 22x22mm |
| minimum chip spacing | 0.15mm |
| BGA chip | 2*2-80*80mm |
| External Temperature Sensor | 1pcs (optional) |
| Machine dimension | 60 x75 x85 cm |
| N.W. | 98 kg |
| Accessories | -1 piece user guide -1 piece brush -1 piece temperature sensor - 5 pcs hot air nozzle: top nozzle 3pc(31x31mm,38x38mm,41x41mm), Bottom nozzle 2pcs (34x34mm,55x55mm)PS: Hot air nozzle size can be customized according to your chip size -1 piece vacuum pen -5 pcs vacuum sucker -6 pcs universal fixture -6 pcs plug knob -6 pcs supporting screw |
>>> Advantages of Dinghua DH-A2 CCD camera system BGA Rework Station For SP3 repairing VS zm-6200
1. High definition touch screen, PLC control, can save multiple group profile. Show the real-time set and measured temperature with instant temperature curve analysis function.
2. To ensure the heating effect and placement accuracy, the heating head and placement head are independent control. Adopt linear slide which makes X,Y,Z axis all can do micro adjust or rapid positioning; Instead of moving the PCB after mounting, we just need to move the upper heating head to heat directly to ensure the welding effect, placement accuracy.
3. Three independent heaters. Hot air upper and bottom heater. Infrared preheat bottom. Heating time, temperature and curve all can be displayed on touch screen.
4. K-type thermocouple (closed loop), PID parameter self-setting system automatic and temperature adjustment system with PLC, temperature precision within ±1 degree.
5. V-groove PCB can be adjusted in any direction with external universal fixture, suitable for all kinds of BGA repair.
6. Flexible and removable universal fixture protects the PCB, prevents PCB components damage and deformation and adapt to all kinds of BGA size
7. Offer all kinds of hot-air nozzle, with 360 degree rotation; easy to install and change, customized is available.
8. High-definition CCD version system, two-tune, enlarge, micro-adjustment, automatic focusing and remediation equipped with color resolution and brightness adjustment auto device and can adjust the definition auto automatic or manual.
9. The X, Y axis and R angle with micrometer adjust, precise positioning, alignment accuracy within ±0.01MM. High-definition LCD monitors.
10. 8 level up/down + 8 level constant temperature control, save multiple groups profile. We can analyze, set and calibrate the temperature parameters curve on the touch screen at any time.
11. Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start automatically or manually after vertical wind stopped heating to ensure the welding effect.
12. Internal vacuum pump, Φ angle 60° rotation, Micrometer precision to mount suction nozzle by fine tuning without air.
13. CE certification,with emergency switch and automatic power-off protection device when emergency happens.
>>> Details of Dinghua DH-A2 Automatic laser CCD Camera BGA rework station.

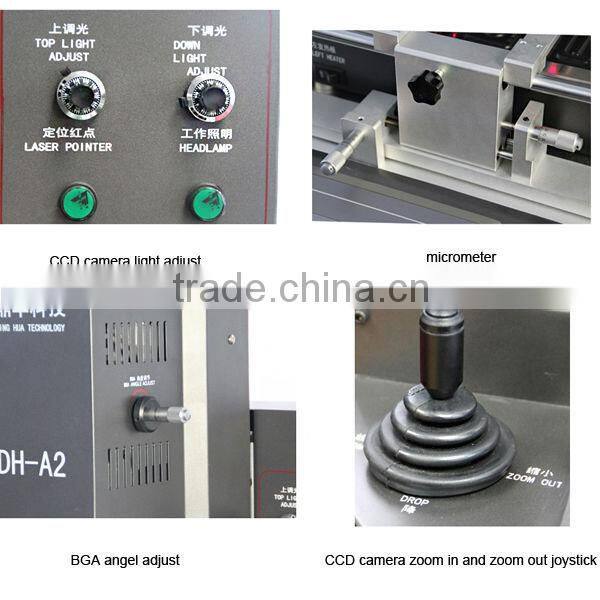

>>>Humanized design of Dinghua DH-A2 CCD camera system BGA Rework Station For SP3 repairing VS zm-6200
- Upper heater can move up/down, rotate freely
- Strong sense of thermometer, temperature measurement more accurate
- PCB clamp (V-groove) with universal fixture, suitable for all kinds of BGA.
- It can set 8 segments heating, and store 10 groups temperature profile
- Taiwan led working light.
- Colorful buttons in English and Chinese, easy recognize and use
- CE certification, with emergency switch and automatic power-off protection device when emergency happens
