3900mm Cylinder Vat Former Tissue Paper Making Machine/Toilet Paper Machine

3900mm Cylinder Vat Former Tissue Paper Making Machine/Toilet Paper Machine thumbnail-1
3900mm Cylinder Vat Former Tissue Paper Making Machine/Toilet Paper Machine photo-1
US$ 150,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, tissue paper machine
Processing Type:
Other, Cylinder vat former
Contact Supplier Request Quote Chat Now
Shandong Xinhe Paper-Making Engineering Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port or tianjin port or any other main ports in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, tissue paper machine
Processing Type Other, Cylinder vat former
Place of Origin Shandong, China
Brand Name XINHE
Model Number 3900mm
Voltage 380V/440V/550V
Power(W) to be confirmed
Dimension(L*W*H) to be confirmed
Weight to be confirmed
Certification Other, SGS,CE,ASME,ISO9000
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Cylinder Tissue Machine

The ECTM Cylinder Former tissue machines family, combining the single-layer pressurized vat former, the cylinder mould and the cast iron Yankee, are designed to produce facial tissue, toilet tissue, and napkins tissue.



Main Technical Data :

Trimmed paper width 3900mm
Paper product tissue paper,household paper etc
Basis weight 13-28gsm
Capacity 11t/d
Working Speed 180-220m/min
Furnish NBKP,LBKP,Bagasse pulp



Features of ECTM machine

1.Min. capacity 2 to 3 tons/day.

2.Low investment for you to start in tissue production.

3.Several machines can be installed in the same building.

4.Quick delivery and installation time.

5.Applied for various materials, such as virgin pulp, bamboo pulp, bagasse, recycled paper and de-inked pulp, etc.

6.Supplied with the accessories using first class components

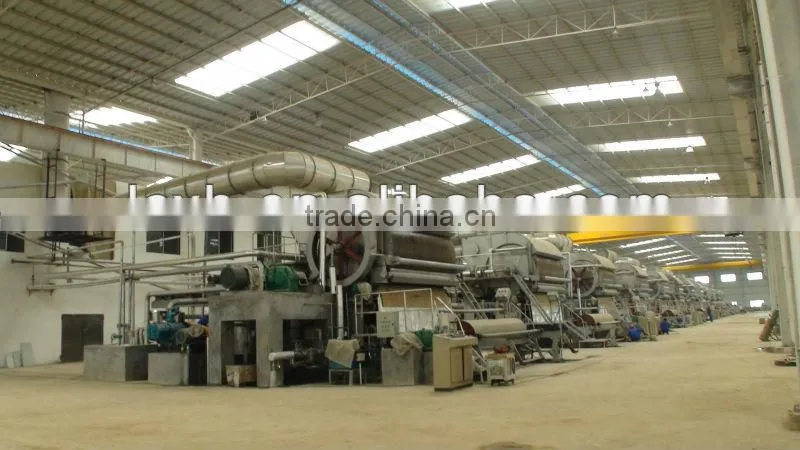

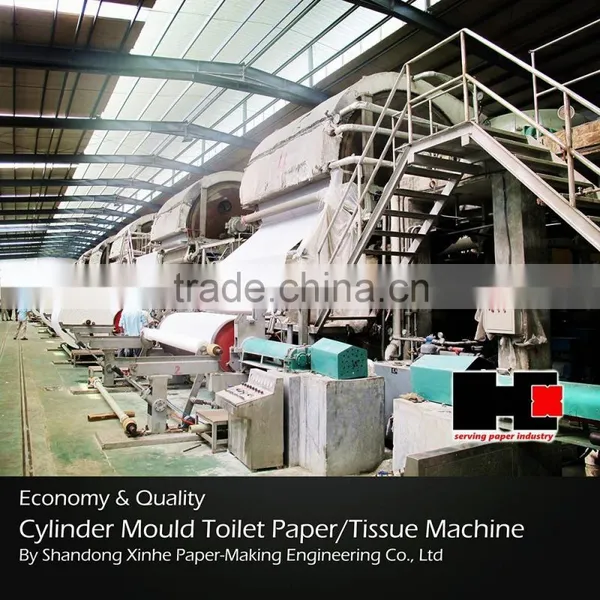

Pictures for ECTM machine 3900mm Cylinder Vat Former Tissue Paper Making Machine/Toilet Paper Machine

Turn-key Projects and Auxiliary Systems

We can integrate the Tissue Machine with a very deep experience in stock preparation supplying projects on the Turn-Key basis.



The Auxiliary systems that could be included in the projects are:

  • Slitter Rewinder
  • Approach Flow System
  • Steam and Condensate System
  • Vacuum System
  • Compressed Air System
  • Overhead Cranes
  • Electrical Control
  • DCS and QCS
  • Fiber Recovery System
  • Water Treatment System
  • Chemical Dosing System

Stock Preparation including:

  • Deinking Line
  • OCC Line
  • Virgin Pulp Line
  • Broke Line

Our Services

1.Customized projects and complete production lines designed according to customer needs.

2.Modification of existing machines with solutions to satisfy customer needs.



After-sale Service

1.The machine will be fully pre-erected at XINHE workshop with complete on-mahine pre-piping in order to minimize mill site erection timing.

2.The machine can be supplied with the accessories using first class components.

3.We shall provide the general drawing, foundation drawing and layout drawing after receiving the advance payment.

4.We have the professional installation team to provide erection/or erection supervision, commissioning, test-run and training for customer. The customer shall provide international flight ticket, local transportation vehicle, food, hotel accommodations and salary for our engineers.

5.Performance and Mechanical Guarantee shall be provided for 12 months from the successful commissioning or 18 months from the date of Bill of Lading.



Company Information

3900mm Cylinder Vat Former Tissue Paper Making Machine/Toilet Paper MachineXINHE is a China based leading project engineering company committed to provide project design, complete production lines, machine rebuild solutions and turn-key projects for the Pulp and Paper industry worldwide.

XINHE  cooperated with Italian world famous paper&pulp leading company Comer S.P.A. for 2 years,and introduced the most advance Crescent Former and Steel Yankee technology,now we have built a Steel Yankee worshop for mass production of Steel Yankee.



Generally,we need you to supply us the following data for our quotation:



Paper grade
Basis weight, min.   g/m2
Basis weight, max.   g/m2
Anchor grammage   g/m2
Paper width, at pope reel   mm
Paper trimmed width   mm
Production capacity   tons/day
TM operating speed, max.   m/min
TM design speed   m/min
Creping   %
Project located country/city
Raw materials (Furnish) NBKP Long Fiber Pulp %
  LBKP Short Fiber Pulp %
  Sorted Office Paper %
  Sorted White Ledger %



For more information,please contact me.
