China Highest Speed 1500m/min Crescent Former Tissue Paper Making Machine
Foreign Customers Reference
1. One 2850mm Crescent Former 20t/d Tissue Paper Production Line for Iran customer,raw material:virgin pulp
2. One 2850mm Crescent Former 20t/d Tissue Paper Production Line for Uzbekistan,raw material:waste recycle & virgin pulp
3. One 2850mm Crescent Former 20t/d Tissue Paper Produciton Line for Algeria,raw material:waste paper.
Paper machine main parameters:
| Paper product | facial tissue,napkin tissue,toilet tissue etc |
| Basis weight | 13-26gsm |
| Trimme paper width | 2850mm |
| Working speed | 1500m/min |
| Driving speed | 1600m/min |
| Dynamic balance speed | 1800m/min |
| Transmission | AC frequency sectional drive |
| Max. roll diameter | 1800mm |
| Total power | 380-430kw |
| Wire width | 3046mm |
| Felt width | 3140mm |
| Nominal capacity | 60-100t/d |
| Dimension | 23000*10000*7800mm |

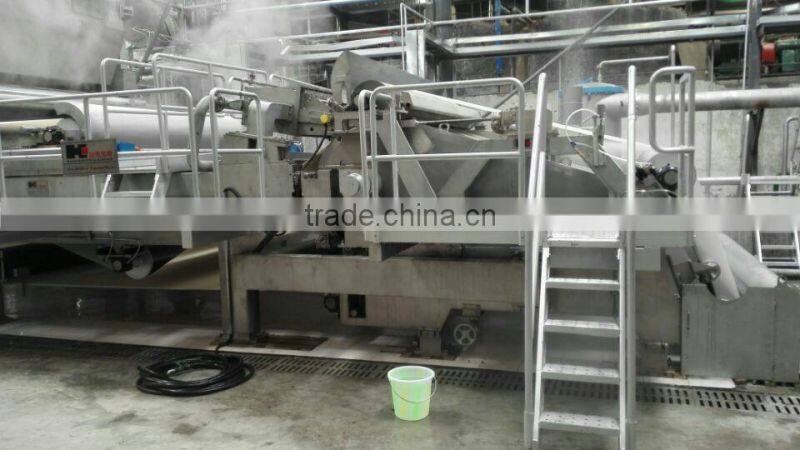

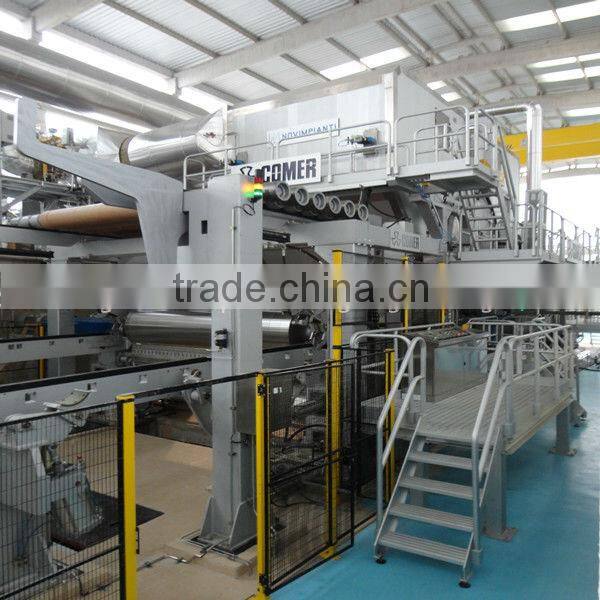

Pictures for CTM machine
Headbox

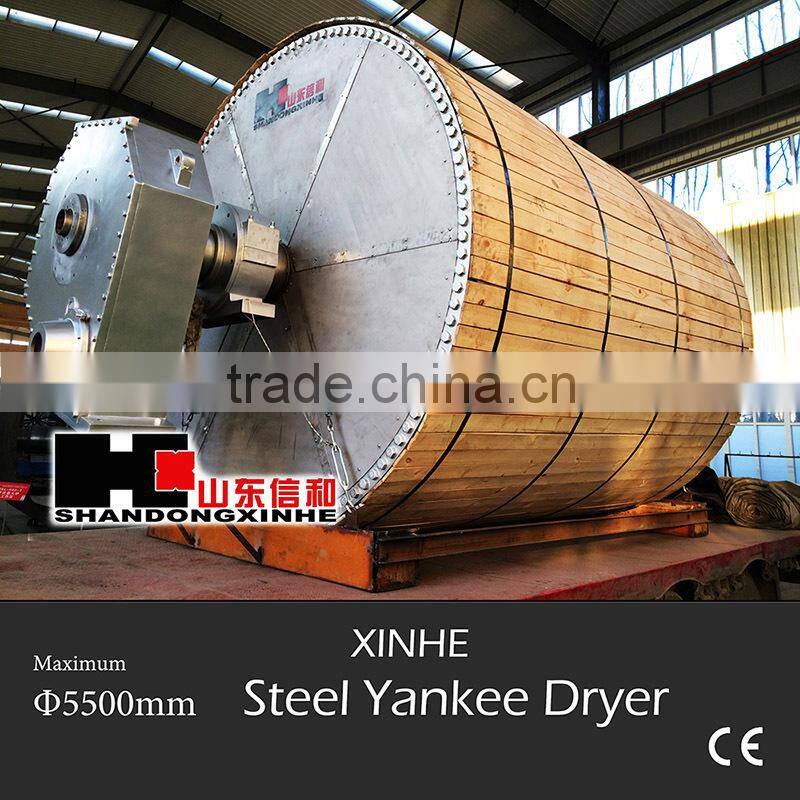

Yankee
Reel
Turn-key Projects and Auxiliary Systems
We can integrate the Tissue Machine with a very deep experience in stock preparation supplying projects on the Turn-Key basis.
The Auxiliary systems that could be included in the projects are:
- Slitter Rewinder
- Approach Flow System
- Steam and Condensate System
- Vacuum System
- Compressed Air System
- Overhead Cranes
- Electrical Control
- DCS and QCS
- Fiber Recovery System
- Water Treatment System
- Chemical Dosing System

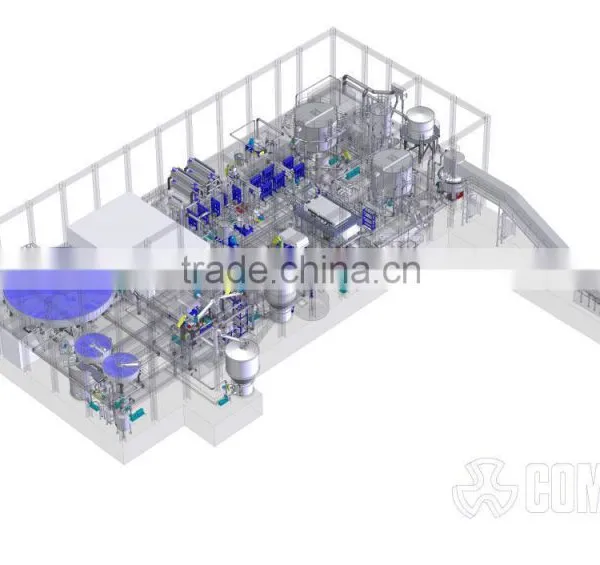

Stock Preparation including:
- Deinking Line
- OCC Line
- Virgin Pulp Line
- Broke Line
Our Services
1.Customized projects and complete production lines designed according to customer needs.
2.Modification of existing machines with solutions to satisfy customer needs.
After-sale Service
1.The machine will be fully pre-erected at XINHE workshop with complete on-mahine pre-piping in order to minimize mill site erection timing.
2.The machine can be supplied with the accessories using first class components.
3.We shall provide the G.A. drawing, foundation drawing and layout drawing after receiving the advance payment.
4.We have the professional installation team to provide erection/or erection supervision, commissioning, test-run and training for customer. The customer shall provide international flight ticket, local transportation vehicle, food, hotel accommodations and salary for our engineers.
5.Performance and Mechanical Guarantee shall be provided for 1 year from the successful commissioning or 1.5 years from the date of Bill of Lading.
5. Company Information
XINHE is a China based leading project engineering company committed to provide project design, complete equipment lines, machine rebuild solutions and turn-key projects for the Pulp and Paper industry worldwide.Thanks to the capability of our engineers to handle a project from the design to the erection and commissioning of the machines and equipments, XINHE became one of the few companies of this sector in China able to provide turn-key projects.
Headquartered in Liaocheng China, XINHE has one engineering office and two manufacturing sites located in different cities of China.
6. Company Recent News(Till May,2015):
b.We will supply a 3200-160 spool basepaper Machine for Taiwan Rongcheng Company, a 2700/220 Coated CardBoard Paper Machine for IRAN customer,a 3940/800 high speed and energy saving crescent former tissue paper making machine for China biggest Sichuan LiangMianZhen company etc in domestic market.
Pre-assembly Work in Our Workshop
For more information,please contact me.
