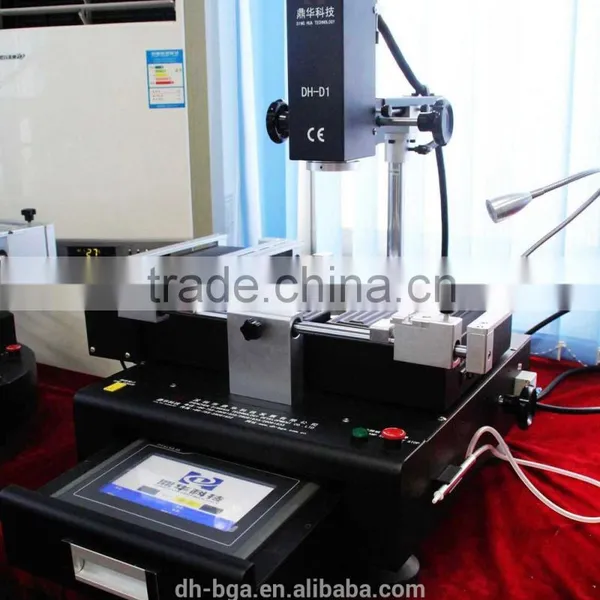

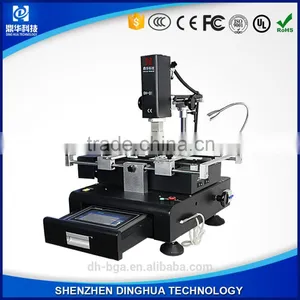

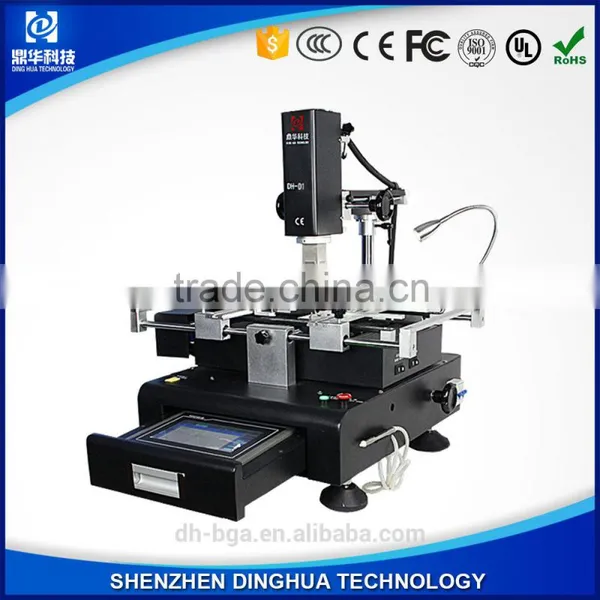

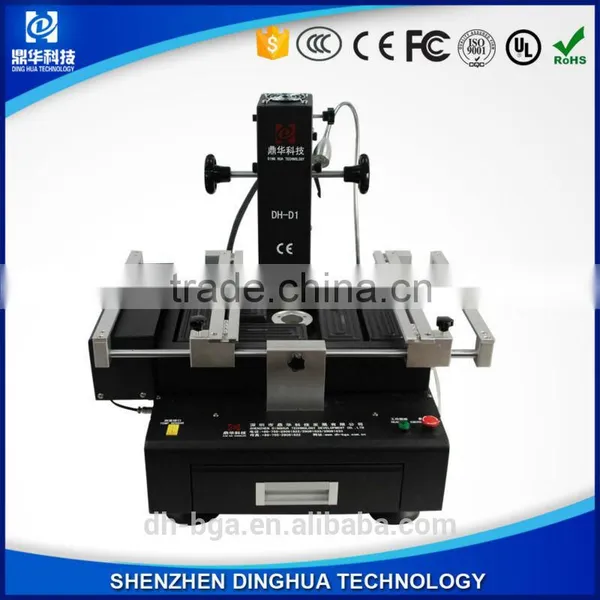

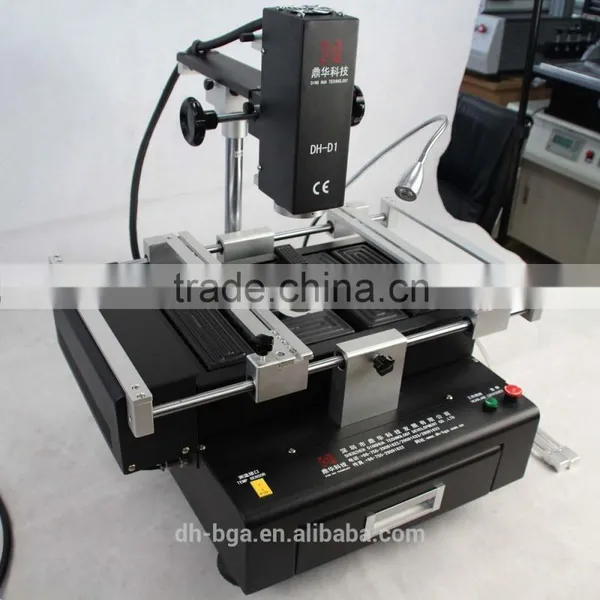

Bga reflow machine with
3 heater zone digital panel meter
bga repair machine soldering machine DH-380
What is the specification of DH-380?
Total Power |
4400W |
Top heater |
800W |
Bottom heater |
2nd 1200W, 3rd IR heater 2400W |
Power |
AC220V±10% 50Hz |
Lighting |
Taiwan led working light, any angle adjusted. |
Operation mode |
Drawer style HD touch screen, intelligent conversational interface, digital system setting |
Storage |
50000 groups |
Top heater movement |
Right/left, frontward/backward, rotate freely. |
Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control |
K sensor, close loop |
Temp accuracy |
±2℃ |
PCB size |
Max 370×370 mm Min 22×22 mm |
BGA chip |
2x2 - 80x80 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
L540×W480×H540 mm |
Net weight |
31KG |

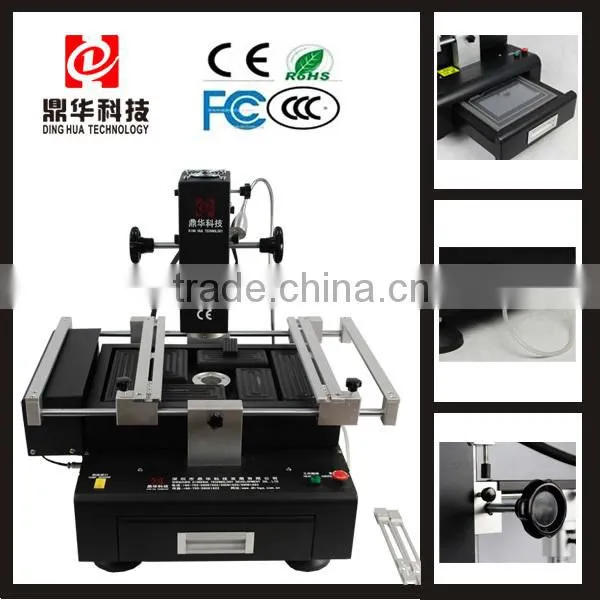

| Detail picture: |
|
|
| Movable pcb table + universal fixtures, support all kinds of pcb. |
Strong sense of thermometer: temperature measurement more accurate, the maximum guarantee welding quality |
|
|

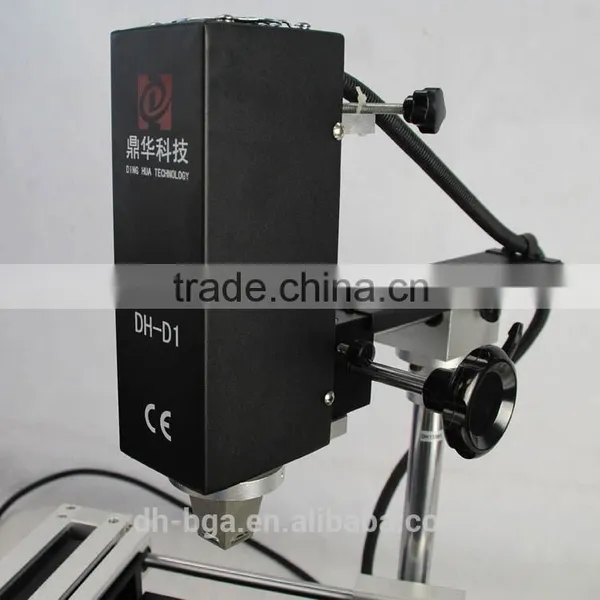

| Top hot air heater is turbine processing, presenting the whirlwind is more balance than ordinary wind | 7" touch screen controller, window OS interface in English + PLC control + PID self adjust system. |
|
|

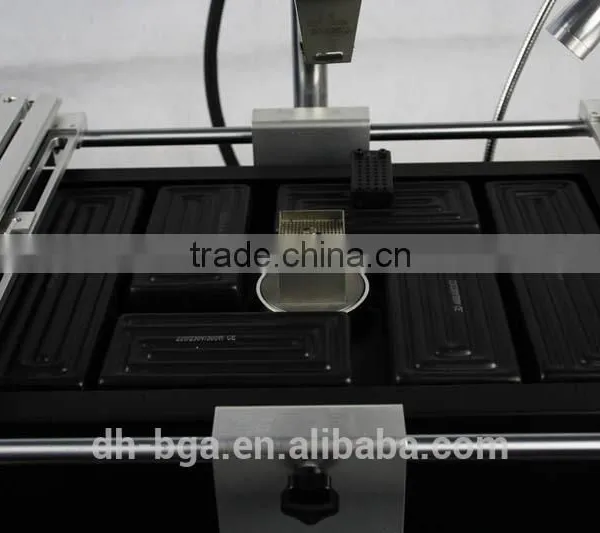

| Taiwan large size ceramic infrared plate, preheating for PCB, prevent it from deformation. |
Strong sense of thermometer: temperature measurement more accurate, the maximum guarantee welding quality |
|
|
| External temperature sensor, enables temperature monitoring and accurate analysis of real time temperature profile. | Taiwan led working light, polish stainless steel material, can be adjusted in any angle. |
| Features: |
1.Drawer type design operation screen. It can be back to the machine when you don’t use it, protect the screen from damage, and reduce occupied space.
2.Embedded industrial PC, HD touch screen conversational interface, digital system setting, human-machine interface operation, multi-functional integrated control, human structure design, optional numbers storage, apply temperature curve freely. With multi-functions: “keep same temperature”, “instant curve analysis” and “voice warning before heating finish”. Real-time actual temperature and temperature curve setting can also be used to analyze and correct the curve if necessary.
3.High precise k-type thermocouple closed-loop control and PID automatic temperature compensation system, with temperature module and intelligent control unit to enable precise temperature deviation on ±2℃. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
4.Intelligent positioning, PCBA can be adjusted in X, Y direction with “5 point support” + V-groove pcb bracket + universal fixtures, rapidly and accurately positioning for all kinds of pcb.
5.Movable and flexible universal fixture prevent pcb from damaged on fringe component, suitable for all kinds of pcb repairing.
6.With different size of magnet nozzles, easy replace and install, rotate freely 360°, any size can be custom if need. Titanium alloy material, never deformation, never rusty
7.Three heating zones can independently heat and they are multiple temperature control, which can ensure best integration of different temperature areas. Heating temperature, time, slope, cooling and vacuum can all be set in touch screen conversational interface. Meanwhile PID calculation to control heating process more accurate and more stable.
8.6-8 segments in one temperature profile can be set for top heating and lower heating(up to 16 segments). 50,000 groups of temperature curves can be stored, which can number, modification and apply at any time according to different BGA. Curve analysis, setting and adjustment are also available on touch screen.
9.Powerful cross flow fan, fast cooling for PCB and machine. With vacuum sucker, to pick up bga chip conveniently after desoldering.
10.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time. After heating, cooling fan will work automatic, when temperature cool down to room temperature ( <45℃ ), cooling system will stop automatic to prevent the heater from aging.
11.CE certification approval. Overheating guard
| Certification: |
| Packing: |
| Why our machine more accurate? |
Our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature, but for most of BGA rework station from other companies, their PID grab frequency is 30ms, this is a big difference between 10ms and 30ms, that's why our machine is more accurate.
