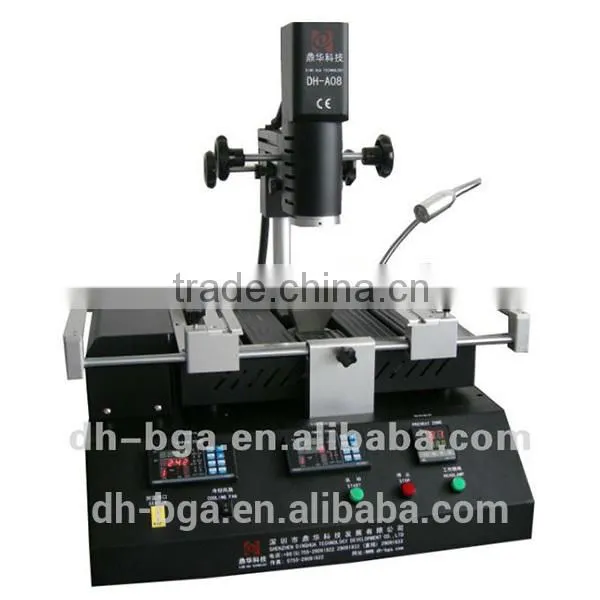

Help CenterDinghua Factory Direct Sale Mainboard Chip Xbox 360 Vga Bga Repair,bga Soldering Tool DH-A08
Related Products
-
Dinghua PCB Repair Machine Rework Station Bga Repair Station DH- A09LUS$ 400 - 899MOQ: 1 Set -
Reballing Machine Bga Soldering Station Temperature Senor Motherboard Repair System DH-C1US$ 400 - 1,100MOQ: 1 Set
-
Dinghua Auto Motherboard Rework Station Playstation Ps2 Ps3 Repair,motherboard Maintenance Equipment DH-A5US$ 5,000 - 30,000MOQ: 1 Set
-
Motherboard Refurbishing Machine,motherboard Repair Machine DH-390US$ 500 - 1,200MOQ: 1 Set
-
Dinghua Vga Bga Repair Machine 3 Heater Zone HD Touch Screen Motherboard Repair Machine DH-A1US$ 1 - 1,500MOQ: 1 Set
Warranty:Three years warranty for heaters.one year for other parts of machine.(two years longer than other companies)

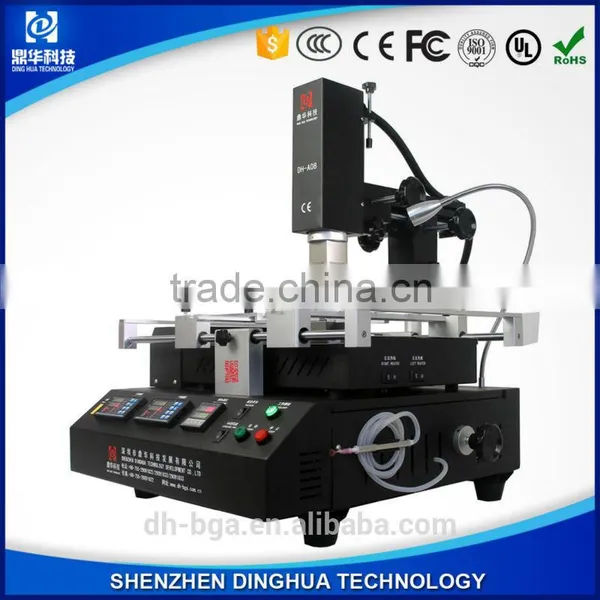

Our product have Iso9001 and CE certificate:

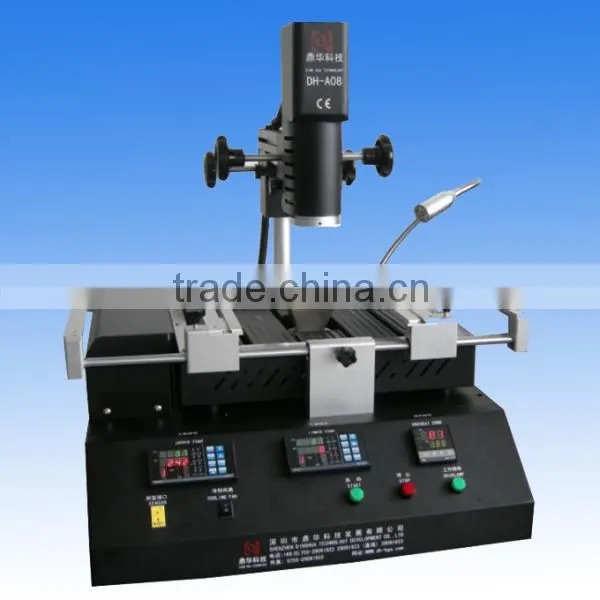

What's the specification of DH-A08?
- Total Power: 4800W
- Top heater: 800W
- Lower heater: 1200W Bottom heater: 2700W
- power: AC 110V / 220V
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±2 degree
- PCB size: Max 400x400mm Min 20x20mm
- BGA chip size: 2*2~80*80mm
- Minimum chip spacing: 0.15mm
- Dimension: approx L570×W520×H570 mm
- Net weight: Approx 33KG
we can learn the DH-A08 by features:

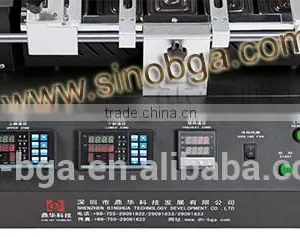

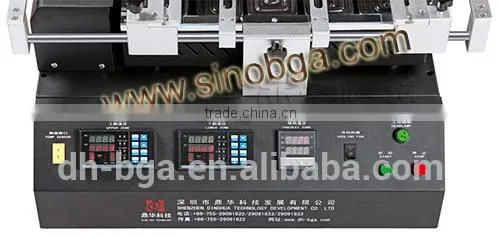

1,Three independent heaters all can set 8 segments heating, cooling and constant temperature, save up to tentemperature profiles. IR preheat area can be controlled according to PCB size.
2,K sensor close loop control and automatic temperature compensation system. It
combineswith temperature module, which enables temperature accuracy to ±2°C

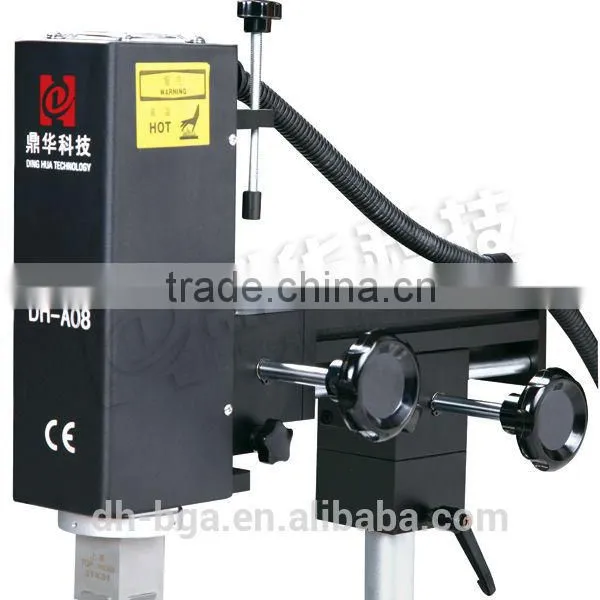

3,Moveable heater, easy to operate.
4,Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.

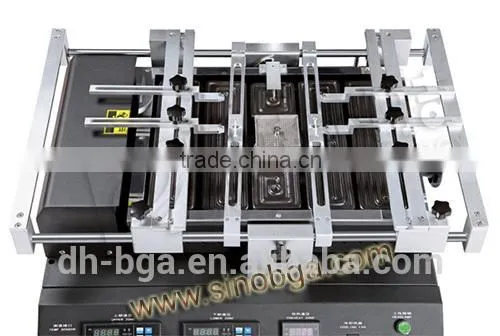

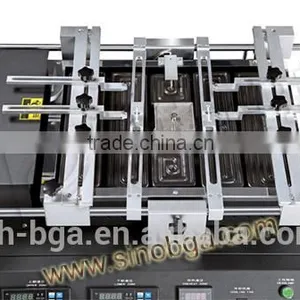

5,V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
6,Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
7,Sound hint system. There is an alarm before the completion of each desoldering and soldering.
8,CE certification, with emergency switch and automatic power-off protection device when emergency happens
About Dinghua Technology!
Packing of DH-A08:
FAQ
Payment terms
We can accept Western Union, PayPal, T/T payment. If you want other payment methods,
please kindly inform us.
Delivery Time
Within 2 working days after the full payment.
LOgo/Brand
Customer's designs and logos are welcome,we can silk-print it.
Demo Video Available
Videos of operating the machine are available.
