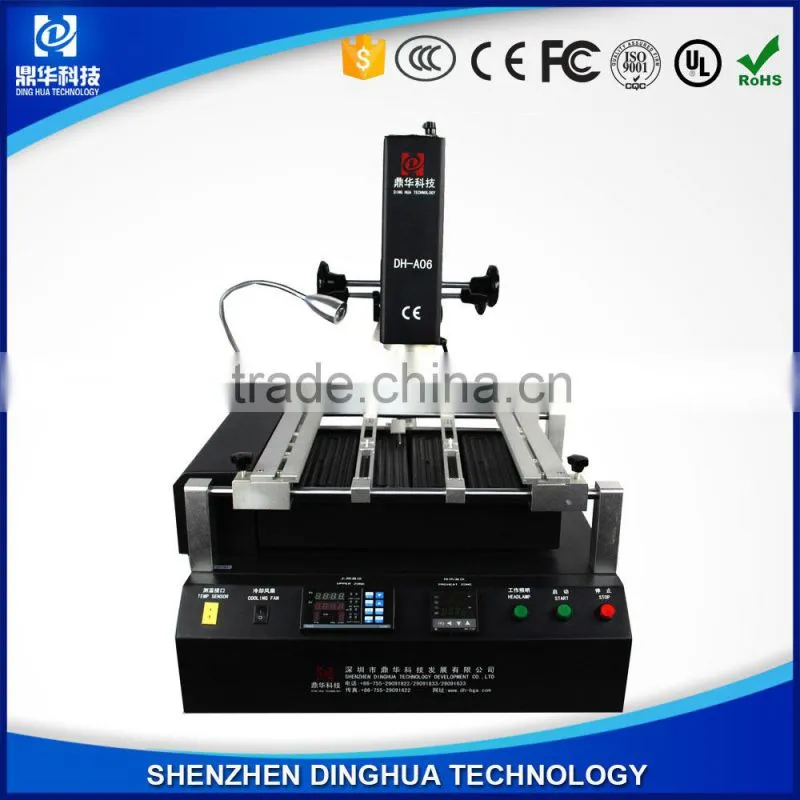

Dinghua bga repair kit with digital panel meter for motherboard chip rework laptop mobile repair DH-A06
Specification:
- Total Power: 3200W
- Top heater: 800W
- Bottom heater: 2400W
- power: AC 110V / 220V
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±2 degree
- PCB size: Max 280x460mm Min 20x20mm
- BGA chip size: 5*5~55*55mm
- Minimum chip spacing: 0.15mm
- Dimension: approx L470×W490×H600 mm
- Net weight: Approx 27KG
Feature:
Two independent heaters all can set 8 segments heating, cooling and constant temperature, save

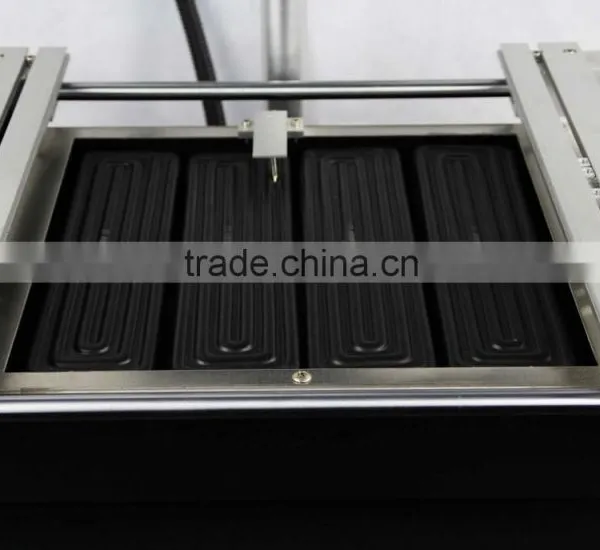

up to ten temperature profiles. IR preheat area can be controlled according to PCB size
K sensor close loop control and automatic temperature compensation system. It combines with
temperature module, which enables temperature accuracy to ±2°C
Moveable heater, easy to operate.
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of
PCB board.
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from
deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
CE certification, with emergency switch and automatic power off protection device when emergency happens
Our service:
Customization: We provide OEM services.
Warranty: 1 year for the whole machine and 3 years for the heating wire.
Oversea engineer available to service machinery overseas
Certifications :
About us:
shipping
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is with 7 days after the receipt of payment. If you are in urgent need of it, please
kindly tell us.
payments
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please
kindly inform us.
How to order
1.Tell us which model,quantity you need to order
2.We will make PI for your order
3.After PI confirmation, we will send the goods to you ASAP when we get your payment
4.Send the tracking number to you until you get your goods
