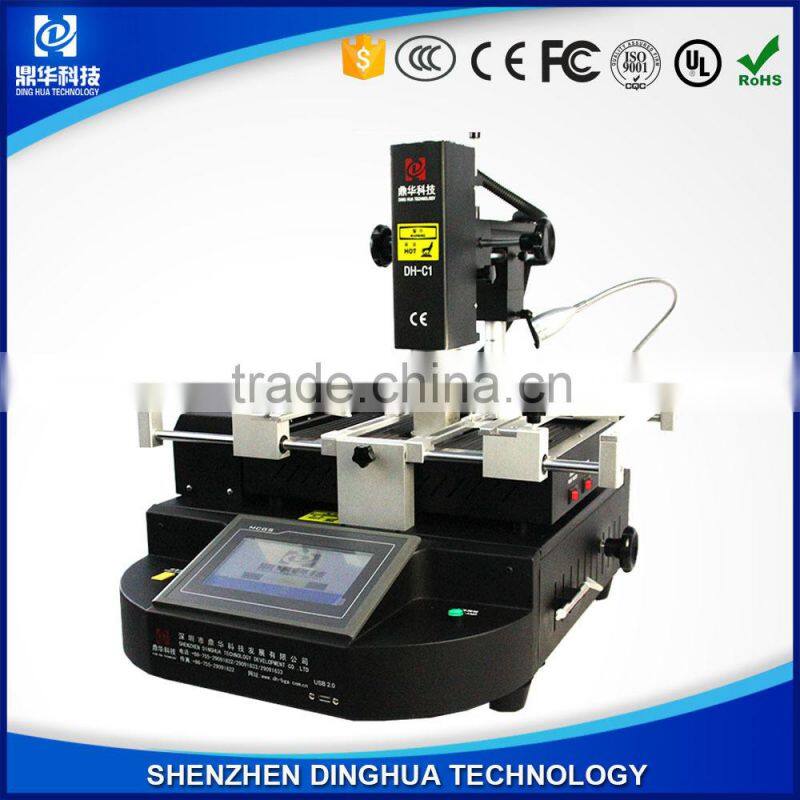

Help CenterDinghua Xbox360 Ps2 Ps3 Repair Motherboard Refurbishing Machine DH-C1
Related Products
-
Dinghua Reflow HR + IR Bga Rework Station for Computer Laptop Motherboard Repair DH-A09LUS$ 500 - 900MOQ: 1 Set -
Dinghua Motherboard Repair Tool DH-A4US$ 1 - 20,000MOQ: 1 Set
-
Dinghua Auto Motherboard Repair Equipment With CCD Camera for Laptop Notebook Repair Rework Station DH-A5US$ 5,000 - 30,000MOQ: 1 Set
-
Dinghua Bga Replacement Tool With 3 Heater Zone for Ps2 Ps3 Xbox360 Repair DH-A1US$ 800 - 1,500MOQ: 1 Set
-
Dinghua Technology!Bga Remove Unit With 3 Heater Zone HD Touch Screen for Mainboard Chip Repair DH- A09LUS$ 400 - 899MOQ: 1 Set
Specification:

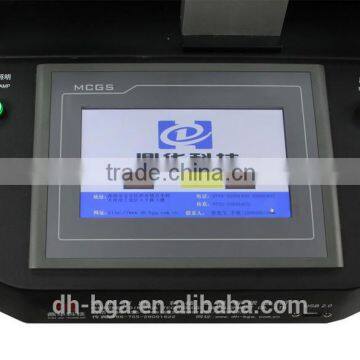

1.Touch screen,PLC Control

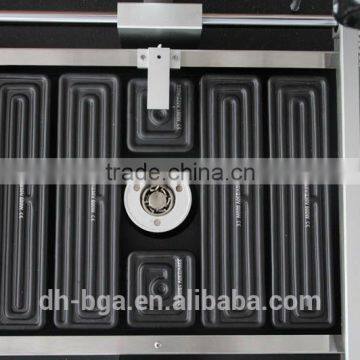

2.Hot Air Mix Infrared Heating,Nozzles available
3.Three Temperature zone Independently
4.Easy operation and Economic Model

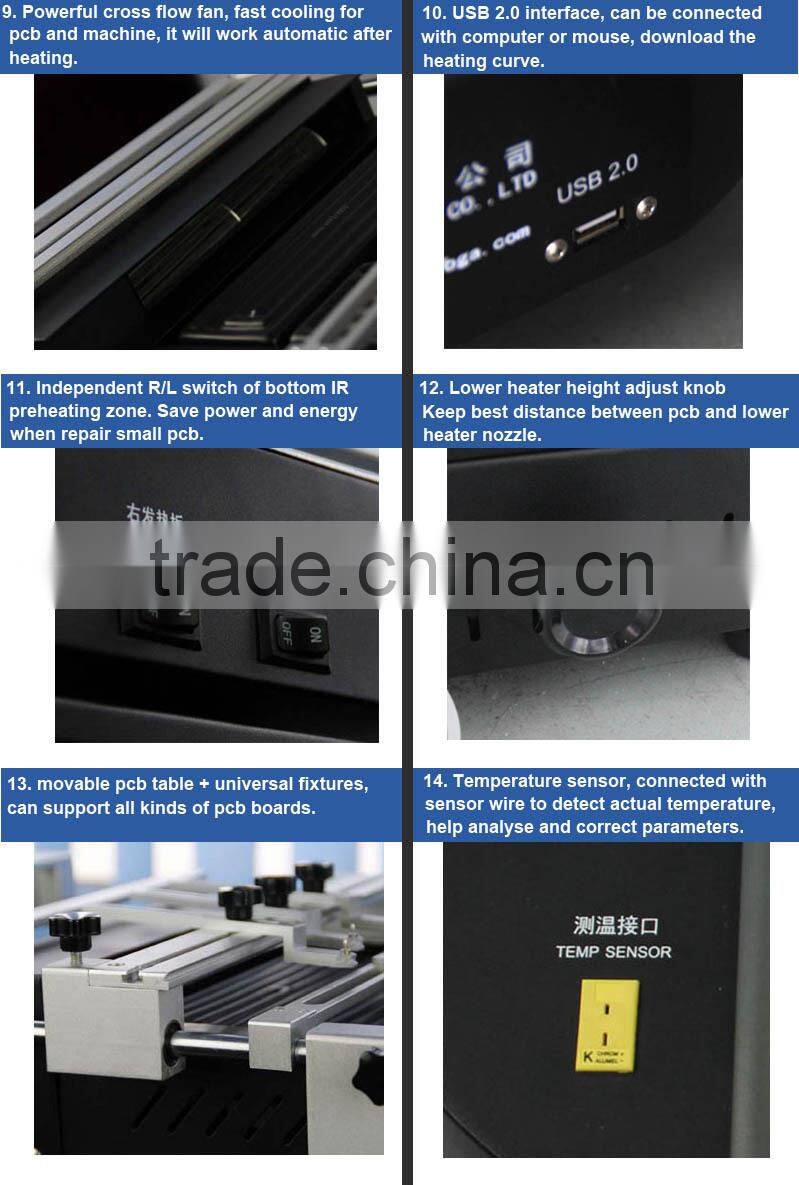

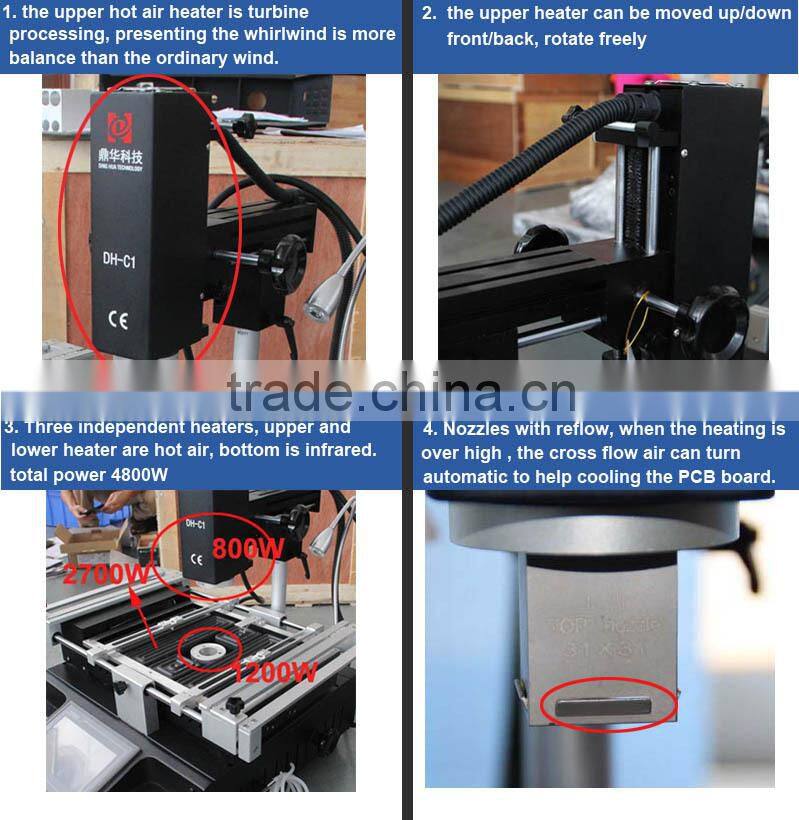

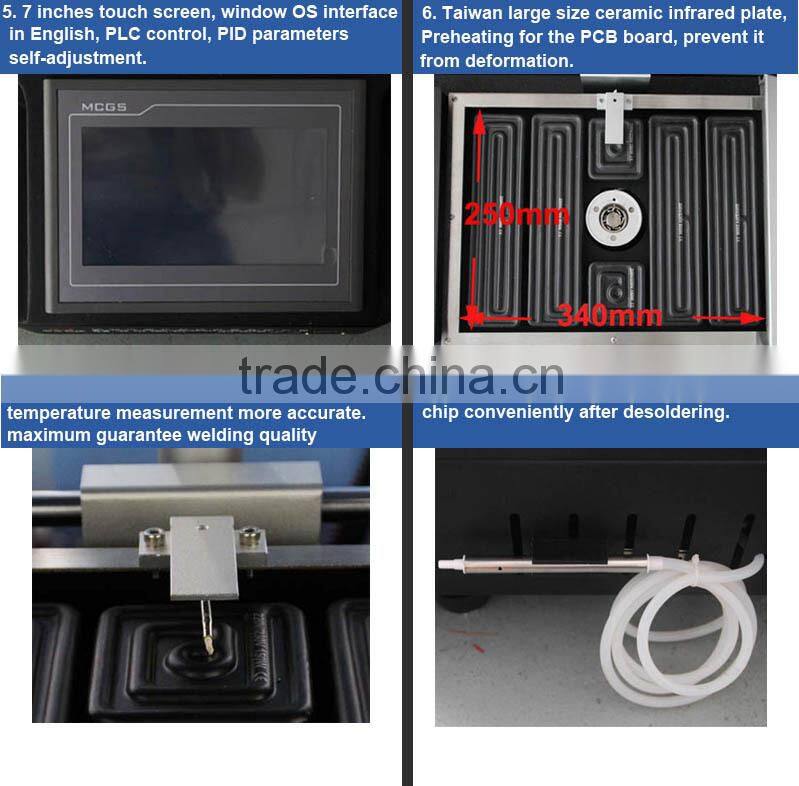

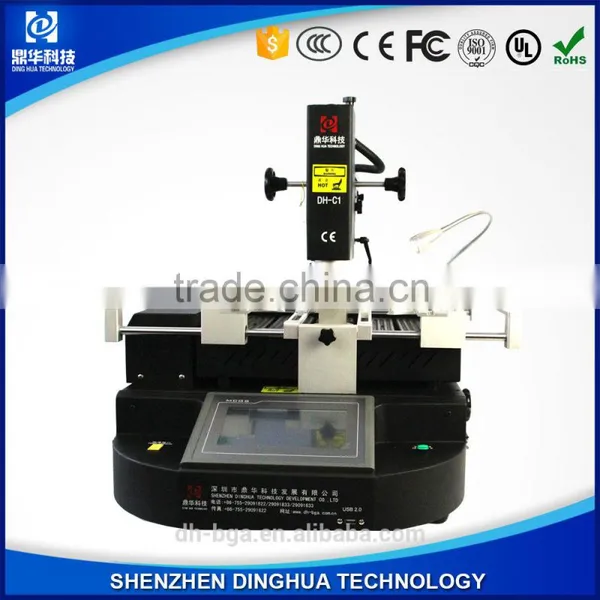

We can learn DH-C1 more by details:
What's the Specification of DH-C1?
Total Power |
4800W |
Top heater |
800W |
Bottom heater |

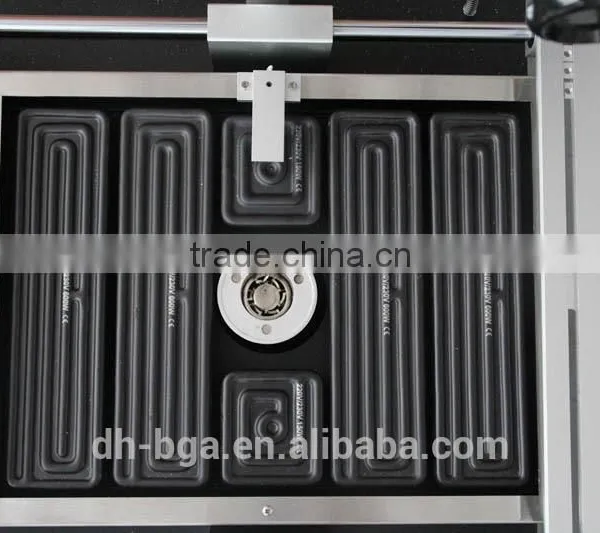

Lower heater: 1200W, Bottom IR: 2700W |
Power |
AC220V±10% 50/60Hz |

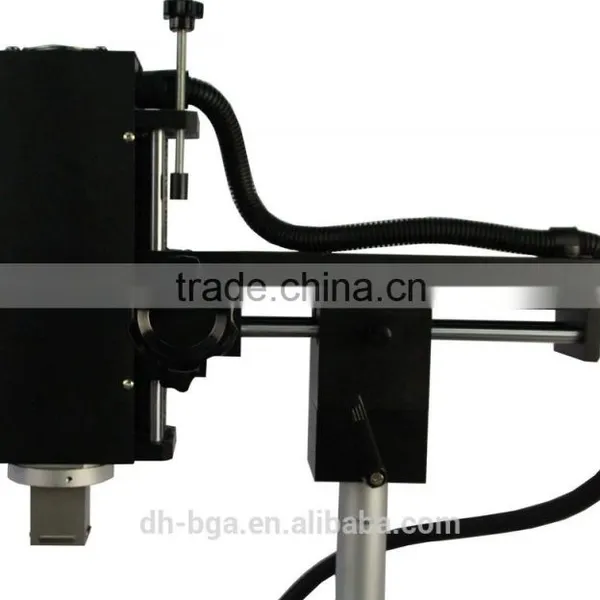

Top heater movement |
Right/left, frontward/backward, rotate freely. |
Lighting |
Taiwan led working light, any angle adjusted. |
Storage |
50000 groups of temperature profiles |
Operation mode |

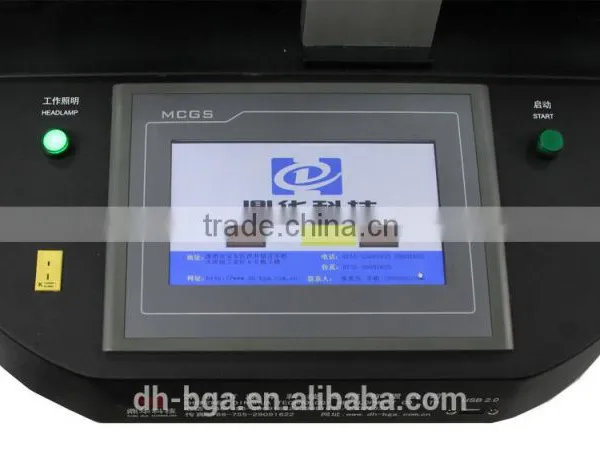

HD touch screen, intelligent conversational interface, digital system setting |
Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2℃ |
PCB size |
Max 400mm*400mm Min20mm*20mm |
BGA chip |
2*2~80*80mm |
Minimum chip spacing |
0.15mm |
Temper sensor |
1pc |
Dimensions |
L560×W590×H690 mm |
Net weight |
Approx 32KG |

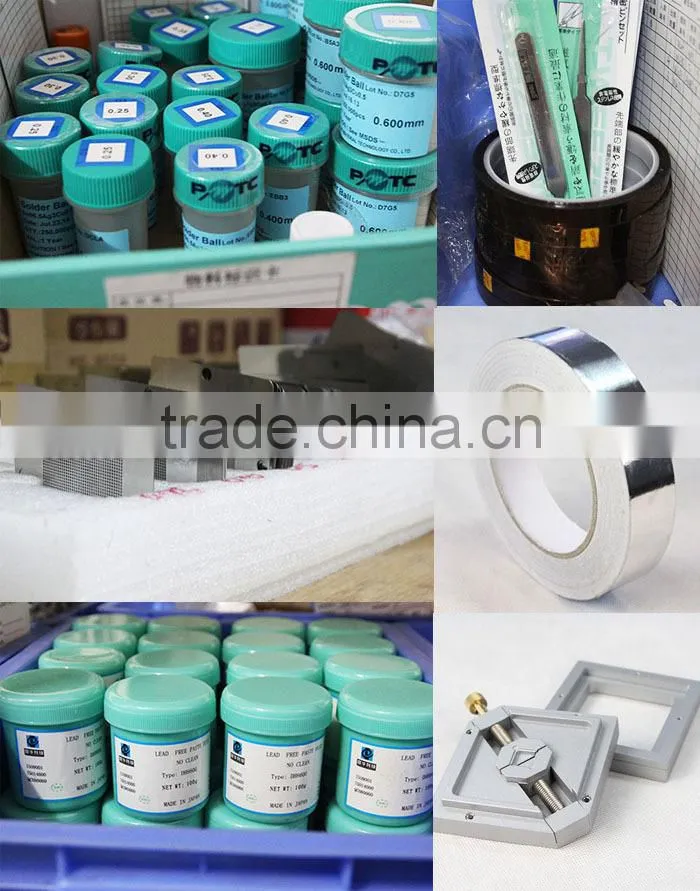

Rework spart parts Available:

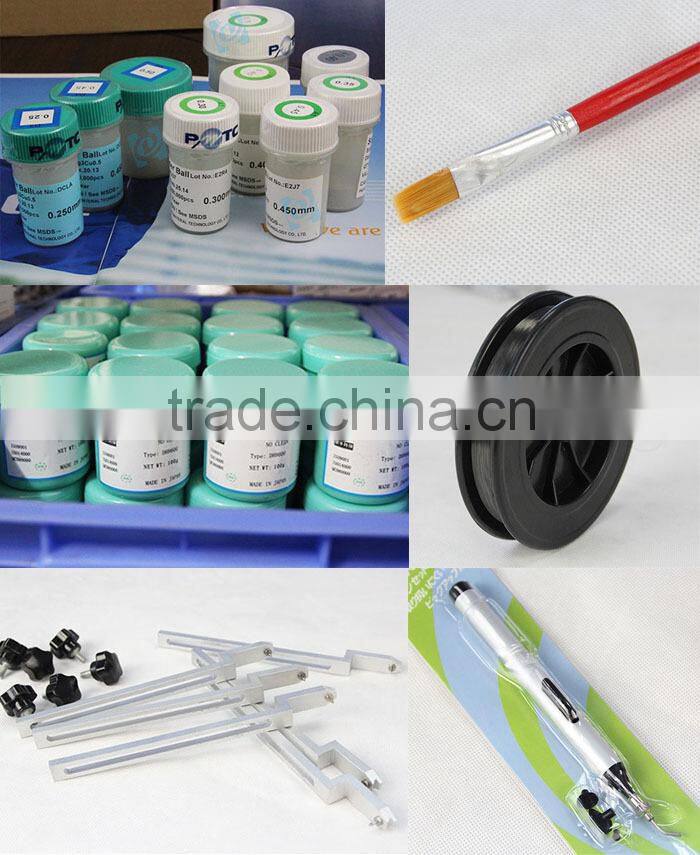

Accessories of DH-C1
Shipping and Packing of DH-C1
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
:
certification

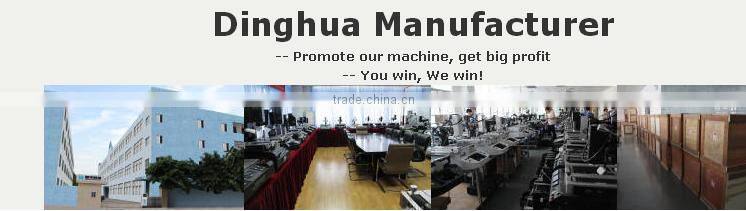

About Us
How to use the DH-C1?
1.We will provide you with the CD of User Manual and to see how to use.
2.About the temperature setting.pls refer to the Setting Of The Temperature Parameters
Manual Here and to see how to set temperature.
