Rewinding machine
1.Main Features:
1).This auto rewinder machine adopts PLC programmable logic controller as main control, touchable human machine interface and AC servo motor for dead length which produced by china.
2).Touchable human machine interface and YASKAWA AC servo motor for dead length.
lift unwinding and magnetic powder auto tension system.
3).Air expansion shaft and computerized
4).Adopts non pole cylinder shunt auto cut.
2.Basic Parameters:
name |
Automatically toilet paper rewinding machine |
model |
1575 |
original paper size |
Φ1100×1800mm |
diameter of Finished paper |
Φ80-Φ150mm |
Diameter of Core tube |
Φ30-Φ50mm |
Perforating style |
Spiral perforating knife(double knife) |
Perforating Distance |
115-180mm(adjustable) |
capacity |
180m/min 2.5ton/shift |
power |
Frequency conversion electric motor(5.5kw) |
Dimension of machine |
5500mm*2500mm*1450mm |
Weight of machine |
3700kg |
3.Company Profile:
Shandong xinhe paper-making engineering Co.,Ltd, is a leading professional paper machine manufacturer in China and specializes in pulp making machine,paper making machine and paper processing machine manufacturing .With five branch factories , one technician team with 50 engineers and 12 experts with more than 30 years’ experience and the certifiacation of Quality system ISO9001:2000,we can provide best quality ,perfect product and service throughout the whole deal(include technology consultation, design factory , project evaluation; detailed design of factory ;installing and testing the whole production line; raining engineers and workers; supplying spare part for long time;meanwhile,we also manufacturing machine in accordance with consumer special requirement). we have won great appraise and expect from our customers home and aboard, Russia,India,Syria,Pakistan,Egept,Middle East, Africa and South America etc.
We hope to establish friendship and business relation with friend from all over the world .

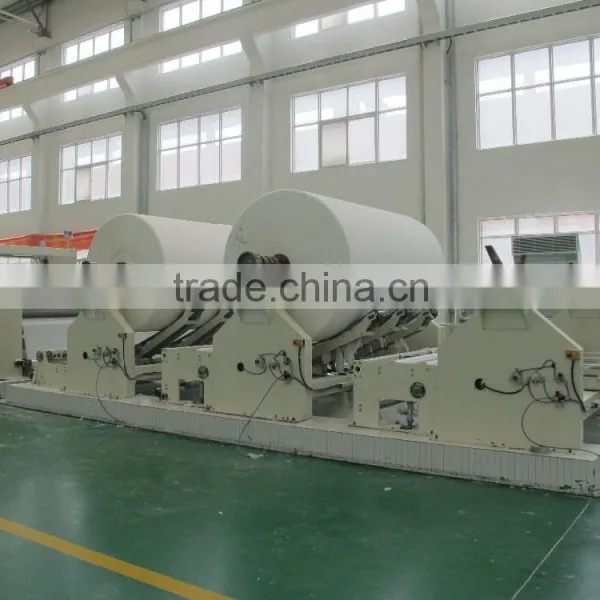

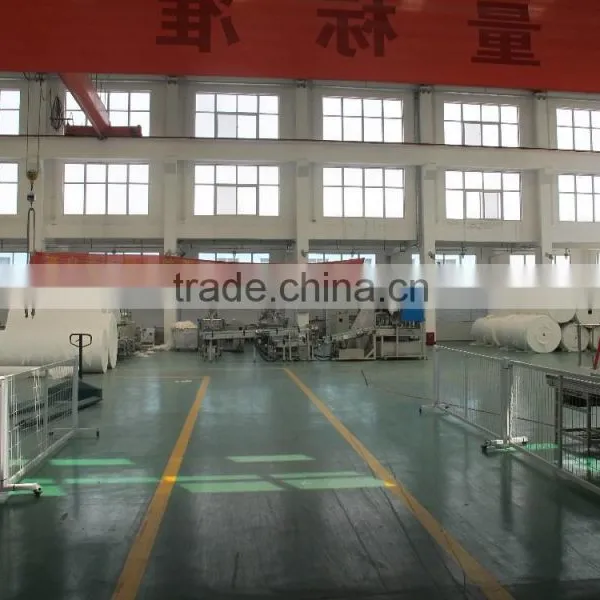

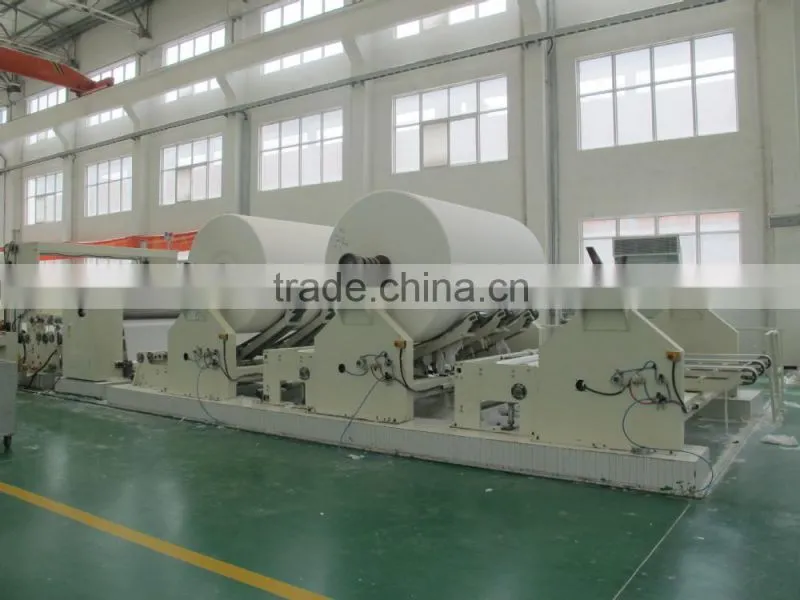

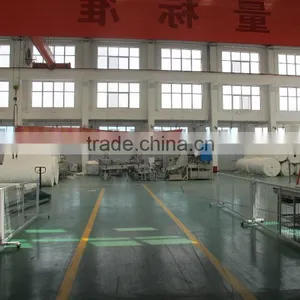

Pictures For Slitter & Rewinder
More information,please contact us.
