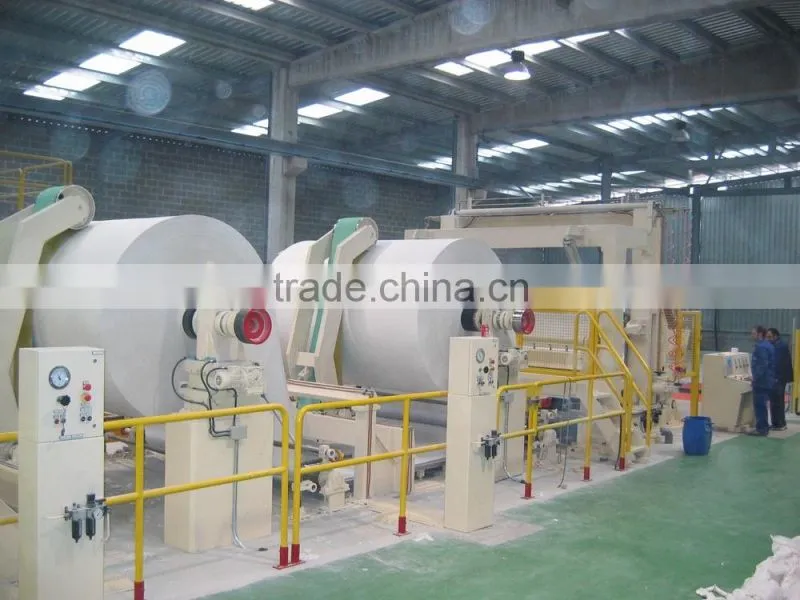

Help CenterCE SGS Slitter and Rewinder for Jumbo Paper Roll
Related Products
-
Sizing Machine for Paper Making MachineryUS$ 17,000 - 32,000MOQ: 1 Set -
Two Roll CalenderUS$ 15,000 - 30,000MOQ: 1 Set
-
Four-Roll Calender for Paper MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
Shandong Xinhe Headbox With Air-cushioned/open TypeUS$ 50,000 - 120,000MOQ: 1 Set
-
Headbox for Tissue Papermaking Machine With Air-cushioned/open TypeUS$ 50,000 - 120,000MOQ: 1 Set
2750/1000mm Slitter and Rewinder
1. Main Techncial data:
Paper pick up type:downward pick up type
Apply to: liner paper board
Paper basis weight:100-300gsm
Jumbo roll width:2700mm
Trimmed width:2650mm
Max. jumbo roll diameter: Φ2500mm
Finshed paper roll diameter:Φ1200mm
Working speed:1000m/min
Dynamic balance speed:1200m/min
Paper pick up speed:10-25m/min
Paper core: 76mm
No. of sliiter:4pcs
Max tension:1500N/M
Machine type:to be confirmed
2. Main parts:
No. |
Equipment Description |
Model |
Qty |
01 |
Constant tension paper roll place part |
|
1set |
1.1 |
Paper roll stand D.C. generator
|
Z4-315-31 100kw 400V 330-2000 rpm |
1set |
1.2 |
Reducer |
ZDY250 |
1set |
1.3 |
Coupling |
Q/ZB123 |
2sets |
1.4 |
lengthways displacement reducer |
BWY 1.1kw |
1set |
1.5 |
butterfly brake device |
FL125-1.6 |
1set |
1.6 |
Gear reducer |
FL110-1-1 |
1set |
1.7 |
linear guide and sliding seat |
HGH65CA HGH65HA |
4pcs 8pcs |
1.8 |
Encoder |
FINS5810C593R |
1set |
02 |
Slitter part |
assembly |
1set |
2.1 |
Impored upper and lower circle cutter device |
1500m/min Φ180×Φ250 |
4sets |
2.1.1 |
Upper circle cutter |
|
10pcs |
2.1.2 |
lower circle cutter |
|
4pcs |
2.2 |
Tension sensor |
PFTL301 E |
1units |
2.3 |
Centrifugal edge suction fan |
ZBFC-12a-6A30kw |
1set |
2,4 |
Upper pass paper motor |
BWY 0.37kw |
1set |
2.5 |
Pick up wind plate device |
FL121-2.9 |
1 |
2.6 |
Linear guide and sliding seat |
HGH25CA HGH25HA |
4 20 |
03 |
Reel up part |
assembly |
1 |
3.1 |
Supporting roll drive D.C. motor |
Z4-200-21 75kw 440V 1500rpm |
2 |
3.2 |
Reducer |
ZDY200 |
2 |
3.3 |
Coupling |
Q/ZB123 |
2 |
3.4 |
Top tight device |
FL121-3.7 |
1 |
3.5 |
Encoder |
FINS5810C593R |
2 |
3.6 |
Linear guide and sliding seat |
HGH40CA HGH40HA |
4 16 |
3.8 |
Linear position sensor |
BWH1250 |
1 |
04 |
Hydraulic pneumatic control part |
whole set |
1 |
4.1 |
Efficient vane pump |
YBE-50T |
1 |
4.2 |
Oil station accessory |
|
1 |
4.3 |
Hydraulic control device |
|
1 |
4.4 |
Pressure gauge |
|
1 |
4.5 |
electro-hydraulic proportional valve amplifier |
KZGD-A-03/315 |
1 |
4.6 |
control valve,oil and gas pipe |
|
1 |
4.7 |
Oil cylinder |
HSGL |
8 |
4.8 |
Air cylinder |
QGBⅡ |
5 |
4.9 |
Pneumatic components |
|
1 |
05 |
Electric control part |
|
1 |
