1. Best quality
2. Excellent after-sales service
3. Hydraulic pressure type

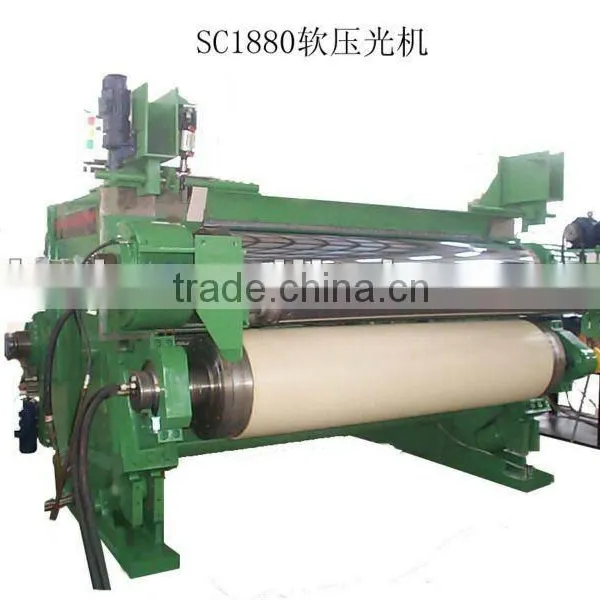

2450mm four-roll calender
1.Main Parameters:
Trimmed width:2240mm
Face length of roll:2450mm
Gauge:2900mm
Design speed:170m/min
Working speed:120m/min
Pressure type: hydraulic
Lift type:motor drive
Lubrication type: grease lubrication
Pick-up type:manual
Design linear pressure:90kg/cm
Working linear pressure:70kg/cm
Drive type:variable-frequency motor& hardened reducer&coupling
Arrangement type:right-hand or left-hand type(to be confirmed by users)
Dimension:1400X6100X2780mm(LXWXH)
2.Basic configuration:
| Name | Quantity |
| frame | 1 set |
| calender roll | 4 sets |
| scraper | 4 sets |
| Φ130 movable arc roll | 1 set |
| lubricating system | |
| lifting device | 1 set |
| console | |
| drive part |
3.Company Profile:
a. As a turnkey project manufacturer,we supply the whole production line from stock preparation to winding machine,and also paper machine accessories,such as headbox,scraper,touch roll,calander,winding machine,winding roll etc.
b. We are responsible for the installation, commissioning,training workers.
c. Supply free technical service within guarantee period and long-term supply spare parts at a reasonable price.
4. The price is negotiable.
