Dinghua DH-A1L-C 3 Heater Zone BGA Vga Rework Machine With Camera Monitor for Laptop Motherboard Repair

Dinghua DH-A1L-C 3 Heater Zone BGA Vga Rework Machine With Camera Monitor for Laptop Motherboard Repair photo-1
Dinghua DH-A1L-C 3 Heater Zone BGA Vga Rework Machine With Camera Monitor for Laptop Motherboard Repair photo-2
Dinghua DH-A1L-C 3 Heater Zone BGA Vga Rework Machine With Camera Monitor for Laptop Motherboard Repair photo-3
Dinghua DH-A1L-C 3 Heater Zone BGA Vga Rework Machine With Camera Monitor for Laptop Motherboard Repair photo-4
Dinghua DH-A1L-C 3 Heater Zone BGA Vga Rework Machine With Camera Monitor for Laptop Motherboard Repair photo-5
Dinghua DH-A1L-C 3 Heater Zone BGA Vga Rework Machine With Camera Monitor for Laptop Motherboard Repair photo-6
US$ 1,200 - 1,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DINGHUA
Model Number:
DH-A1L-C
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name DINGHUA
Model Number DH-A1L-C
Voltage AC220V±10% / 110V 50/60Hz
Current 20A
Rated Capacity 3200W
Rated Duty Cycle 100%
Dimensions approx 640*630*560mm
Weight Approx 45KG
Usage BGA Rework station for laptop motherboard repair
Certification CE ISO 9001 2008 ROHS
After-sales Service Provided Engineers available to service machinery overseas

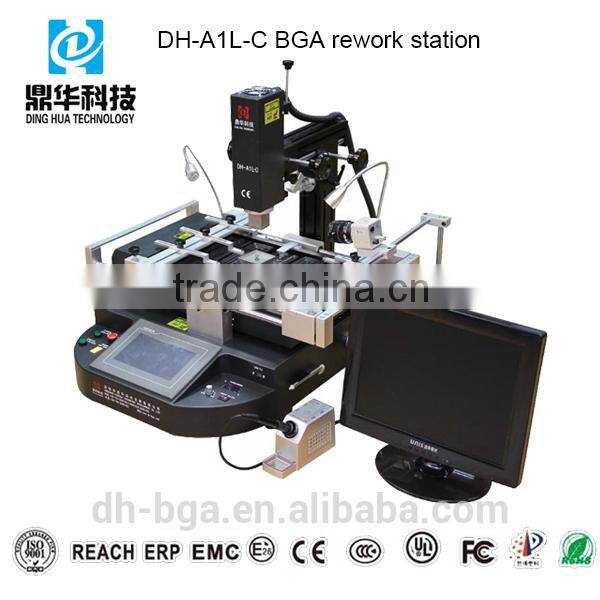

Dinghua 3 heater zone BGA Rework machine with camera monitor for laptop motherboard repair  DH-A1L-C



 Dinghua DH-A1L-C 3 heater zone BGA vga Rework machine with camera monitor for laptop motherboard repair


BGA Rework station  DH-A1L-C of  Specification:

  • Total Power: 4900W
  • Top heater: 800W
  • Lower heater: 1200W  Bottom heater: 2700W  soldering iron: 80W
  • power: AC 110V / 220V
  • Positioning: V-groove, PCB support
  • Temperature control: K Sensor, Closed loop
  • Temp accuracy: ±2 degree
  • PCB size: Max 420x400mm  Min 20x20mm
  • BGA chip size: 2*2~80*80mm
  • Minimum chip spacing: 0.15mm
  • Dimension: approx 640*630*560mm
  • Net weight: Approx 45KG




Special feature:

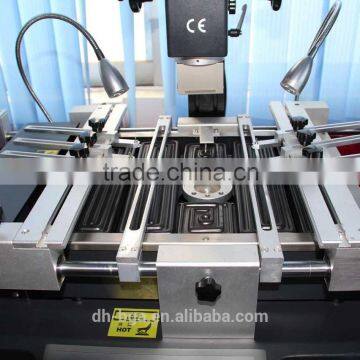

  • Laser positioning, fast and precise position the bga and pcb.

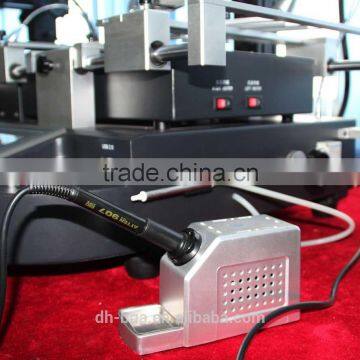

  • External digital soldering iron, help clean the bga and motherboard conveniently.

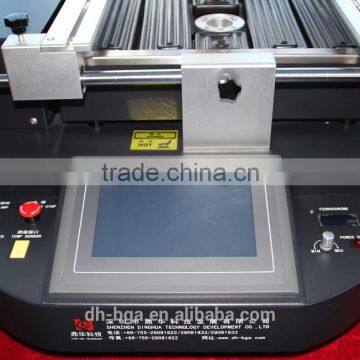

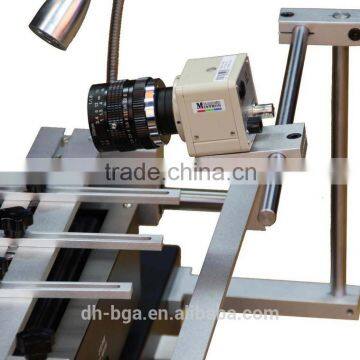

  • Camera and high definition monitor, can view melting of solder balls clearly, more convenient for operator to temperature  adjustment, correction and analysis.
  • With vacuum tube, pick up the bga chip conveniently.
  • With USB 2.0 interface, can be connected with computer, controlled by software.
  • Real-time settings and actual temperature profile display can be used to analyzed and correct parameters.
  • External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
  • HD touch screen and start up password for protection and modification,  PLC control, PID parameters self setting  adjustment, precise temperature module.
  • Adopt three heating zone, upper heater and low heater are hot air, bottom heater is infrared preheat zone.
  • K type close loop control, the temperature accuracy will be on ±2°C
  • High power cross flow cooling fan, prevent the PCB from deformation.
  • Sound hint system: there is voice reminder 5s-10s before the completion of heating,to get the operator prepared
  • Security measure: overheat guard and emergency stop function

Humanized design:

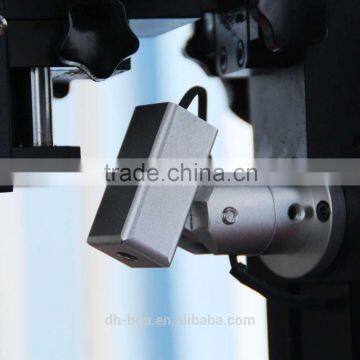

  • Upper heater can move up/down, front/back, rotate freely
  • lower heater can be also adjusted up and down, keep the best distance from nozzle to PCB
  • Strong sense of thermometer, temperature measurement more accurate
  • PCB clamp (V-groove) with universal fixture, suitable for all kinds of BGA.
  • it can set 8 segment heating, massive storage of temperature profiles
  • With different size of nozzles, easy replace and use, customized is available.
  • Colorful buttons in English and Chinese, easy recognize and use
  • CE certification, with emergency switch and automatic power-off protection device when emergency happens






Application:

Suitable for all kinds of BGA repairing (CCGA,BGA,QFNCSP,LGA,Micro SMD,MLF...)
Lead and Lead-free





BGA Rework station  DH-A1L-C of  Picture:
Dinghua DH-A1L-C 3 heater zone BGA vga Rework machine with camera monitor for laptop motherboard repairDinghua DH-A1L-C 3 heater zone BGA vga Rework machine with camera monitor for laptop motherboard repair









Certification:



Dinghua DH-A1L-C 3 heater zone BGA vga Rework machine with camera monitor for laptop motherboard repairDinghua DH-A1L-C 3 heater zone BGA vga Rework machine with camera monitor for laptop motherboard repair







Our Services



Customization: We provide OEM services.



Warranty: 1 year for the whole machine and 3 years for the heating wire.



Oversea engineer available to service machinery overseas







About us:

Dinghua DH-A1L-C 3 heater zone BGA vga Rework machine with camera monitor for laptop motherboard repairDinghua DH-A1L-C 3 heater zone BGA vga Rework machine with camera monitor for laptop motherboard repair
Dinghua DH-A1L-C 3 heater zone BGA vga Rework machine with camera monitor for laptop motherboard repair

Dinghua DH-A1L-C 3 heater zone BGA vga Rework machine with camera monitor for laptop motherboard repair



The video link :  A1L-C: https://youtu.be/E57USK7K52Y
