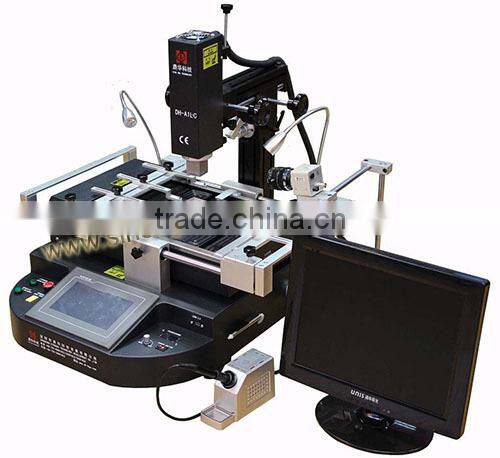

Dinghua Laser Welding Machine With CCD Camera and Monitor for IPhone Samsung Repair DH-A1L-C

Shenzhen Dinghua Technology Development Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

DH-A1L-C

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DH

Model Number DH-A1L-C

Voltage 220V AC, 50/60HZ

Current 15A

Rated Capacity N/A

Rated Duty Cycle N/A

Dimensions 64x73x58cm

Weight 42 Kg

Usage laser welding machine for iphone Samsung repairing

Certification CE, ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Dinghua Manufacturer

-- Promote our machine, get big profit

-- You win, We win!

Dinghua laser welding machine with CCD camera and monitor for iPhone Samsung repair DH-A1L-C

DH-A1L-C Details and Warranty:

Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)

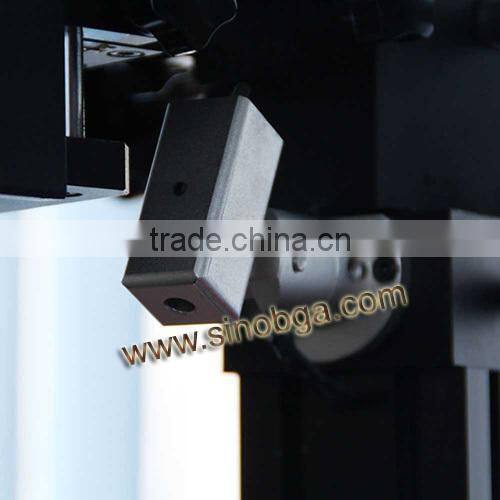

1. With Laser positioning, fast center PCB on the machine.

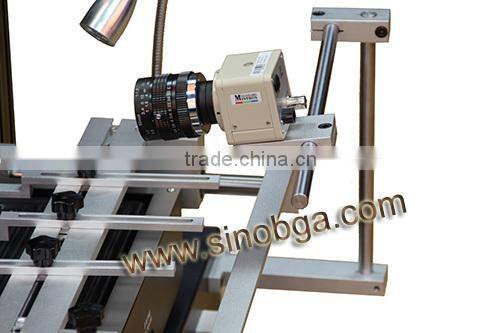

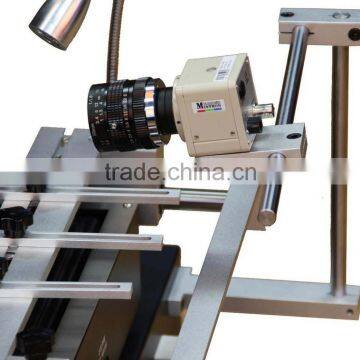

2. CCD camera + Monitor system, camera focus and brightness can be adjusted, move up/down, frontward / backward.

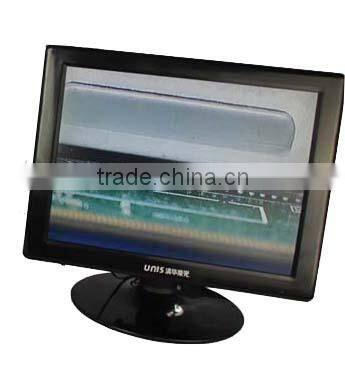

3. Monitor, to observe solder melting process clearly, especially helpful for beginner in repairing.

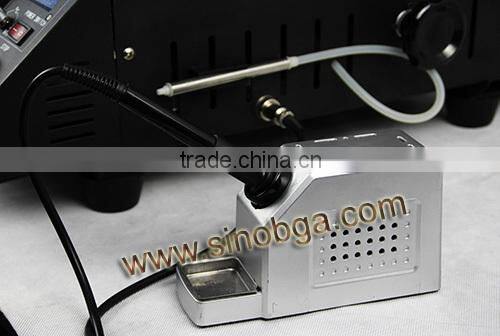

4. With soldering iron + independent switch, to clean pcb and bga quickly after desoldering.

5. Beautiful and durable materials used on the machine, Human-design, suitable for all kinds of pcb repairing.

DH-A1L-C Specification:

Total Power	4900W
Top heater	800W
Bottom heater	2nd 1200W, 3rd IR heater 2700W
Digital Iron power	80W
Power	AC220V±10% 50Hz

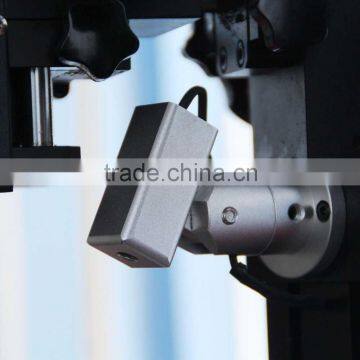

BGA positioning	Laser positioning, place pcb on the center rapidly.
Camera + HD monitor	To view melting of solder balls clearly, more convenient for operator to temperature adjustment, correction and analysis.
Cleaning tin	With digital soldering iron, for rapid clean residual tin after desoldering, prevent pcb and bga from oxidize
Lighting	Double shadowless LED lights, any angle adjusted freely
Top heater movement	Right/left, frontward/backward, rotate freely.

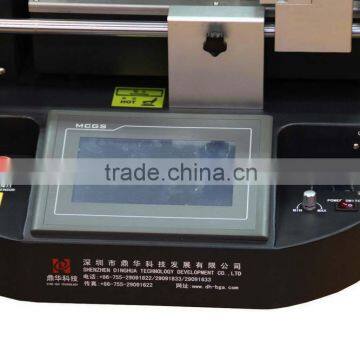

Operation mode	HD touch screen, intelligent conversational interface, digital system setting
Temperature profile storage	50000 groups

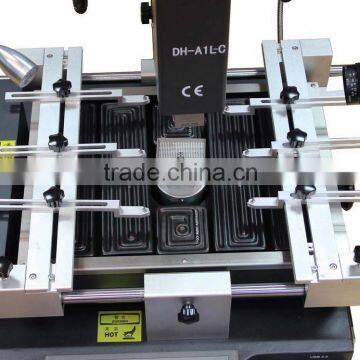

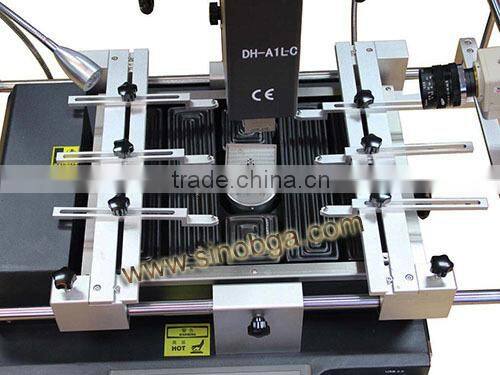

Positioning	Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.
Temperature control	K sensor, close loop
Temp accuracy	±2℃
PCB size	Max 420×400 mm Min 22×22 mm
BGA chip	2x2 - 80x80 mm
Minimum chip spacing	0.15mm
External temper sensor	1pc
Dimensions	L640×W630×H560 mm
Net weight	45KG
