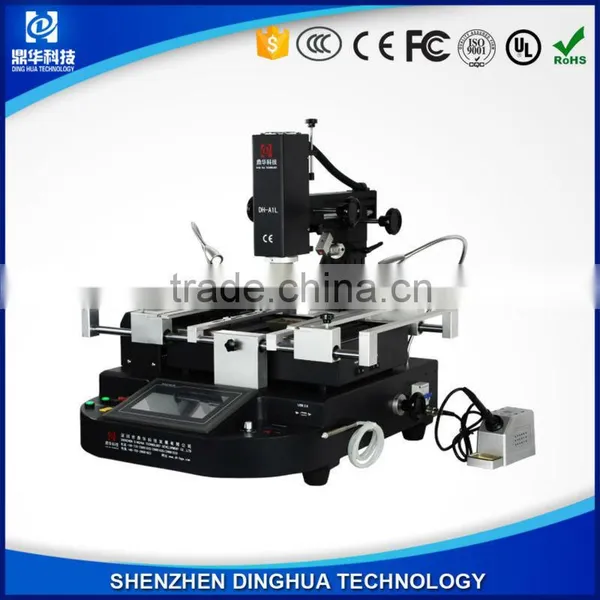

Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice

Shenzhen Dinghua Technology Development Co., Ltd.
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice thumbnail-1
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice thumbnail-2
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice thumbnail-3
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice thumbnail-4
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice thumbnail-5
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice thumbnail-6
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice photo-1
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice photo-2
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice photo-3
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice photo-4
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice photo-5
Dinghua Mobile Repair Tools Laser Welding Machine With Soldering Iron DH-A1L Quality Choice photo-6
US$ 1 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DINGHUA
Model Number:
DH-A1L
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DINGHUA
Model Number DH-A1L
Voltage 220V
Current 20A
Rated Capacity 4900W
Rated Duty Cycle 100%
Dimensions 650*680*600mm
Weight 45kg
Usage mobile repair tools
Certification CE ISO 9001 20008
After-sales Service Provided Engineers available to service machinery overseas

Dinghua Manufacturer

-- Promote our machine, get big profit

-- You win, We win!

Dinghua mobile repair tools laser welding machine with soldering iron DH-A1LDinghua mobile repair tools laser welding machine with soldering iron DH-A1LDinghua mobile repair tools laser welding machine with soldering iron DH-A1LDinghua mobile repair tools laser welding machine with soldering iron DH-A1L



Dinghua mobile repair tools laser welding machine with soldering iron DH-A1L



Dinghua mobile repair tools laser welding machine with soldering iron DH-A1L





DH-A1L Details and Warranty:



Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)

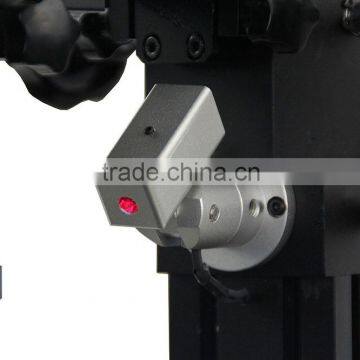

1. With Laser positioning, fast center PCB on the machine.



Dinghua mobile repair tools laser welding machine with soldering iron DH-A1L

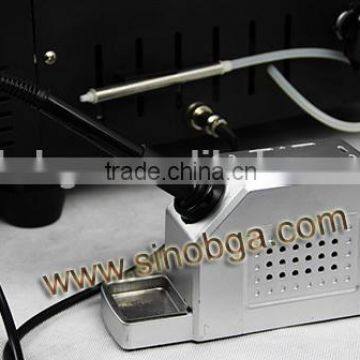

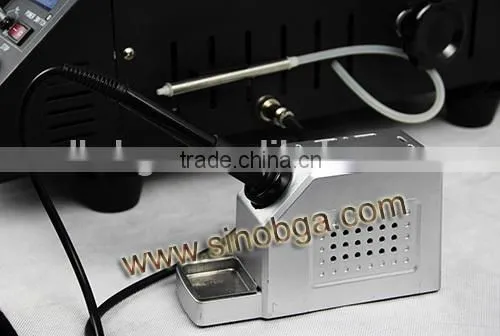

2. With soldering iron + independent switch, to clean pcb and bga quickly after desoldering.



 Dinghua mobile repair tools laser welding machine with soldering iron DH-A1L

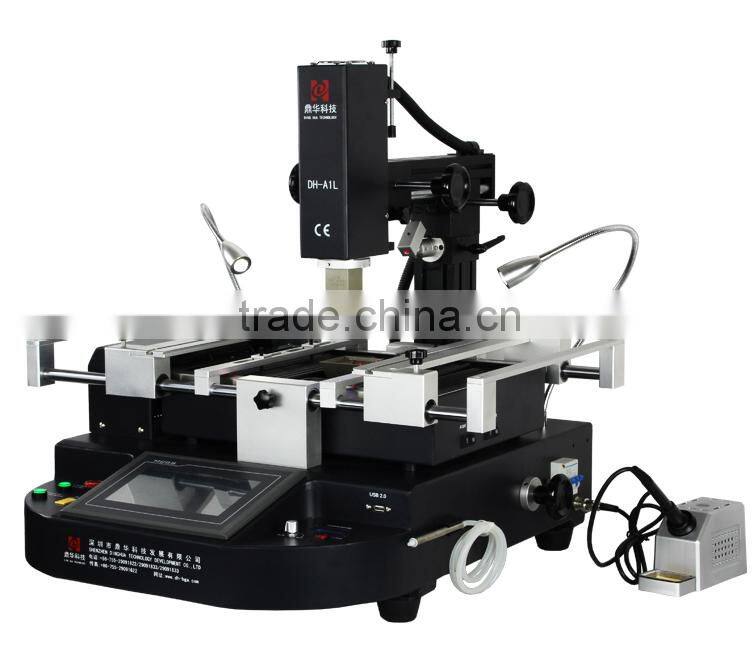

3. Beautiful and durable materials used on the machine, Human-design, suitable for all kinds of pcb repairing.

Dinghua mobile repair tools laser welding machine with soldering iron DH-A1L







4. With vacuum sucker, pick up bga chip conveniently after delsodering.

Dinghua mobile repair tools laser welding machine with soldering iron DH-A1L







5. High definition touch screen interface, very easy to learn and operation.





Dinghua mobile repair tools laser welding machine with soldering iron DH-A1L









DH-A1L Specification:





Total Power

4900W

Top heater

800W

Bottom heater

2nd 1200W, 3rd IR heater 2700W

Digital Iron power

80W

Power

AC220V±10%     50Hz

BGA positioning

Laser positioning, place pcb on the center rapidly.

Cleaning tin

With digital soldering iron, for rapid clean residual tin after desoldering, prevent pcb and bga from oxidize

Lighting

Double shadowless LED lights, any angle adjusted freely

Top heater movement

Right/left, frontward/backward, rotate freely.

Operation mode

HD touch screen, intelligent conversational interface, digital system setting

Temperature profile storage

50000 groups

Positioning

Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.

Temperature control

K sensor, close loop

Temp accuracy

±2℃

PCB size

Max 420×400 mm Min 22×22 mm

BGA chip

2x2 - 80x80 mm

Minimum chip spacing

0.15mm

External temper sensor

1pc

Dimensions

L640×W630×H560 mm

Net weight

45KG









DH-A1L Packing:

 Dinghua mobile repair tools laser welding machine with soldering iron DH-A1L







Rework Spart parts available:



Dinghua mobile repair tools laser welding machine with soldering iron DH-A1L







Dinghua Certification:

Dinghua mobile repair tools laser welding machine with soldering iron DH-A1L
