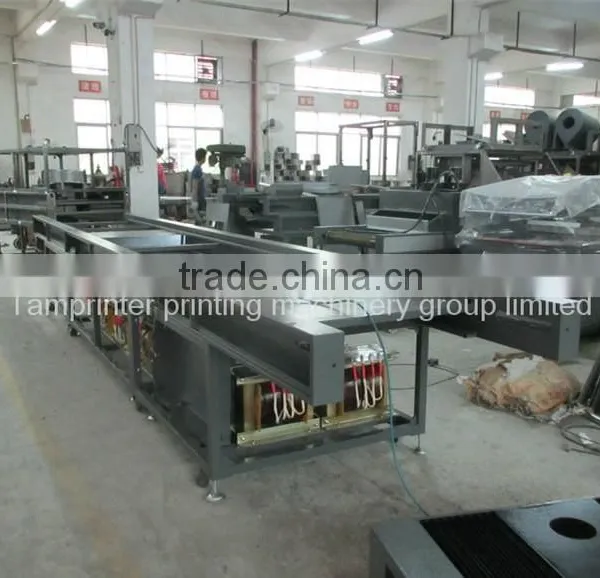

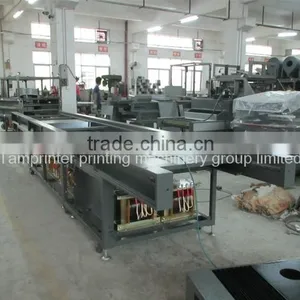

TM-IR750 Stainless Steel Heat Pipe Drying Tunnel Oven
Model No |
TM-IR750 |
TM-IR900 |
Conveyorbelt width(mm) |
750mm |
900 |
Conveyor speed(m/min) |
0-25m/min |
0~25 |
Power (v/kw) |
380/7.5(Each section) |
380/9(Each section) |
Temperature |
20-300 degree |
20~300 |
Advantage:
1, Top cover is opened: Use air cylinder (easy maintenance)
2, Liner: Stainless Steel (sealing better, more stable temperature)
3, Heat pipe: Stainless steel
4, Temperature and speed can be adjusted
5, Main components are imported brands
6, Reasonable structure design: feeding, drying, cooling, post, Receiving Paper Platform. . .
Our technology department know the below information:
1. Does the lacquering finished by Machine or Manual?
2.1 The ink drying time (Pls ask your ink supplier )
2.2 Drying speed requirements
2.3 Drying temperature requirements
2.4 Products maximum width
Our parameters based on customer needs, design suitable model configuration.
Applications:
It is apply to the flash drying of solvent-ink and drying of general moisture bearing things, such as presswork, product of chemical industry, glass and plank stuff.
Features:
1, Infrared tunnel oven-dry configuration is generally divided into: feeding zone - compartment temperature zone - heating zone - compartment temperature zone - cooling zone - outing zone.
2, Our machines are counted meter; one meter is USD990. At least 4 meters.
3, Tack configured tunnel furnace is generally about 3 meters long, which is more expensive than oven-dry configuration, because the manufacturing materials are not the same.
4, According to the requirements of things need drying, the net belt can stepless speed regulating between 0-20 m/min.
5, Imported Talfon or stainless steel net, the speed of transmission is steady, move smoothly and without noise.
6, Imported electrothermal control elements, accuracy high to control the temperature.
7, Imported digital-display adjusted temperature control elements control the temperature sensitivity.
