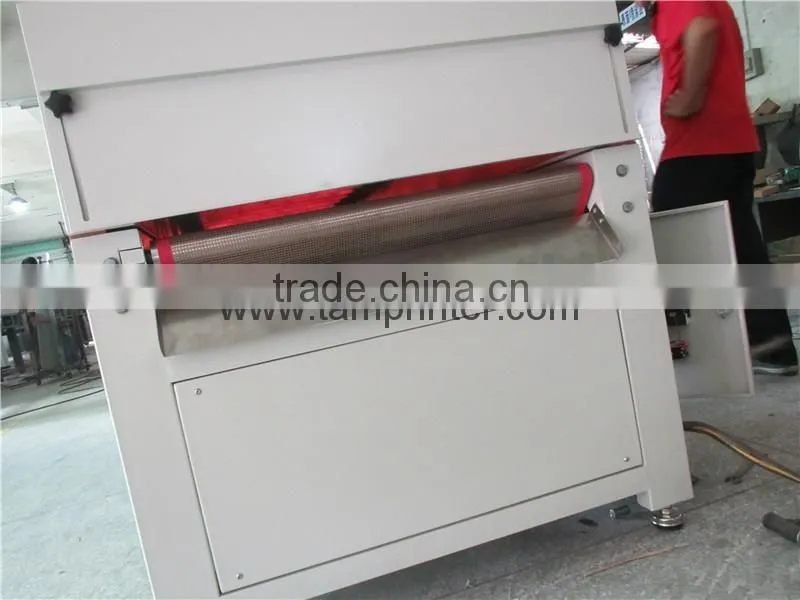

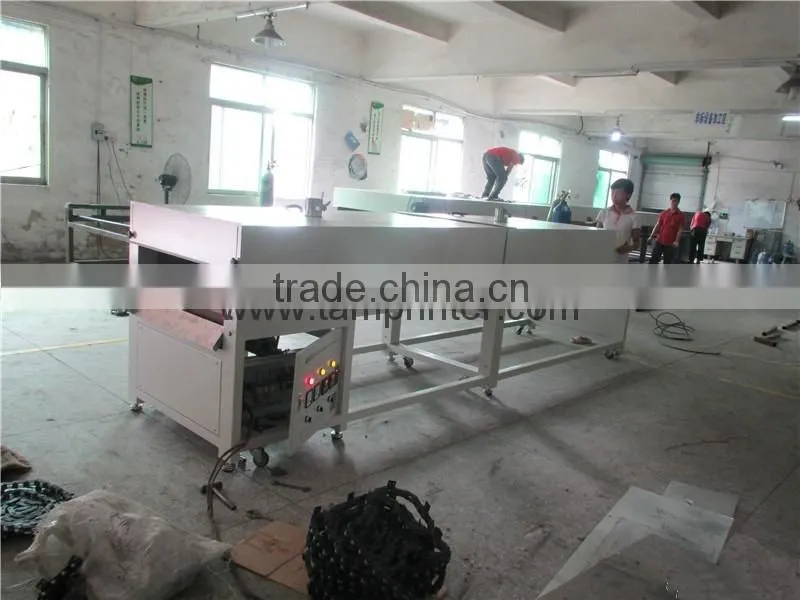

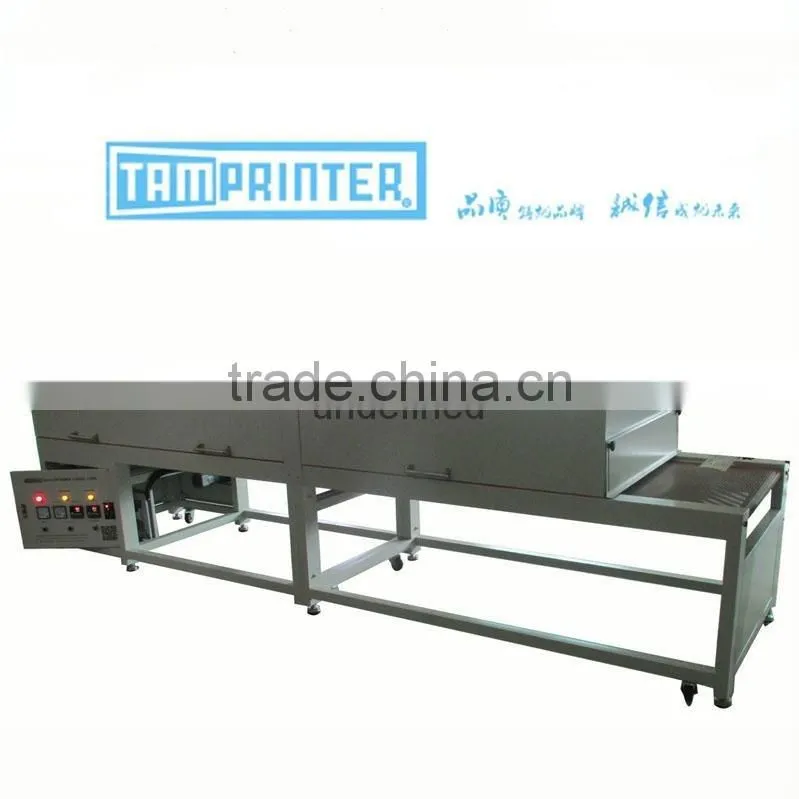

TM-IR800-4 4m 230 Degree silicone Swimming Cap infrared tunnel oven
Product Description
Machine Size |
L 4m*W1m*H1.2m |
Heating length |
3500mm |
Inlet length |
500mm |
Width of mesh belt |
800 mm |
Mesh belt material |
UV-resistant Teflon mesh belt |
Controllable temperature |
0~230 °C |
Belt height from the ground |
800mm |
Belt speed |
0~25m/min adjust |
Power |
15kw |
voltage |
380v 3 phase 4 wire |
L*W*H |
4150*1160*1370mm |
Weight |
600kg |
Technology
Tamprinter Infrared Convection Oven (shortwave)
(1) Imported shortwave infrared light radiation heating tube furnace used in all mirror panel system, equipped with special light tube reflector, can be 100% of all light reflection to the surface.
(2) Using a uniform hair dedicated exclusively internal circulation duct temperature is very uniform.
(3) Equipped with imported light pipe dedicated controller, the frequency of light waves even control, the light pipe 100% to play full-wave energy, using current stable of 100% energy saving effect.
(4) Stainless steel chain and belt driven , easy to go astray , to load heavy metal category of products, with a special adjustment of the speed and stability.
(5) Light wavelength 0.76-1.6um, the strongest penetration, suitable transformer plant, electrical plant and other metal coil dipping baked or roasted dispensing electronic products.
Tamprinter Infrared Convection dryer (MW)
(1) medium-wave infrared light tubes imported radiant heating furnace used in all mirror panel production, with special reflector tube light, can be 100% of all light reflection to the surface.
(2) Using a uniform temperature of the inner loop hair exclusive special duct temperature is very uniform.
(3) Equipped with imported light pipe dedicated controller, the frequency of light waves even control, the light pipe 100% to play full-wave energy, using current stable of 100% energy saving effect.
(4) Imported Teflon Wimbledon with a high resistance to rotation, suitable for the size class range of products, with a power converter, speed and stability.
(5) Light wavelength 0.76-3.6um, the surface absorbed the best baked products, such as glass, printing, textile printing, spray drying surface coating industry.
Tamprinter Infrared Convection tunnel
Drying principles outlined
Conventional oven heating pipe heating using heat from the heated surface of the object to its internal thermal conductivity , so the heating process is slow, uneven heating , and some products first love hot conjunctival surface cause internal moisture cannot get out , easy to produce bubbles or deformation.
Infrared Convection Oven is the use of energy efficient infrared light tubes imported produce infrared electromagnetic radiation directly to the object, so that objects within the molecular oscillation, internal and external heat simultaneously, quickly and thoroughly remove the moisture inside the object, the surface will not get out of the water inside the first dry produce surface blistering, internal roasted quit and so on.
Energy efficient advantages:
(1)Energy: Infrared Convection Oven power than ordinary furnace small 1 / 3, warming fast start (2-10 points can be raised to 200 degrees), the thermostat automatically reduces small current wave (energy savings of 30% -70 %)
(2) Efficient : Infrared Convection Oven direct radiation makes the product molecular oscillation product , so the product simultaneously inside and outside heat, fast drying product moisture , direct -saving 5-10 times .
(3) Quality and stability: infrared light to heat pipe heat inside and outside at the same time, the internal water discharged in time, the product surface is not easy to blister, uniform color appearance.
(4)Green Explosion : Infrared Convection Oven baking time is short, short residence time before curing , the time to reduce pollution and harmful gases discharged in time , not stuffy harmful in the furnace , the furnace safe and clean , easy to produce flammable gas deflagration and other risks
