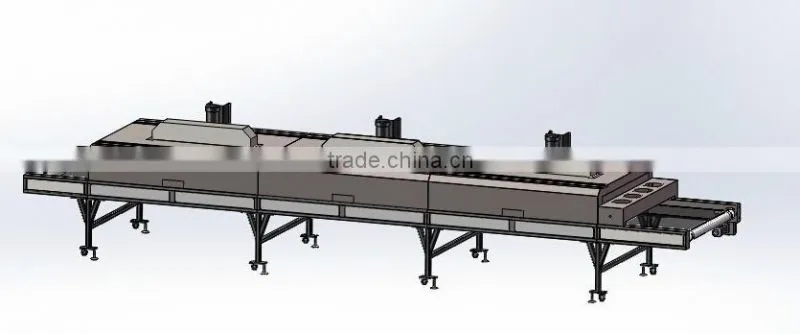

Help CenterTM-IR5825 Series Conveyor Dryer for Sale
Related Products
-
TM-IR800y Industrial Fabric Yarns Mid-wave Infrared Tunnel OvenUS$ 2,500 - 5,000MOQ: 1 Set -
IR-T650 T-shirt IR Tunnel Oven Conveyor Drying MachineUS$ 2,000 - 2,500MOQ: 1 Set
-
15m Glass Infrared IR Tunnel Dryer TM-IR1500-15US$ 10,000 - 13,800MOQ: 1 Set
-
TM-IR800-4 4m 230 Degree Silicone Swimming Cap Infrared Tunnel OvenUS$ 1 - 4,500MOQ: 1 Set
-
Infrared Tunnel Dryer TM-IR600-15US$ 1 - 4,200MOQ: 1 Set
CONVEYOR DRYER MODELS
IR tunnel HS CODE / NCM 8516609000
Model No-TM-IR 5825
Parameter |
Power/Specification |
Remarks |
Dryer Length |
5.8 Meter |
|
Dryer Width |
1.25 Meter |
|
Belt Width |
1 Meter |
|
Belt Type |
Teflon Belt |
|
In-feed |
0.75 Meter |
|
Out-feed |
1.05 Meter |
4 cooling fans on exit |
Total Oven |
2 Pcs |
|
Total Oven Length |
4 Meter |
|
Each Oven Length |
2 Meter |
9 Tubes/ Oven |
Total Tubes |
18 Pcs |
|
Tube Type |
Ceramic |
|
Tube Power |
1000 W each |
|
Working Power |
3 Phase- 380V/50Hz |
|
Belt Motor Power |
90W- 5IK90RGU-CF |
Brand- OTG/VTV- 220V/50Hz AC |
Contactor |
90 Amp- 2 Sets |
Brand- Chint/Delixi |
Temp Range |
0- 250 Degree C |
|
Temp Tolerance |
+/- 5 Degree C |
|
Common Remarks:
All Belt rollers/ belt adjustable rollers should be with best grade nickel
Each machine should have one MCCB inside of control panel
Each machine Belt Speed Control should be stable, noise free belt transmission
Each oven should be controlled by individual Temperature Control Unit
CONVEYOR DRYER MODELS
Model No |
Unit Price Set |
5825 |
3600USD |
5845 |
3733USD |
6625 |
4133USD |
6645 |
4267USD |
7825 |
4933USD |
7845 |
5067USD |

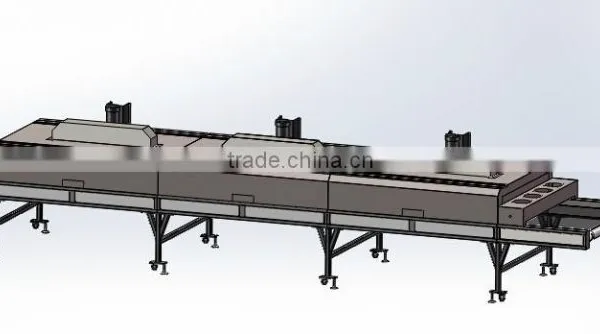

Product Image:
