Corrugated Box Stitcher Carton Stapler Stitching Machine

Corrugated Box Stitcher Carton Stapler Stitching Machine photo-1

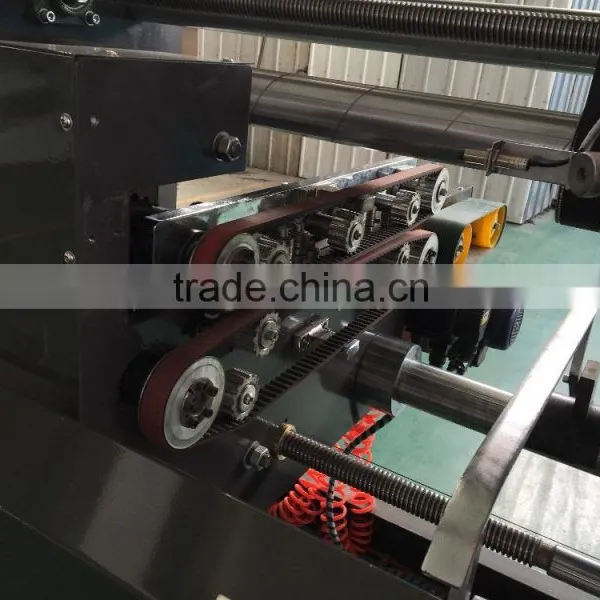

Corrugated Box Stitcher Carton Stapler Stitching Machine photo-2
Corrugated Box Stitcher Carton Stapler Stitching Machine photo-3

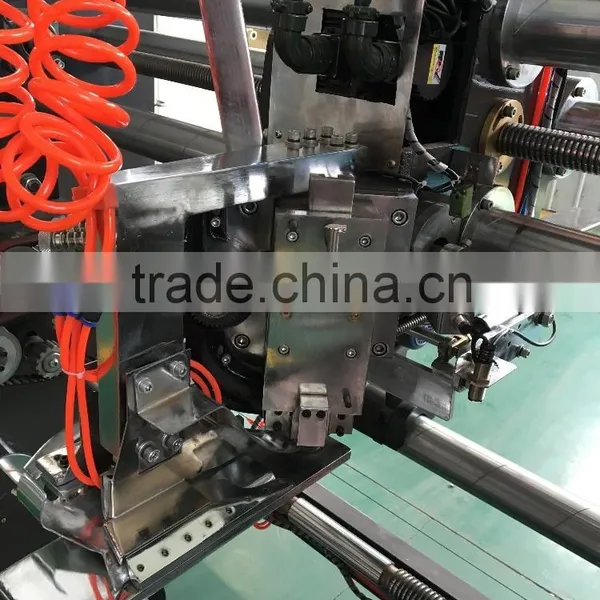

Corrugated Box Stitcher Carton Stapler Stitching Machine photo-4

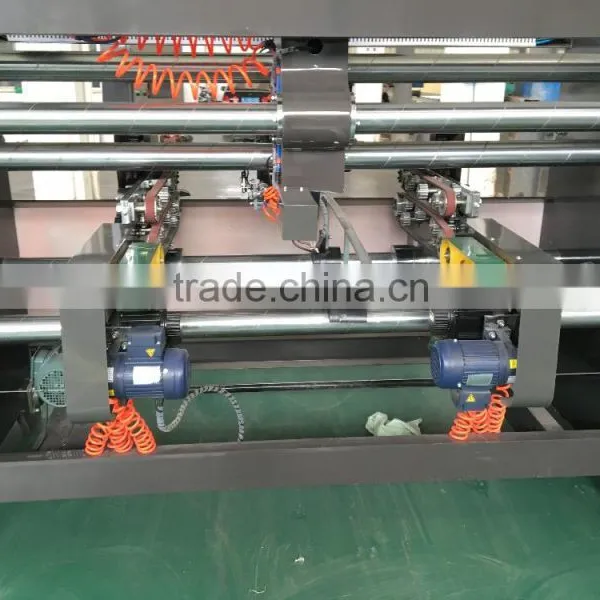

Corrugated Box Stitcher Carton Stapler Stitching Machine photo-5

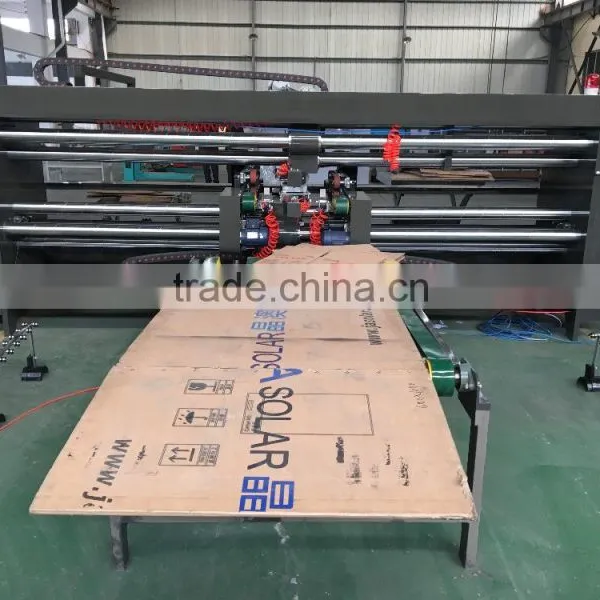

Corrugated Box Stitcher Carton Stapler Stitching Machine photo-6
US$ 10,000 - 20,000 MOQ: 20 Sets
Key Specifications
Get Latest Price
Type:
Corrugated box stitcher carton stapler stitching machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Type Corrugated box stitcher carton stapler stitching machine

Corrugated box stitcher carton stapler stitching machine



Corrugated box stitcher carton stapler stitching machine







Features



1. Speeding semi-auto stitcher is a high speed operation and high efficiency of the nail molding cartons machine. It can promote product output efficiency and expands the capacity, also provide more flexible production scheduling for the producer, and can save time, materials and labor costs at the same time.



2. Servo system speeding semi-auto stitcher can nail 450 times at one minute. It take one minute to change size.



3. The user interface is easy to operate, no training necessary.



4. Single, double and fortified nail can be nailed at one time. It suits for different types of customers on the requirement of nails.



5. Counter in the feeding unit can set the number of the pack, the box will come out inpack.



6. The bench adopts the automatic system to control the bench lifting and descending which can be automatically lifted and descended in accordance with the height of paper stacking.



7. All the bearings from the important parts of the machine except the ballbearing uses Japan brands, such as NSK etc.







Specification



Model PL-2800mm
Machine Speed 450Nails/min
Stitching Distance 30-100mm
No of Stitching 2-99nails
Paperboard Thickness 3-10mm
Stitching Wire  17#(2.0X1.0mm)  18#(1.8x0.8mm)
Max Length:(L+W)X2  2800mm
Min Length:(L+W)X2  606mm
Max Widht:  1515mm
Min Width  300mm
Side Mark  125-500mm
Stitching Flap  30-50mm
The First Stitching  20-380mm
Total Power  4.5kw
Machine size  2520x1790mm
Machine weight  2000kg
Feeding Height  900mm
Floor Area 2800x2600mm





More Picture



Corrugated box stitcher carton stapler stitching machine



Corrugated box stitcher carton stapler stitching machineCorrugated box stitcher carton stapler stitching machine



Corrugated box stitcher carton stapler stitching machineCorrugated box stitcher carton stapler stitching machine



Corrugated box stitcher carton stapler stitching machine



Packaging&Shipment



Corrugated box stitcher carton stapler stitching machine



Corrugated box stitcher carton stapler stitching machine



Corrugated box stitcher carton stapler stitching machine
