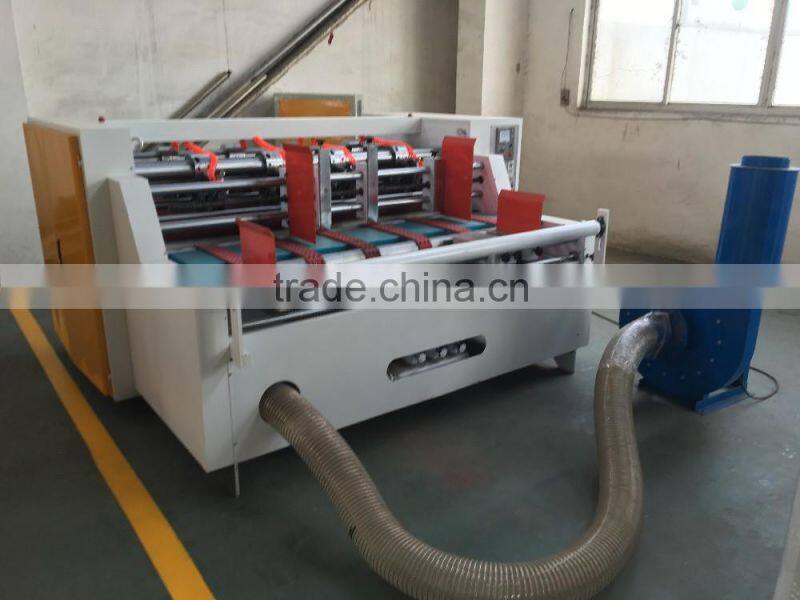

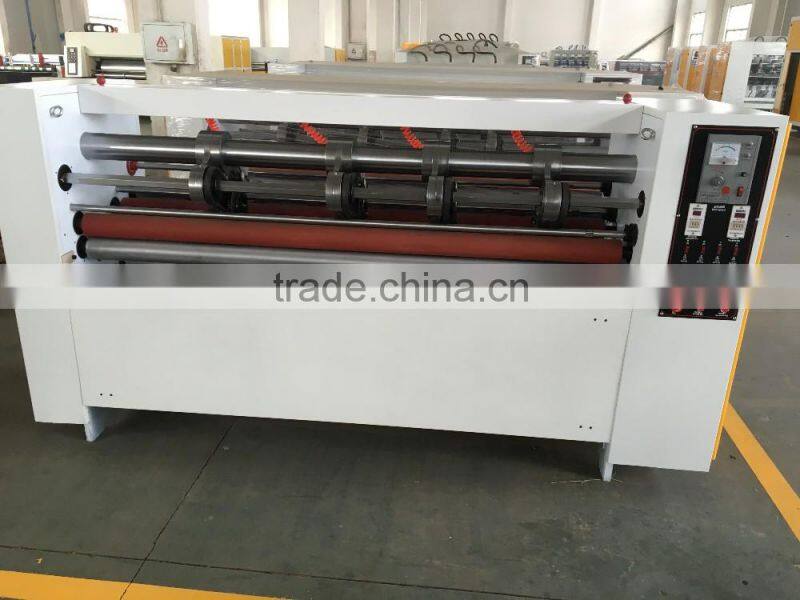

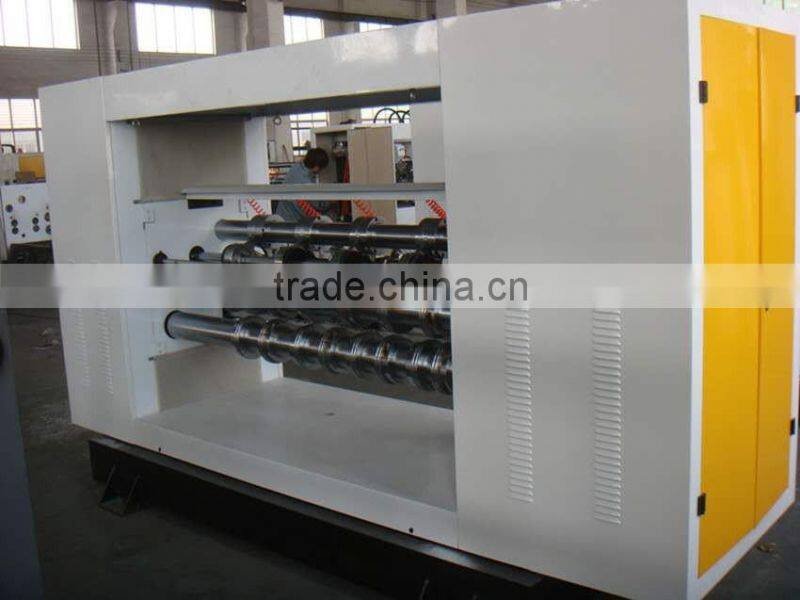

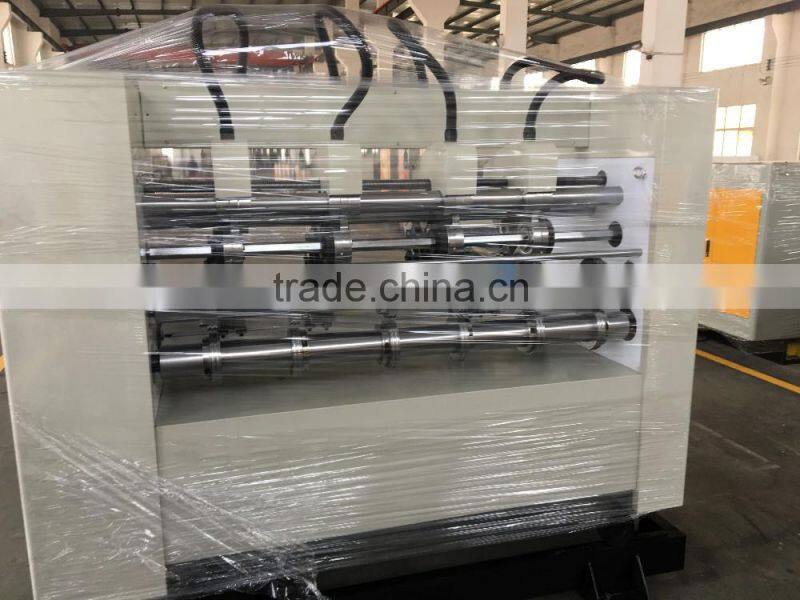

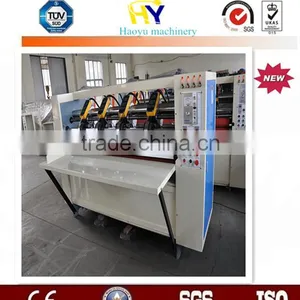

Thin Blade Slitter Scorer Corrugated Cardboard Machine

US$ 2,000 - 3,800 MOQ: 1 Set

Key Specifications

Type:

Dongguang Haoyu Carton Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Type Thin Blade Slitter Scorer Corrugated Cardboard Machine

Thin blade slitter scorer machine used corrugated board

1. The blades slitting paper adopt thin blade technology, the thickness of blade is only 1.2mm.after

thin blade slitting , the raw edge of carboard is more tidy, no burr, without flattening,and the

straightness is good ,cardboard quality has been greatly enhanced.

2.grind blade device:the blades can be grinded by two ways ,manually and automatically ,grinding

while working ,improve working efficiency.

3.indentation function:indentation technology is from French,with hard pressure soft,suitable for

high,medium ,low-grade cardboard,indention ,without tearing appearance.

4.safe protective screening :the machine runs fast ,the blades operating speed is also fast ,avoid thin

blade broken,in order to avoid hurt the safe protective screening can guard worker.the

safe protective screening also has automatic outage function,automatic lighting function,so the

customer can operate conveniently

5.thin blade transmission,adopt Synchronous belt(import),transmission noise is small,long using

life.

6.electrical components,some of them are from Siemens,Schneider

Specification

Model		HY-2000	HY-2300	HY-2600
Machine dimension(mm)		26007501400	29007501400	32007501400
Motor power		3	4	4
Max slitting width(mm)	Inverse	1900	2200	2500
Max slitting width(mm)	Positive blade	1800	2100	2400
Min slitting width(mm)	Inverse	305	305	305
Min slitting width(mm)	Positive blade	140	140	140
Min slitting length(mm)		435	435	435
Min scoring width(mm)	Positive scoring	30	30	30
Min scoring width(mm)	Inverse scoring	80	80	80
Scoring height(mm)		0-10	0-10	0-10
Blade(mm)		φ200×122×1.2
Slitting scoring composed type		Three blade Four scoring/Four blades Six scoring/Five blade Eight scoring
