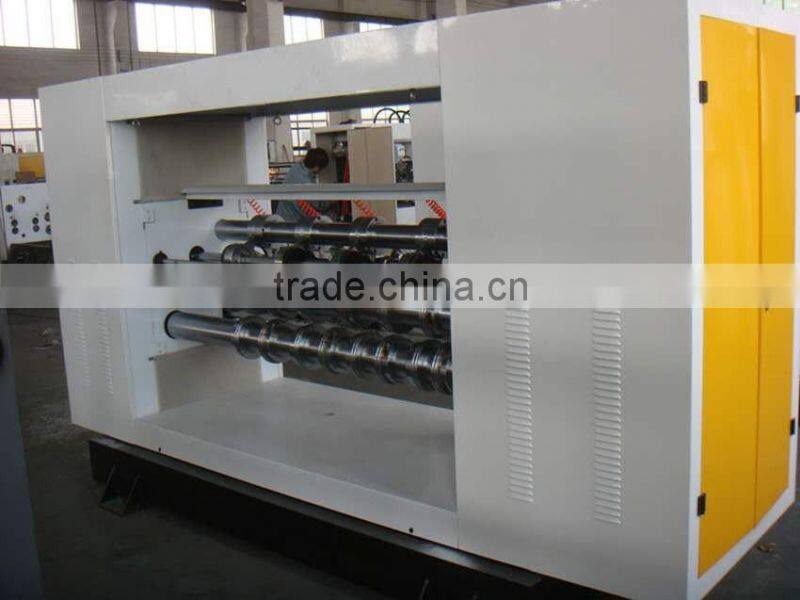

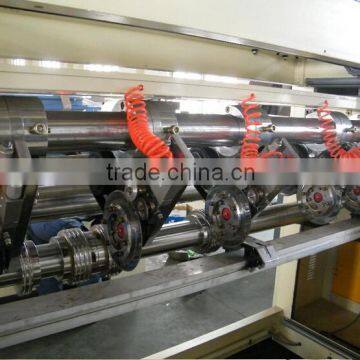

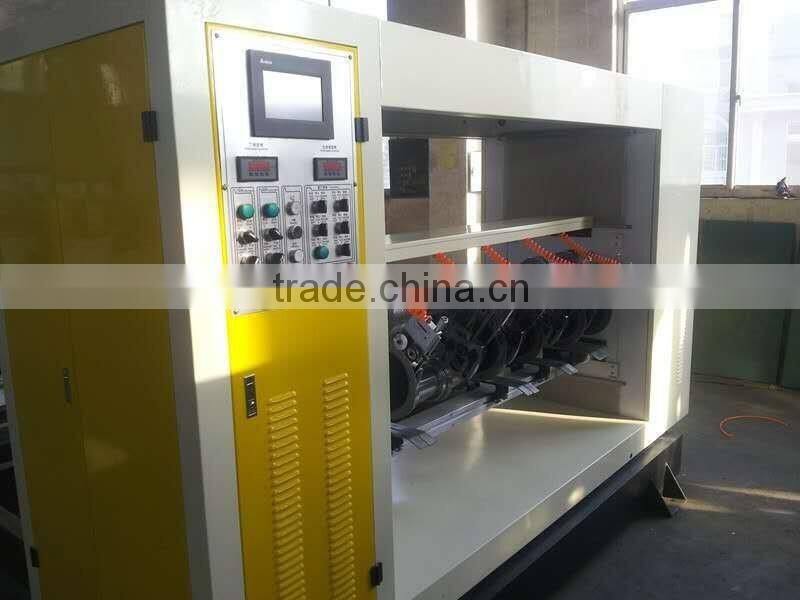

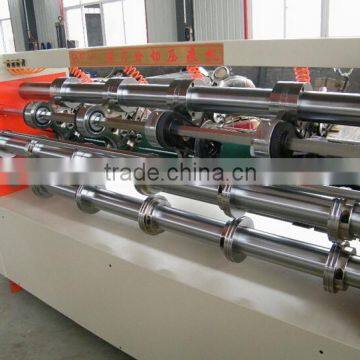

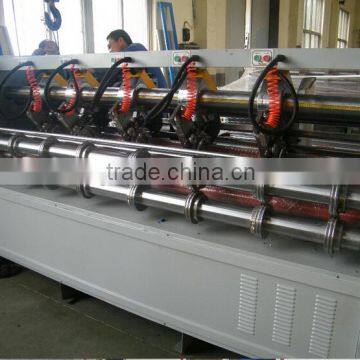

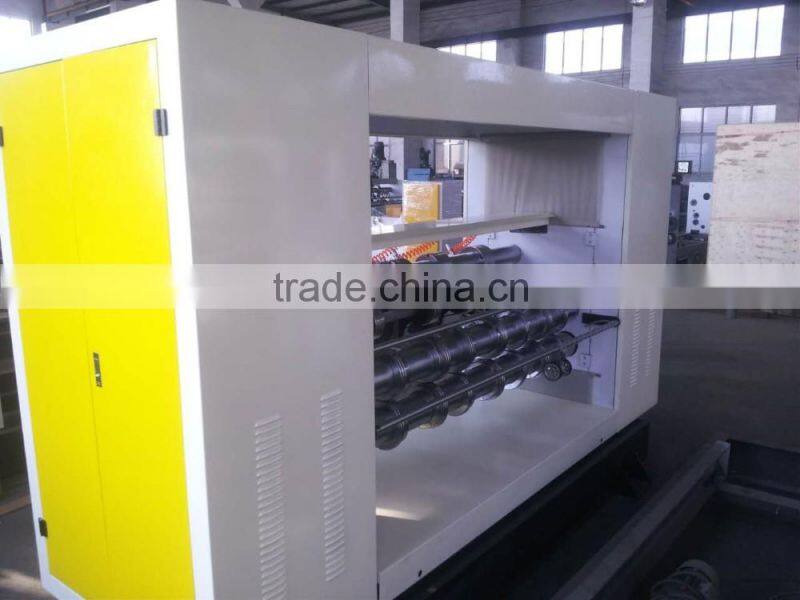

Semi-automatic Computer Lift -downThin Blade Slitter Scorer

FOB Price

USD $2,000 - $3,000 / Set

1 Set(Min.Order)

Product Details

Type:

Semi-automatic Computer Lift -downThin Blade Slitter Scorer

Semi-automatic Computer Lift -downThin Blade Slitter Scorer

ing paper feeding type, smoothly;

2.Thin knife slitting, thickness of the blade: 1mm;

3.Grind the blade edge with grindstone in two methods: automatically or manually;

4.Sharp blade edge can slit the cardboard smoothly and neat.

5.Work process: Prepressing, slitting and creasing. Creasing line without crack.

6.The machine can be provided to corrugated paperboard production line.

Parameter	Unit	Model
Parameter	Unit	BFY-2000	BFY-2500
Feeding width	mm	2000	2500
Max. speed	m/min	150	150
Slitting blade	piece	3-5	3-5
Min. Separate slitting width	mm	200	200
Min. creasing width	mm	200	200
External diameter of thin & round blade	mm	260	260
Thickness of thin & round blade	mm	1	1
Power	kw	4	4
Weight of machine	kg	2000	2500
Exterior dimension	mm	2630x1791x1130	3050x1791x1130
