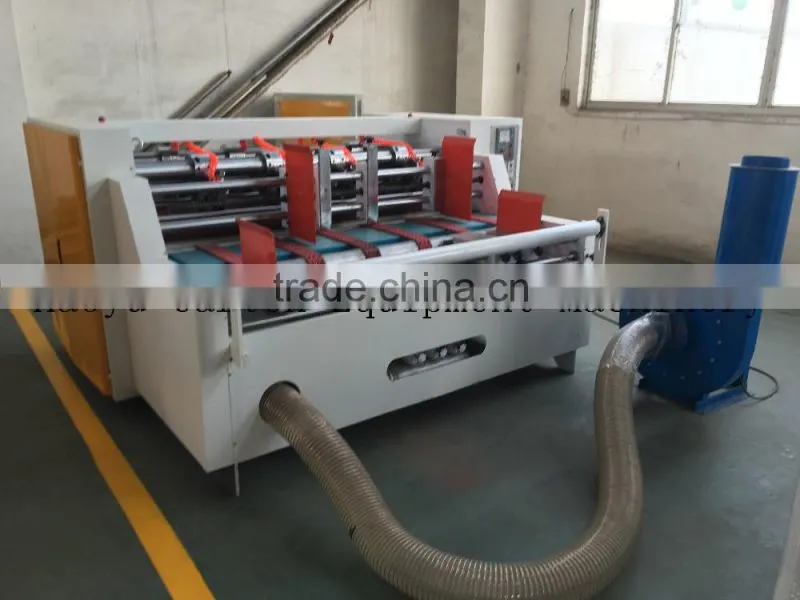

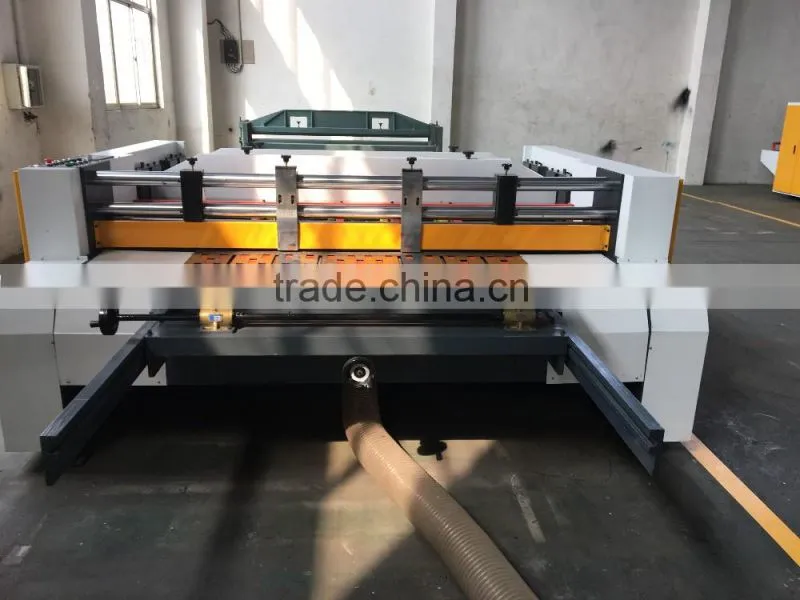

Corrugated Cardboard Thin Blade Slitter Scorer Machine

US$ 3,000 - 4,000 MOQ: 1 Set

Key Specifications

Type:

corrugated cardboard thin blade slitter scorer machine

Dongguang Haoyu Carton Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Type corrugated cardboard thin blade slitter scorer machine

thin blade slitter scorer for cardboard making

Character

1,Slitting Part :adopt high quality tungsten steel blade, sharp and long work-life ,slice more tidy, non-pressing and non-burr.

2,Scoring Part :adopt 5 points scoring ,scoring distance in-phase adjust ,blazonry and easy to bend the carton sheet.

3,Grinding Part :adopt automatic and manual two kinds pneumatic grinding type ,It could be grinding when working which improves wok efficiency.

4,Electric control lift-down and correct error ,easy to operate , suit for different requirements.

5,Adopt China famous brand or imported electric element ,dependable performance.

6,Adopt synchronous belt drive ,low noisy and work steady.

7,It could adopt double machine type ,easy and fast change cutting order .

8,Max running speed for production line :150m/min

Technical parameters

Model		2000	2300	2600
Machine dimension(mm)		320012002200	350012002200	380012002200
Power		8.5kw	8.5kw	8.5kw
Max slitting width	Inverse blade	1800mm	2100mm	2400mm
Max slitting width	Positive blade	1800mm	2100mm	2400mm
Min slitting width	Inverse blade	140mm	140mm	140mm
Min slitting width	Positive blade	140mm	140mm	140mm
Min scoring width	Positive scoring	30mm	30mm	30mm
Min scoring width	Inverse scoring	80mm	80mm	80mm
Scoring height		0-10mm	0-10mm	0-10mm
Blade(mm)		φ2001221.2	φ2001221.2	φ2001221.2
Blade & Scoring Composed Type		Three blade Four scoring/ Four blade Six Scoring/ Five Blades Eight scoring
