Home > Products > Hot stamping machine > TAM-170-C Small Manual Hot Stamping Machine for Leather

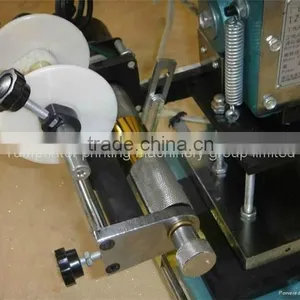

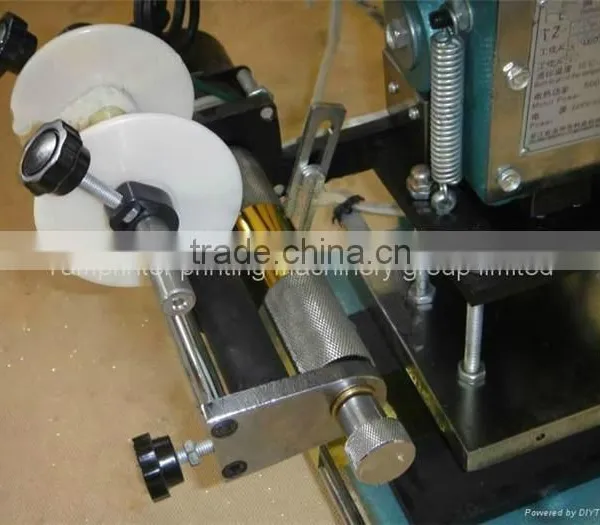

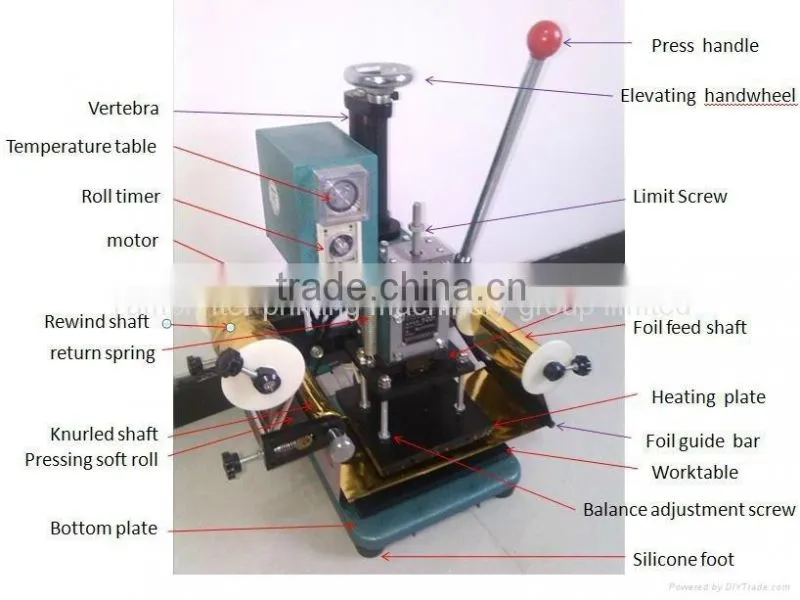

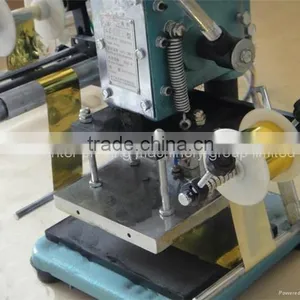

TAM-170-C Small Manual Hot Stamping Machine for Leather
- 50 Set / Sets per Month
- Shenzhen China
- T/T Credit Card PayPal
- TAM-170-1 Semiautomatic Manual Leather Handbag Hot Stamping Machine
- TAM-170 Manual Leather Handbag Hot Stamping Machine with Letter Mould
- TAM-972 Pneumatic PVC Card Small Hot Foil Gold Stamping Machine Quality Choice
- TAM-310-1Manual Hot Foil Stamping A4 Wedding Card Embossing Machine
- TAM-320-H middle size hot stamping machine for make-up bottle printing
- Tam-358 Pneumatic Bronzing Machine for Leather PVC Card Tipping
Product Details
Condition: | New | Plate Type: | Letterpress | Place of Origin: | Guangdong, China |
Brand Name: | Tamprinter | Model Number: | TAM-170-C | Usage: | Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer |
Automatic Grade: | Semi-Automatic | Voltage: | 220V/50Hz | Gross Power: | 500W |
Dimensions(L*W*H): | 390X370X570mm | Weight: | 29KGS | Certification: | CE Certificate |
After-sales Service Provided: | Overseas third-party support available |
Packaging Details
usually plywood, TAM-170-C Small Manual Hot Stamping Machine for Leather
Product Description
TAM-170-C Small Manual Hot Stamping Machine for Leather
Parameter:
Name | Manual Plane Hot Stamping Machines |
Model | TAM-170-C |
Product shape | Plane |
Impression area | 160X150mm (6.29"X5.9") |
Power | AC 220V 50HZ |
Electrothermal Power | 500W |
Operation | manual(60degree-300degree) |
Stamping speed | 400 PCS/H |
Dimensions | 390X370X570mm/40X60X60CM |
Machine Weight | 29+8KG |
Application:

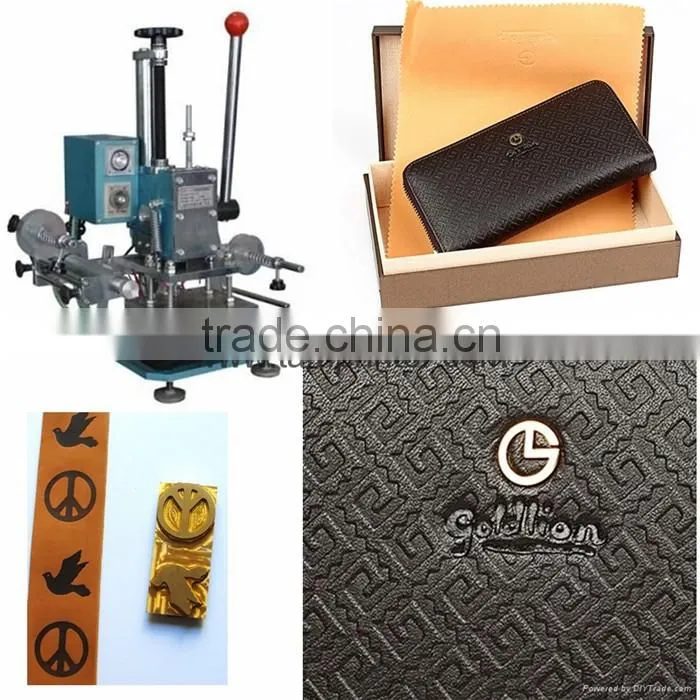

This hot stamping machine is fit for stamping on the surface of plane objects with small area.
Mainly applied to the field of craft, fabric handbag,leather, paper and plastic etc.
Characteristics:
1. Manual stamping, auto foil feeding, without compressed air, leads to easy operation.
2. Stamping temperature adjustable range from temperature 60 degree to 300 degree.
3. The height of the stamping head adjustable accordingly.
4. Automatic foil feeding and rolling with adjustable function.
Comparison between manual and Auto hot stamping machine
(1) In theory, manual, pneumatic and hydraulic hot stamping machine have the same Principle, that is to say the object will be hot stamped by the same way of heat transfer by the machine.
(2) One difference is there have 2 types: manual and automatic; another is the different size of the stamping pattern.
(3) Manual was fit for the object with low requirement effect and small stamping area. To the contrary, the first-class effection and large stamping area will be done by both pneumatic and hydraulic.
(4) What is more, they are fit for stamping the object with high quality.
In a word, hot stamping machine can transfer the color from stamping foil to the object by heat press in a high temperature.
Payment terms: T/T, L/C, Western Union, Paypal
Packing: Plywood case/ wooden case as required
Lead time: 5 days after confirmed payment
Sku: 50sets
Standard certification: CE
Trademark: Tamprinter
Origin: China(Mainland)
Minimum Order: 1 set
Production Capacity: 10sets/Month
Packing: Plywood Case/Wooden Case/as Required
Price term: CIF/FOB/CFR/FCA/EXW
