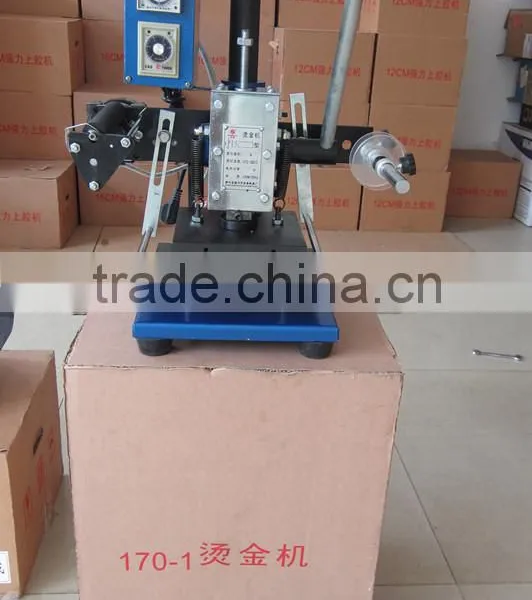

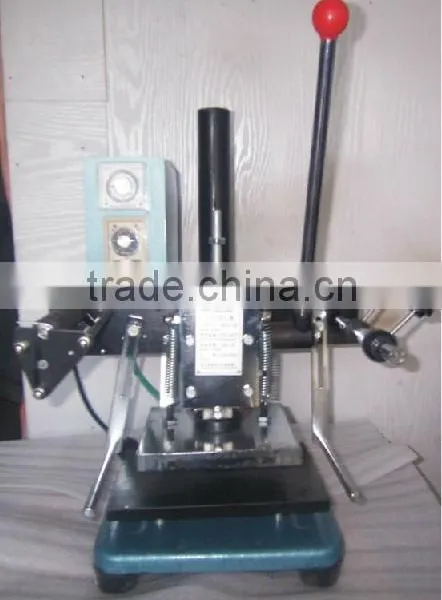

TAM-170-1 Semiautomatic Manual Leather Handbag Hot Stamping Machine
Parameter:
Name |
Manual Plane Hot Stamping Machine |
Model |
TAM-170-1 |
Product shape |
Plane |
Impression area |
160X150mm(6.29"X5.9") |
Power |
220V |
Electrothermal Power |
500W |
Operation |
Manual(60degree-300degree) |
Stamping speed |
400 PCS/H |
Dimensions |
340X350X640mm |
Machine Weight |
30KG |
Application:
This hot stamping machine is fit for stamping on the surface of plane objects with small area. Mainly applied to the field of craft,fabric handbag, leather, paper and plastic etc.
Manual Hot Foil Machine TAM-170-1 has been applied to surface stamping and logo for shoes, PVC card, rubber, plastic Products, leather, wood, etc.
Advantages:
(1) Foil Stamping Machines TAM-170-1 use motor reduction gear to transmit printing roll ribbons with their lengths being properly controlled.
(2) Having the advantages of convenient operation, high automation, high pressing pressure and beautiful appearance, they are ideal equipments for stamping and impressing.
Characteristics:
1. Manual stamping, auto foil feeding, without compressed air, leads to easy operation.
2. Stamping temperature adjustable range from temperature 60 degree to 300degree.
3. The height of the stamping head adjustable accordingly.
Comparison:
1, In theory, manual, pneumatic and hydraulic hot stamping machine have the same principle, that is to say the object will be hot stamped by the same way of heat transfer by the machine.
2, One difference is there have 2 types: manual and automatic; another is the different size of the stamping pattern. Manual was fit for the object with low requirement effect and small stamping area.
3, To the contrary, the first-class effects and large stamping area will be done by both pneumatic and hydraulic. What is more, they are fit for stamping the object with high quality.
4, In a word, hot stamping machine can transfer the color from stamping foil to the object by heat press in a high temperature.
Payment terms: T/T, L/C, Western Union, Paypal
Packing: Plywood case/ wooden case as required
Lead time: 5 days after confirmed payment
Sku: 50sets
Standard certification: CE
Trademark: Tamprinter
Origin: China(Mainland)
Minimum Order: 1 set
Production Capacity: 10sets/Month
Packing: Plywood Case/Wooden Case/as Required
Price term: CIF/FOB/CFR/FCA/EXW
