TAM-320-H Hydraulic Pressure Embossing Machine Factory Price
Technical parameters:
| 1 |
This series of stamping machine adopts hydraulic principles of design automation, convenient operation, high pressure, high degree of automation.suitable for larger thicker workpieces. |
|||
2 |
Type |
TAM-320-H Hydraulic pressure |
TAM-320-1Pneumatic |
TAM-320 Pneumatic |
3 |
Power |
380V 50HZ |
220V 50HZ |
220V 50HZ |
4 |
Heating power |
3KW |
2KW |
1KW |
5 |
Stamping area |
460 * 260mm |
460 * 260mm |
320X180mm |
6 |
Max product H |
200MM |
200MM |
200~350MM adjustable |
7 |
Berth length |
0-500mm roll |
0-500mm roll |
0-500mm roll |
8 |
Temperature range |
0-300 ℃ |
0-300 ℃ |
0-300 ℃ |
9 |
Foil paper bore |
16-25mm |
16-25mm |
16-25mm |
10 |
Working pressure |
4Mpa (about 2000~3000kg) |
1500~2000Kg |
500Kg |
11 |
cylinder |
160*130*130*50 |
100*130*130*50 |
|
12 |
Cylinder stroke |
100mm |
150mm |
100mm |
13 |
Dimensions |
1050 * 840 * 1910mm |
1050*840*1910mm |
820*710*1510mm |
14 |
Weight |
400kg |
347kg |
202.5kg |
15 |
air compressor |
2-3P |
2-3P |
|
16 |
gas storage capacity |
60 liters |
60 liters |
|
Beautiful appearance, convenient operation, high pressure, high degree of automation.
Advantages:
1 This series of stamping machine adopts hydraulic principles of design automation,
Send, receive paper with motor transmission,
Tape length can be arbitrarily controlled.
3 laminated stroke is high, suitable for larger thicker workpieces.
Product description:
1 pair of leather products, rubber products, technology products, plastic products, wood, paper and other surface bronzing, indentation, mark.

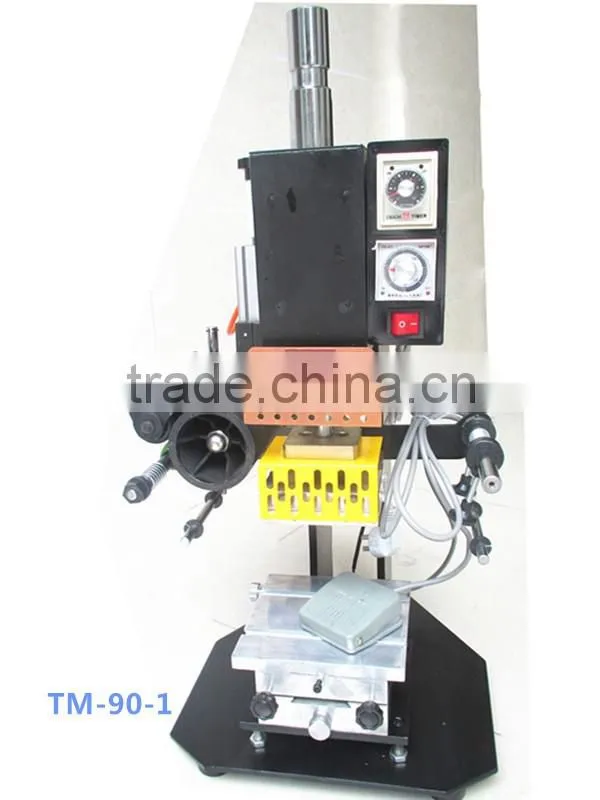

TAM-90-1 Pneumatic Plane Embossing Machine Factory Price
Parameter:
Name |
Pneumatic Plane Hot stamping machine |
Model |
TAM-90-1 |
Product thickness |
250mm |
Impression area |
80X110mm (3.1"X4.3") |
Power |
220V/50Hz |
Electrothermal Power |
500W |
Air Pressure |
0.5-0.7 |
Operation |
Pneumatic |
System control |
automatic |
Workbench |
can be adjusted |
Stamping foil winding length |
less than 120 mm |
Stamping speed |
800 PCS/Hr |
Dimensions |
400X430X750mm |
Machine Weight |
51KG |
Company Information
Tamprinter Printing Machinery Group Limited
As one of the most professional special printer supplier of Plastic Field in China,we have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products : Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Applications
It mainly applies to the printing process and pre-postpress of plastic and hardware products .Our equipment is also applicable to other material as glass, ceramic, wood, leather, cloth, etc.
Involved in the industry
Electronics, toys, gifts, clothing, stationery, cosmetics, washing products, chemicals, food, health product, pharmaceutical and packaging etc.
Advantages
1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.
2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.
3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.
Our first-class products and considerate services have won more than 80 countries, acceptance in Europe and the United States, Canada, Southeast Asia, the Middle East and other customer, and we enjoyed a high reputation in the market. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises.
