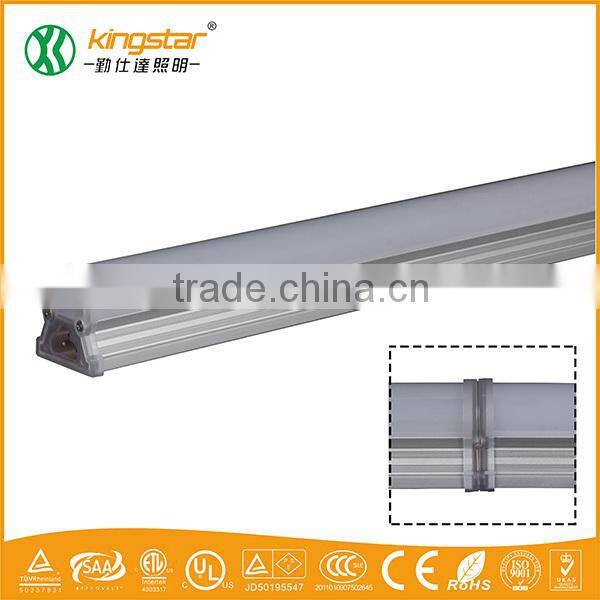

Shenzhen 4ft/5ft/6ft/8ft v Shape t8 Led Tube

FOB Price

Negotiable / Carton

5 Cartons(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD2835	Warranty(Years)	3
Input Voltage(V)	AC95-265V	Lamp Power(W)	18
Lamp Luminous Flux(lm)	1800	Lamp Luminous Efficiency(lm/w)	100
Color Temperature(CCT)	Other, 2800-3200K,4000-4750K,5500-6500K	Working Temperature(℃)	-20, 45
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum

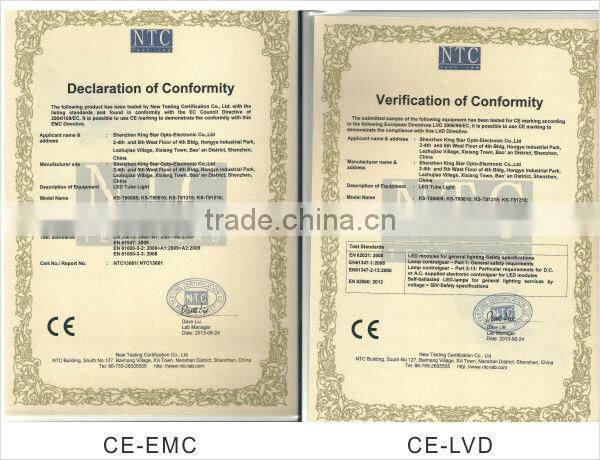

IP Rating	Other, IP20	Certification	C-tick, CE, EMC, ETL, LVD, SAA, UL
Place of Origin	Guangdong, China	Brand Name	Kingstar / OEM
Model Number	T8

Shenzhen 1200mm t8 led tube with No dark area for ornament, 18-20w t8 led tube lights

Product Description

LED T8 Tube Key Specification:

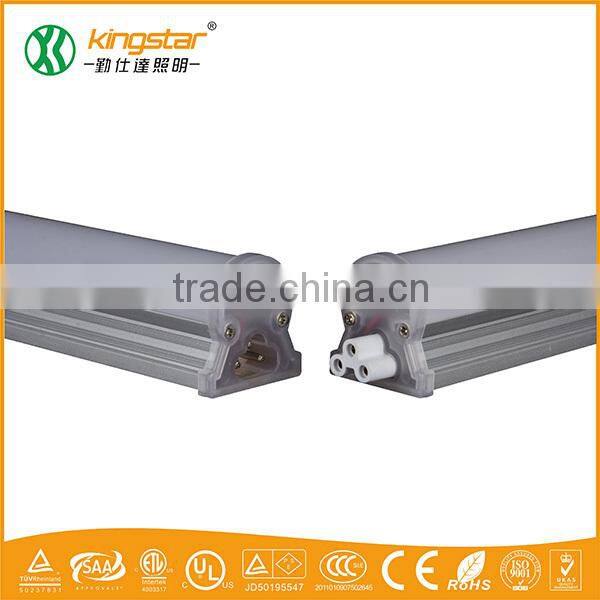

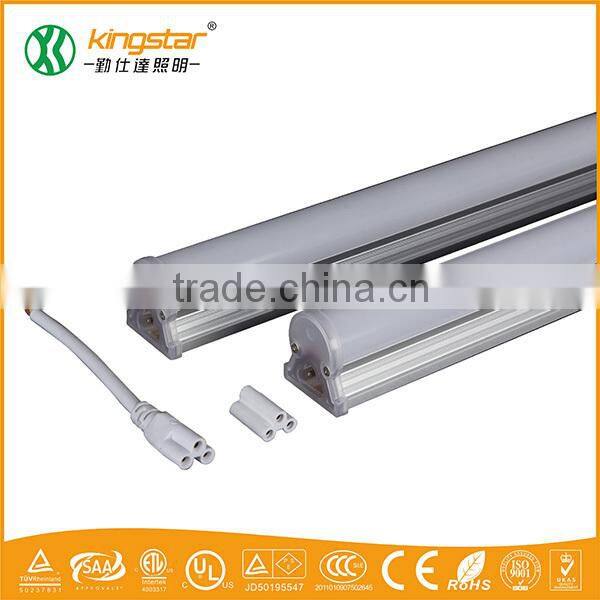

Images of TUV LED T8 Tube :

Detailed TUV LED T8 Tube Description:

With internal Non-isolated power supply.

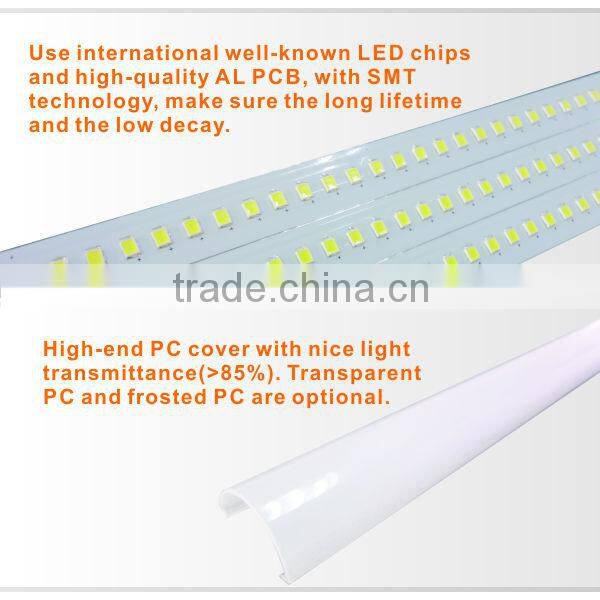

Use the most mature international well-known LEDSMD2835 as the light source, which can ensure the led tube brightness and long lifetime, also can reduce the light decay.
Use the high quality aluminum PCB for LED’s better heat dissipation.
High-grade PC cover with nice light transmittance (> 95%)
Transparent PC cover and frosted PC cover are available.
140 degrees beam angle makes the lighting effect better.
CRI (standard products)>70,it can be over 80 if required.
Ambient temperature:-20°C-40°C, surface temperature: 42°C-45°C
No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation, no frequency flash, instant startup, no hurting eyes.

LED T8 Tube Other Watts:

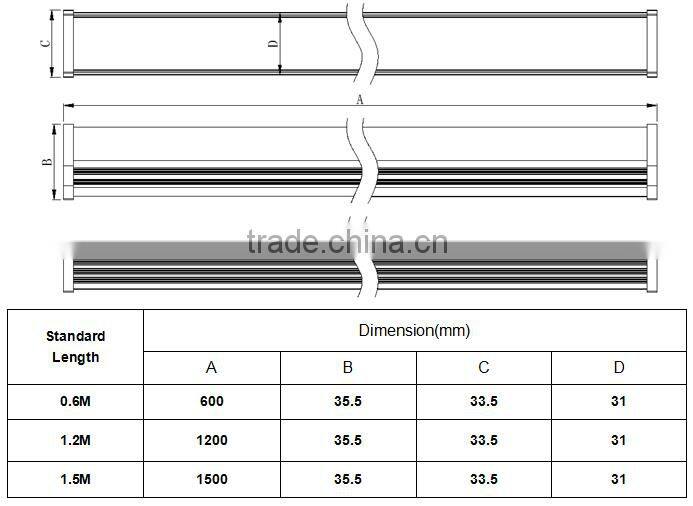

LED T8 Tube Dimension:

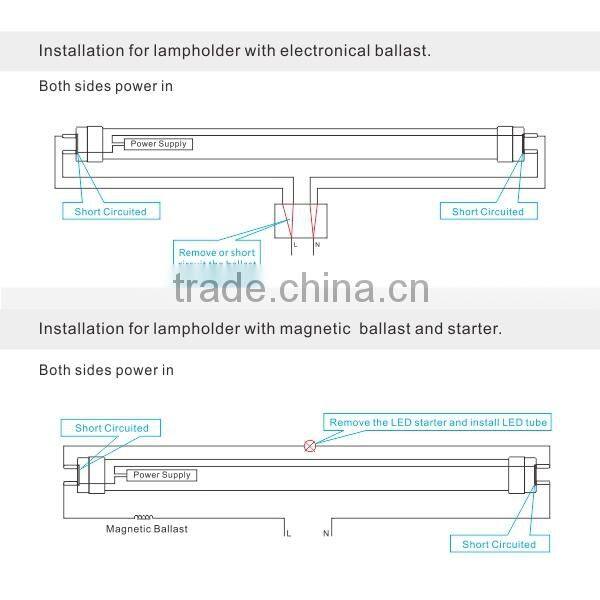

LED T8 Tube Installation:

Packaging & Shipping

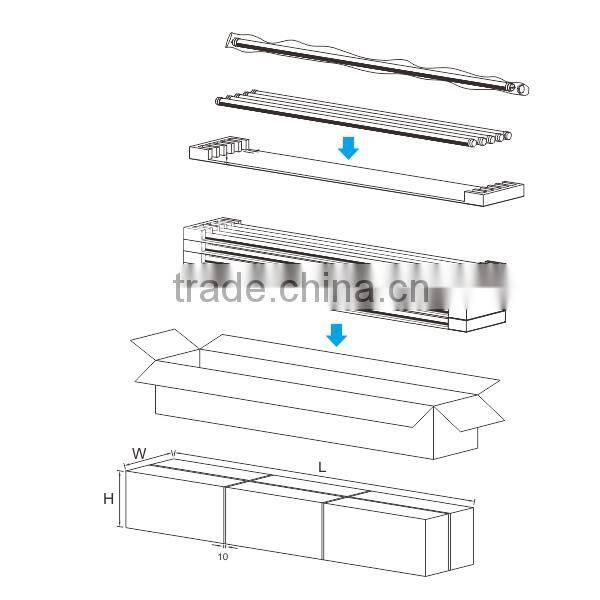

LED T8 Tube Package:

led t8 tube

LED Tube Length	Carton Dimension
LED Tube Length	L (max)	H (max)	W (max)	Q’ty / Carton	N.W	G.W
0.6M	670 mm	220 mm	220 mm	25 pcs	5.4kg	6.0kg
0.9M	970 mm	220 mm	220 mm	25 pcs	8.2kg	9.0kg
1.2M	1270 mm	220 mm	220 mm	25 pcs	11.0kg	12.0kg

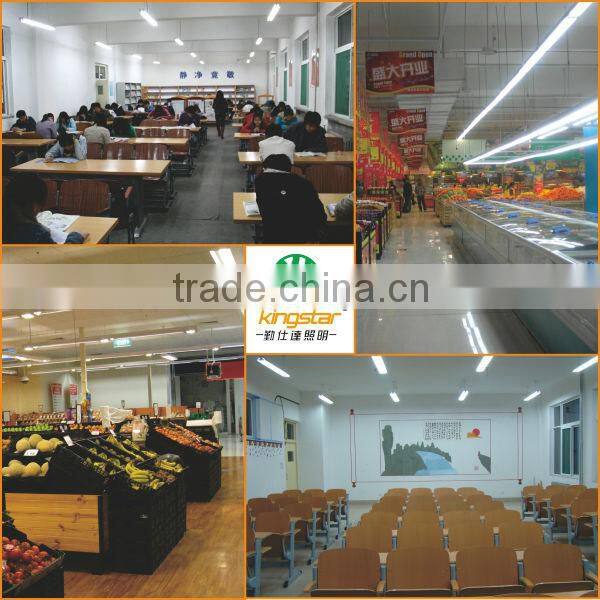

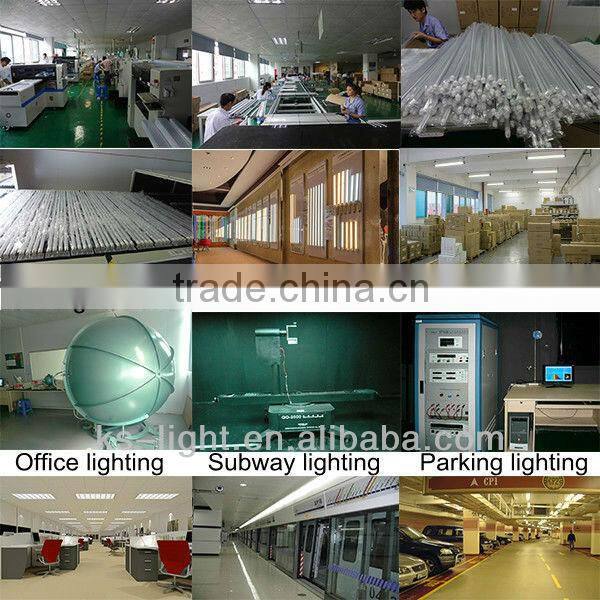

LED Tube Application Scenarios:
