Home > Lights & Lighting > LED Interior Lighting > LED Tube > 1.2M 20W High Light Efficiency Led T8 2014 New Led Tube UL for American

1.2M 20W High Light Efficiency Led T8 2014 New Led Tube UL for American

1.2M 20W High Light Efficiency Led T8 2014 New Led Tube UL for American thumbnail-1
1.2M 20W High Light Efficiency Led T8 2014 New Led Tube UL for American photo-1
US$ 14 - 16 MOQ: 1 Carton
Key Specifications
Get Latest Price
LED Light Source:
SMD2835 / 192pcs
Warranty(Years):
3
Input Voltage(V):
AC85-265
Contact Supplier Request Quote Chat Now
King Star Opto-Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD2835 / 192pcs
Warranty(Years) 3
Input Voltage(V) AC85-265
Lamp Power(W) 20
Lamp Luminous Flux(lm) 2000
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2800-3200K,4000-4750K,5500-6500K
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 30000
Lamp Body Material Aluminum
Certification CE, C-tick, EMC, ETL, LVD, SAA
Place of Origin Guangdong, China
Brand Name Kingstar / OEM
Model Number Other, T8.12P20S.3D62UX

Specifications

1.2M 20W high light efficiency led tube8 2014 new led tube
1. sdm2835
2.TUV standard
3.CRI>80, >100lm/W


Product Description



T8 LED Tube Key Specification:

1.2M  20W high light efficiency led tube8 2014 new led tube

LED Tube Length

1.2M

Model Number

T8.12P20S.3D62UX

Power

20W

Input Voltage

AC85-265V / 50-60Hz

Power Factor

>0.95

LED Type

SMD2835

LED Q’ty

192 pcs

CCT

2800-3200K / 4000-4750K / 5500-6500K

CRI

>72 or >80

Lumen

1900-2100 Lm

Beam Angle

140°

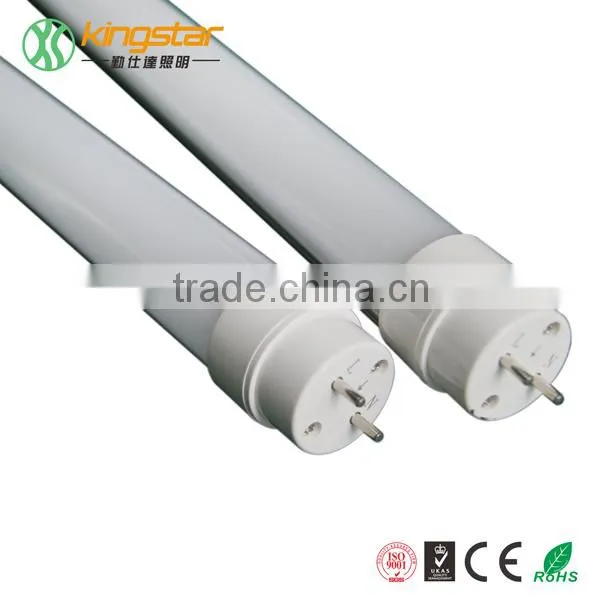

Images of T8 LED Tube:

1.2M 20W high light efficiency led T8 2014 new led tube UL for American1.2M 20W high light efficiency led T8 2014 new led tube UL for American1.2M 20W high light efficiency led T8 2014 new led tube UL for American

1.2M 20W high light efficiency led T8 2014 new led tube UL for American



Detailed T8 LED Tube Description:

1.2M  20W high light efficiency led tube8 2014 new led tube

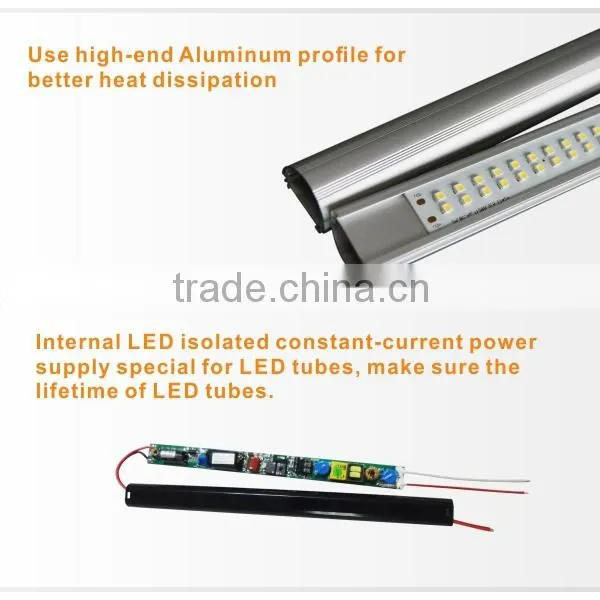

  •  With internal isolated power supply.
  •   Use the most mature international well-known LEDSMD2835 as the light source, which can ensure the led tube brightness and long lifetime, also can reduce the light decay.
  • Use the high quality aluminum PCB for LED’s better heat dissipation.
  •  High-grade PC cover with nice light transmittance (> 95%)
  • Transparent PC cover and frosted PC cover are available.
  • 140 degrees beam angle makes the lighting effect better.
  • CRI (standard products)>70,it can be over 80 if required.
  • Ambient temperature:-20°C-40°C, surface temperature: 42°C-45°C
  • No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation, no frequency flash, instant startup, no hurting eyes.



T8 LED Tube Other Watts:

LED Tube Length

0.6M

0.9M

1.5M

Model Number

T8.06P10S.3D62UX

T8.09P15S.3D62UX

T8.15P25S.3D62UX

Power

10W

15W

25W

Input Voltage

AC85-265V / 50-60Hz

Power Factor

>0.95

LED Type

SMD2835

LED Q’ty

108 pcs

156 pcs

234 pcs

CCT

2800-3200K / 4000-4750K / 5500-6500K

CRI

>72 or >80

Lumen

900-1100 Lm

1400-1600 Lm

2400-2600 Lm

Beam Angle

140°



T8 LED Tube CCT:



T8 LED Tube Dimension:

1.2M 20W high light efficiency led T8 2014 new led tube UL for American

Standard

Length

 LED Tube Dimension (mm)

A (max)

B (max)

C (max)

D (max)

0.6M

590

597

604

26

0.9M

894

902

909

26

1.2M

1198

1206

1213

26

1.5M

1498

1505

1512

26



T8 LED Tube Installation:

1.2M 20W high light efficiency led T8 2014 new led tube UL for American1.2M 20W high light efficiency led T8 2014 new led tube UL for American








Packaging & Shipping

T8 LED Tube Package:

1.2M  20W high light efficiency led tube8 2014 new led tube

1.2M 20W high light efficiency led T8 2014 new led tube UL for American

LED Tube

Length

Carton Dimension

L (max)

H (max)

W (max)

Q’ty / Carton

N.W

G.W

0.6M

670 mm

220 mm

220 mm

25 pcs

5.4kg

6.0kg

0.9M

970 mm

220 mm

220 mm

25 pcs

8.2kg

9.0kg

1.2M

1270 mm

220 mm

220 mm

25 pcs

11.0kg

12.0kg

1.5M

1570 mm

220 mm

220 mm

25 pcs

13.0kg

14.4kg



Application Scenarios:

1.2M 20W high light efficiency led T8 2014 new led tube UL for American



King Star Factory:

1.2M 20W high light efficiency led T8 2014 new led tube UL for American



1.2M 20W high light efficiency led T8 2014 new led tube UL for American

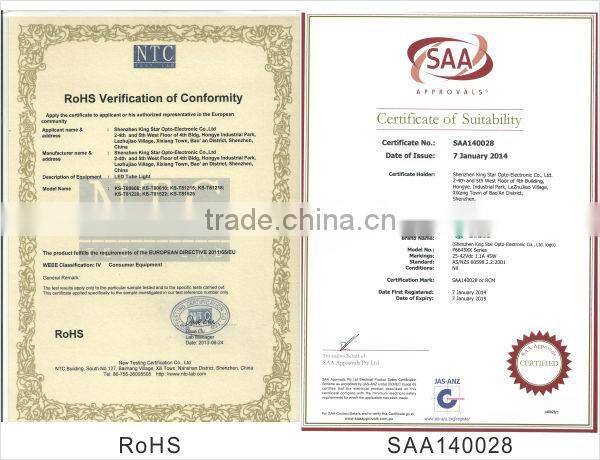

T8 LED Tube Certificates:

1.2M 20W high light efficiency led T8 2014 new led tube UL for American1.2M 20W high light efficiency led T8 2014 new led tube UL for American

1.2M 20W high light efficiency led T8 2014 new led tube UL for American






Our Services

Service and After Sale:

  1.   Your inquiry related to our products or prices will be replied in 24hrs.
  2.  Well-trained and experienced staffs to answer all your inquires
  3. 2 year warranty for our led products.
  4. After-sale tracking service for any our client.
  5. Payment :By T/T;L/C; Western Union;
  6. Delivery time: 3-4 days for sample,7-10 days for bulk order usually.
  7. Delivery way:DHL;UPS;TNT;FEDEX;EMS

led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube | led tube8 2014 new led tube
