Home > Lights & Lighting > LED Interior Lighting > LED Tube > 150cm 22w SMD2835 Rotatable Lamp Holder Tuv Led Tube

150cm 22w SMD2835 Rotatable Lamp Holder Tuv Led Tube

150cm 22w SMD2835 Rotatable Lamp Holder Tuv Led Tube thumbnail-1
150cm 22w SMD2835 Rotatable Lamp Holder Tuv Led Tube photo-1
US$ 14 - 16 MOQ: 1 Carton
Key Specifications
Get Latest Price
LED Light Source:
SMD2835 / 144pcs
Warranty(Years):
3
Input Voltage(V):
AC85-265
Contact Supplier Request Quote Chat Now
King Star Opto-Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD2835 / 144pcs
Warranty(Years) 3
Input Voltage(V) AC85-265
Lamp Power(W) 22
Lamp Luminous Flux(lm) 2000
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Other, 2800-3200K,4000-4750K,5500-6500K
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 30000
Lamp Body Material Aluminum
Certification CE, C-tick, EMC, ETL, LVD, SAA
Place of Origin Guangdong, China
Brand Name Kingstar / OEM
Model Number Other, T8.15P22S.3D61U

Specifications

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube
1. sdm2835
2.Rotatable 0-350 degree lamp holder


Product Description



LED Tube T8 Key Specification:

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube

LED Tube Length

1.5M

Model Number

T8.15P22S.3D61U

Power

22W

Input Voltage

AC85-265V / 50-60Hz

Power Factor

>0.95

LED Type

SMD2835

LED Q’ty

144 pcs

CCT

2800-3200K / 4000-4750K / 5500-6500K

CRI

>72 or >80

Lumen

2000-2200 Lm

Beam Angle

140°

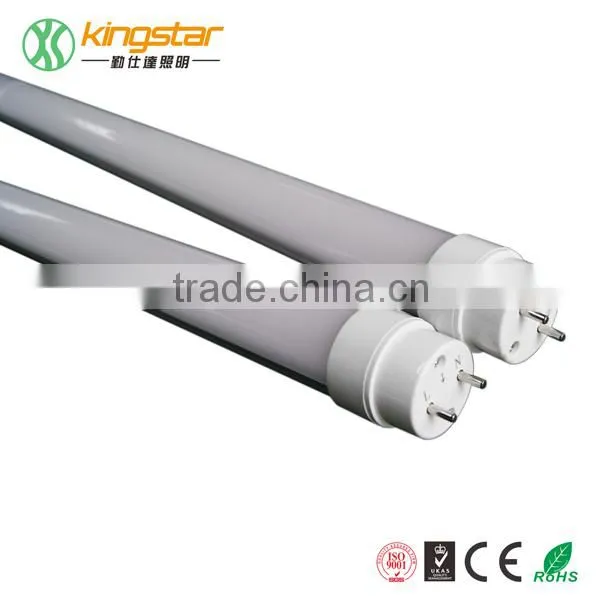

Images of LED Tube T8:

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube



Detailed LED Tube T8 Description:

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube

  •  With internal isolated power supply.
  •   Use the most mature international well-known LEDSMD2835 as the light source, which can ensure the led tube brightness and long lifetime, also can reduce the light decay.
  • Use the high quality aluminum PCB for LED’s better heat dissipation.
  •  High-grade PC cover with nice light transmittance (> 95%)
  • Transparent PC cover and frosted PC cover are available.
  • 140 degrees beam angle makes the lighting effect better.
  • CRI (standard products)>70,it can be over 80 if required.
  • Ambient temperature:-20°C-40°C, surface temperature: 42°C-45°C
  • No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation, no frequency flash, instant startup, no hurting eyes.



LED Tube T8 Other Watts:

LED Tube Length

0.6M

1.2M

1.5M

Model Number

T8.06P08S.3D61U

T8.12P18S.3D61U

T8.15P25S.3D61U

Power

8W

18W

25W

Input Voltage

AC85-265V / 50-60Hz

Power Factor

>0.95

LED Type

SMD2835

LED Q’ty

55 pcs

110 pcs

144 pcs

CCT

2800-3200K / 4000-4750K / 5500-6500K

CRI

>72 or >80

Lumen

600-800 Lm

1600-1800 Lm

2300-2500 Lm

Beam Angle

140°



LED Tube T8 CCT:



LED Tube T8 Dimension:

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube

Standard

Length

Dimension (mm)

A (max)

B (max)

C (max)

D (max)

0.6M

590

597

604

26

1.2M

1198

1206

1213

26

1.5M

1498

1505

1512

26



LED Tube T8 Installation:

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube








Packaging & Shipping

LED Tube T8 Package:

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube

LED Tube

Length

Carton Dimension

L (max)

H (max)

W (max)

Q’ty / Carton

N.W

G.W

0.6M

670 mm

220 mm

220 mm

25 pcs

5.4kg

6.0kg

1.2M

1270 mm

220 mm

220 mm

25 pcs

11.0kg

12.0kg

1.5M

1570 mm

220 mm

220 mm

25 pcs

13.0kg

14.4kg



Application Scenarios:

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube



King Star Factory:

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube



150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube



LED Tube T8 Certificates:

150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube150cm 22w SMD2835 Rotatable Lamp Holder tuv led tube






Our Services

Service and After Sale:

  1.   Your inquiry related to our products or prices will be replied in 24hrs.
  2.  Well-trained and experienced staffs to answer all your inquires
  3. 2 year warranty for our led products.
  4. After-sale tracking service for any our client.
  5. Payment :By T/T;L/C; Western Union;
  6. Delivery time: 3-4 days for sample,7-10 days for bulk order usually.
  7. Delivery way:DHL;UPS;TNT;FEDEX;EMS

tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube | tuv led tube

Thank you for your time and welcome your inquiry!
