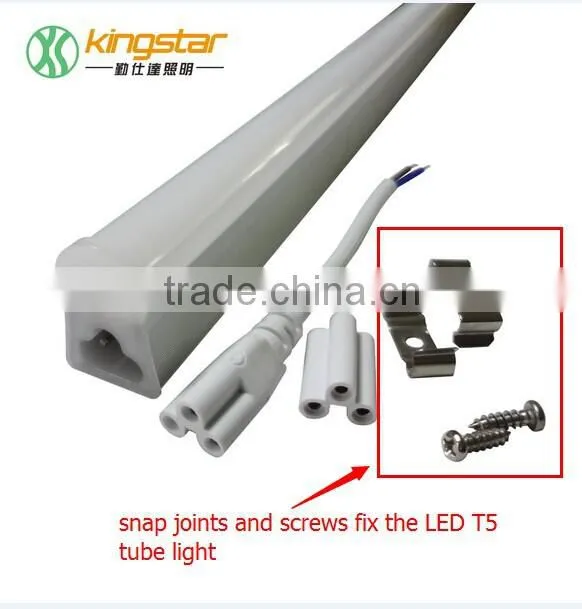

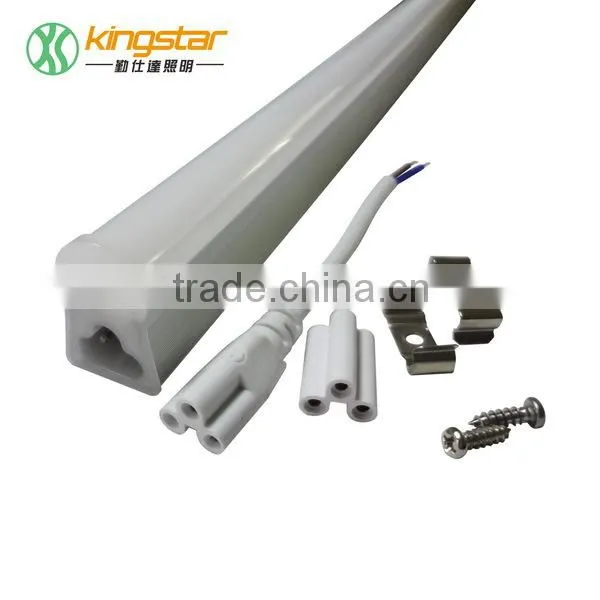

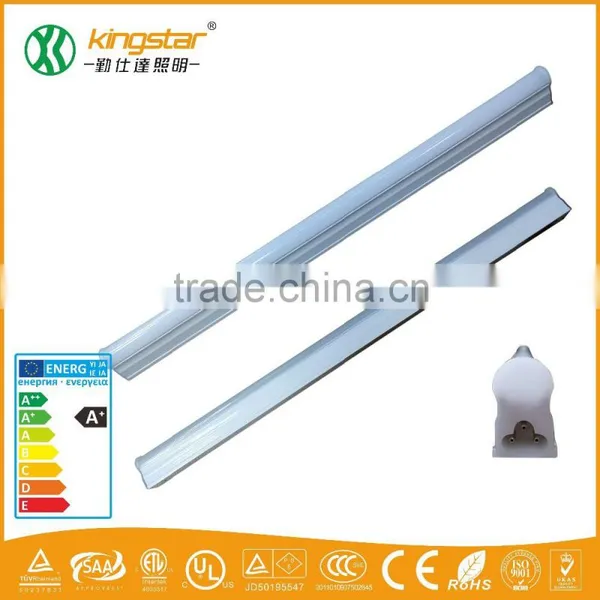

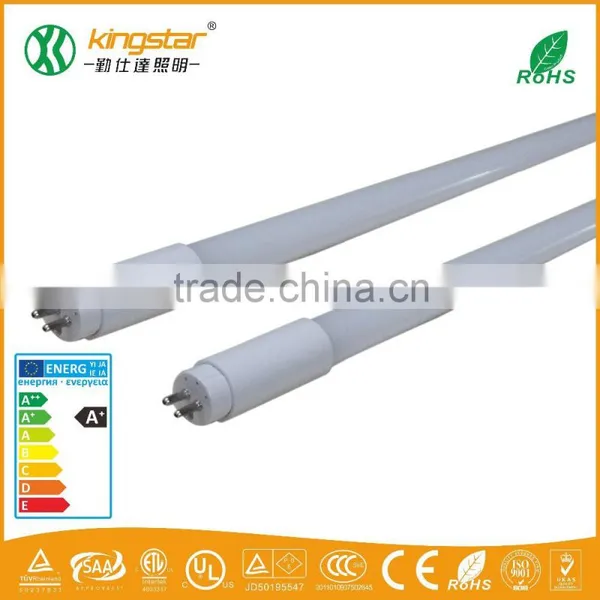

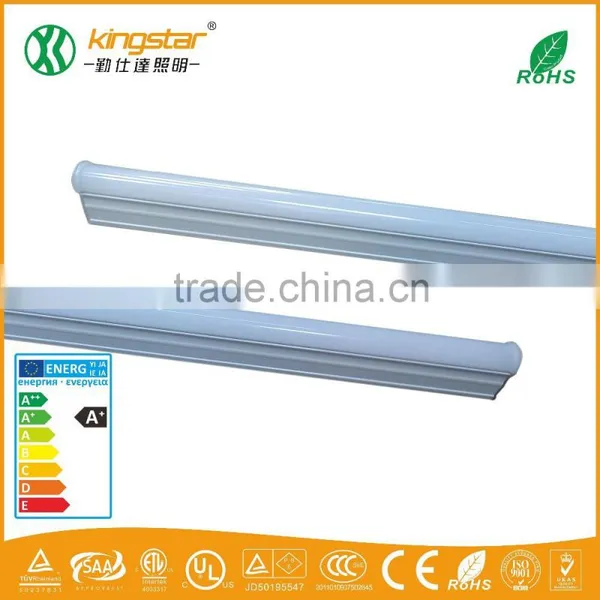

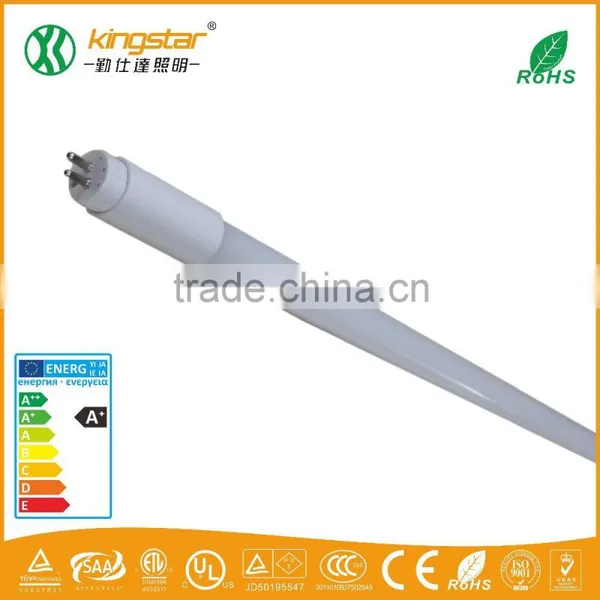

T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM

T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM thumbnail-1
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM thumbnail-2
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM thumbnail-3
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM thumbnail-4
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM thumbnail-5
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM thumbnail-6
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM photo-1
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM photo-2
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM photo-3
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM photo-4
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM photo-5
T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM photo-6
US$ 8 - 28 MOQ: 25 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD2835 t5 led tube light, SMD2835 t5 led tube light
Warranty(Years):
5
Input Voltage(V):
AC85-265V t5 led tube light
Contact Supplier Request Quote Chat Now
King Star Opto-Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen delivery t5 led tube light
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD2835 t5 led tube light, SMD2835 t5 led tube light
Warranty(Years) 5
Input Voltage(V) AC85-265V t5 led tube light
Lamp Power(W) 16
Lamp Luminous Flux(lm) 1400-1600lm t5 led tube light
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP33
Certification CE, EMC, ETL, LVD, VDE
Place of Origin Guangdong, China
Brand Name King Star t5 led tube light
Model Number Other, T8, T5 led tube light

Specifications

2835 SMD 1.2m 16W T5 led tube light and tube5 led tube 18w
LEDs: 2835 SMD
Power: 16W
Input: 220v

  2835 SMD 1.2m 16W T5 led tube light and tube5 led tube 18w
 Specification:

Electrical Characteristics

Optical Properties

Power Supply

With Internal Non-isolated Power

LED Type

SMD2835

Input Voltage

100-240V/50-60Hz

LED Q’ty

120 pcs

Rated Power

12W

Lumen

1100-1300 lm

Actual Power

12W±1.5W

CRI

≥ 70 Ra

Power Factor

0.90-0.95

Beam Angle

140°

Life Time

≥ 30000H

CCT

4000-4500K

Electrical Characteristics

Optical Properties

Power Supply

With Internal Non-isolated Power

LED Type

SMD2835

Input Voltage

100-240V/50-60Hz

LED Q’ty

168 pcs

Rated Power

16W

Lumen

1500-1700 lm

Actual Power

16W±1.5W

CRI

≥ 70 Ra

Power Factor

0.90-0.95

Beam Angle

140°

Life Time

≥30000H

CCT

4000-4500K

 Product Picture:

T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM

Dimension:

Standard

Length

Dimension (mm)

A

B

838

838

26.7

1143

1143

26.7



T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM

Product features:

1.CE certification

2.With internal Non-isolated power supply.

3.Use LED SMD2835 as the light source, which can ensure the led tube brightness and long lifetime, also can reduce the light decay.

4.Use the high quality aluminum PCB for LED’s better heat dissipation.

5.High-grade PC cover with nice light transmittance (>95%), Transparent PC cover and frosted PC cover are available.

5.140º beam angle makes the lighting effect better.

6.Ambient temperature:-20°C~40°C, surface temperature: 42°C~45°C.

7.No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation, no frequency flash, instant startup, no hurting eyes.

  Aging Process:T5 16W 1200cm SMD 2835 110pcs White LED Tube Light Lamp Bar AC 90-240V 1500LM



Packing Details:



Carton size:  127*22*22CM
Packing Qty: 25pcs/Carton
 Gross Weight:      10 KG/Carton
20'Container:   10000 PCS
40'Container:   21700  PCS



Application:
1. Instead of the indoors ceiling light
2. School/Universities/Hospital
3. Conference/Meeting room,Show Room
4. Commercial Complexes
5. Factories/Offices
6. Super markets
7. Residential/Institution buildings
