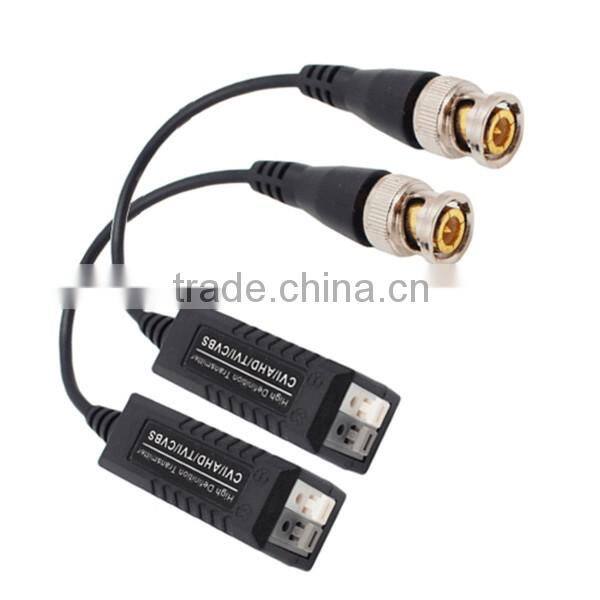

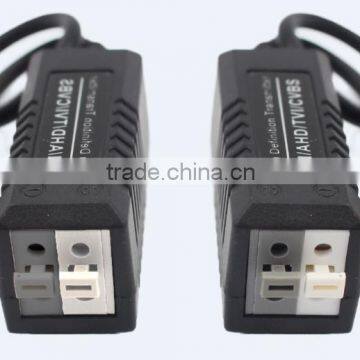

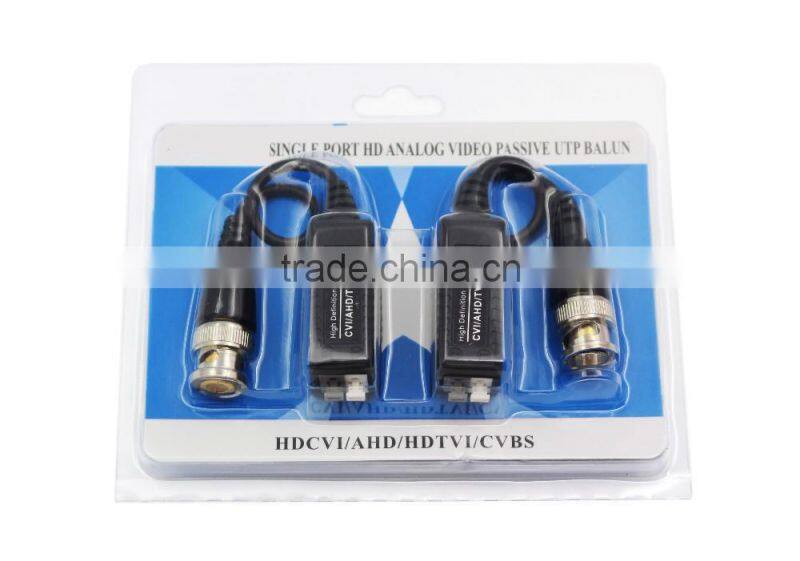

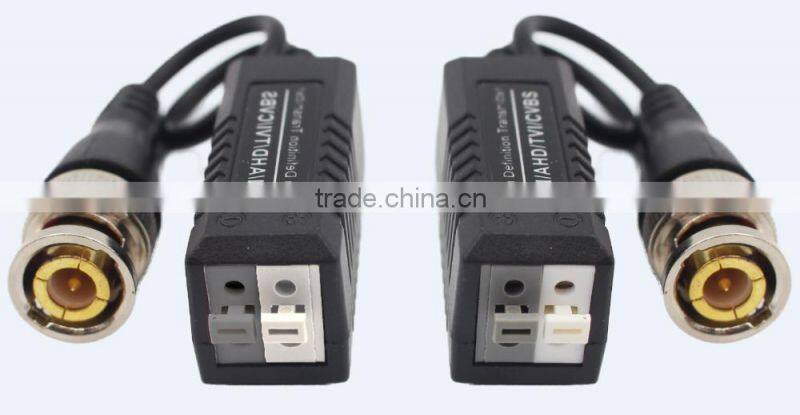

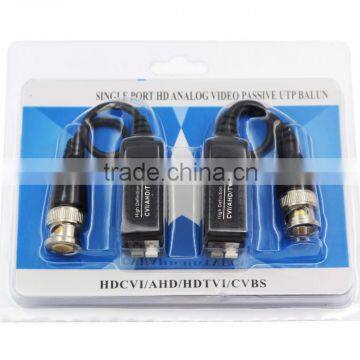

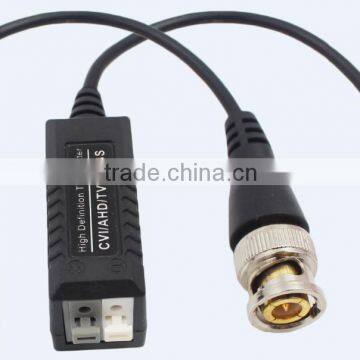

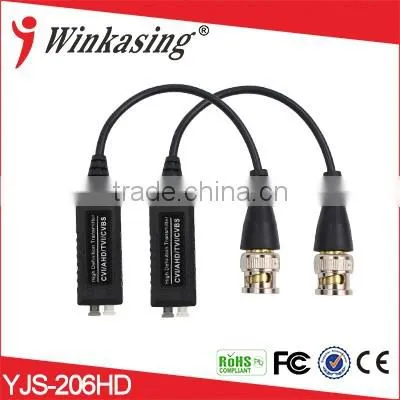

Passive CCTV HD CVI TVI ahd video balun
Features:
No power required
AHD/HDCVI/HDTVI video format compatible
Real time transmission
Exceptional interference rejection
Wave Filter Design,Anti-Static Design
Long-distance transmission and high-quality image
Compact size and easy installation
cost-effective
Specifications:
| ITEMS | SPECIFICATION |
| Transmission Distance | |
| HDCVI | 720P:600m |
| AHD | 960H/1080P:300m |
| HDTVI | 720P/1080P:200m |
| Video | |
| Compatible Format | AHD/CVI/TVI |
| Resolution | 720P/960H/1080P |
| Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ |
| Attenuation | 1.5dB typ Max |
| Impedance | Male BNC:75Ω |
| Terminal:100Ω | |
| Wire type | |
| Network Wiring | One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) |
| Category Type | 5 or better |
| Impedance | 100±20ohms |
| DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) |
| DC Loop Resistance | Different Capacitance |
| Power | |
| External power required | No |
| Protection | |
| Surge Protection | Renewable solid state surge protection |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Video Output | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Connector | |
| Video input/output | Male BNC / Push terminal |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Black |
| Dimensions | 203*49*105mm(connector included) |
| Gross weight | 72g/pair |
| Environment | |
| Operating Temperature | -20°C-70°C |
| Relative Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40°C-80°C |
| | |
1.Q: Are you a Video Balun factory or Video Balun trading company?
A: We are Video Balun manufacturer.
2.Q: Where is your Video Balun factory located? How can I visit there?
A: Our Video Balun factory is located in Shenzhen City, China. You can fly to Shenzhen Bao’an airport directly, and we will pick you up. Welcome to visit our Video Balun factory.
3.Q: How can I get some Video Balun samples?
A: We are honored to offer you Video Balun samples, pls contact our staff and leave detailed contact information, we promise to keep your information confidential.
4.Q: How does your Video Balun factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality controlling from the start to the end. All our Video Balun products have gained CE, FCC, ROHS certification.
5.Q:What can you do?
A:1.All of our Video Balun products have proceeded aging test before shipment and we guarantee safety while using our Video Balun products.
2.Support imprint your logo on Video Balun products and let your logo shine anywhere. 3.OEM/ODM orders are warmly welcomed!
6.Q:Warranty and return:
A:1.All Video Balun products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
With CE FCC RoHS certificates.
Please contact us for details of more items.
