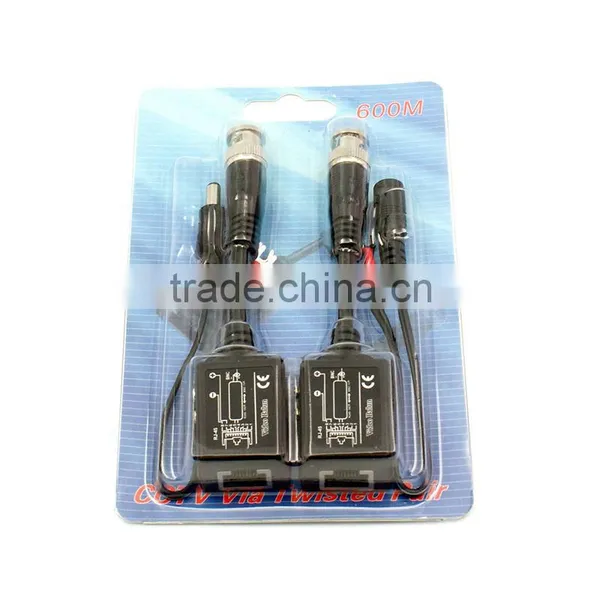

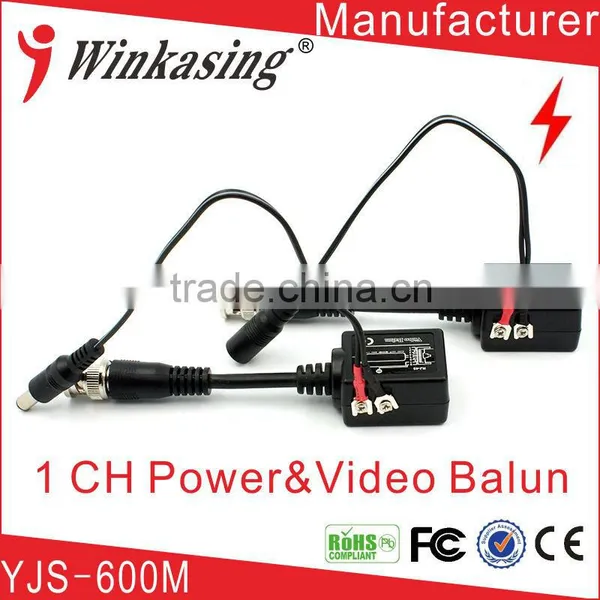

YJS-600M Video balun
NTSC,PAL&SECAM video format compatible
Real time transmission
Exceptional interference rejection
Wave Filter Design,Anti-Static Design,Surge Protection
Long-distance transmission and high-quality image
Compact size and easy installation
Cost-effective
| ITEMS | SPECIFICATION |
| Transmission Distance | |
| Transmission Distance with passive | 400-600m |
| Transmission Distance with active | 1500m |
| Video | |
| Video Format | PAL,NTSC,SECAM |
| Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ |
| Attenuation | 1.5dB typ Max |
| Impedance | Male BNC:75Ω |
| Terminal:100Ω | |
| Wire type | |
| Network Wiring | One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) |
| Category Type | 5 or better |
| Impedance | 100±20ohms |
| DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) |
| DC Loop Resistance | Different Capacitance |
| Power | |
| No External power required | No External power required |
| Protection | |
| Surge Protection | Renewable solid state surge protection |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Video Output | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Connector | |
| Video input/output | Male BNC / RJ45 Port / DC Jack |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Black |
| Dimensions | 166*107*20mm |
| Gross weight | 85g |
| Environment | |
| Operating Temperature | -20℃-70℃ |
| Relative Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40℃-80℃ |
Shenzhen Yongjiasheng Technologies Co., Ltd. is a professional video balun manufacturer with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our video balun products are extensively used in security industry and other industries.
Our video balun products are widely recognized and trusted by video balun users and can meet continuously changing economic and social needs.
We welcome new and old customers to contact us for future business relationships and mutual success!
1.Item Video balun will be shipped within 1-3 business days.
2. Delivery Time:
Video balun Via Express: Generally 3-10 working days.
Video balun Via Air Mail: Generally 10-30 working days.
3. We only ship Video balun to confirmed order addresses. Your order address MUST MATCH your Shipping address so that you can receive video balun correctly.
4. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
5. We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your Video balun is inspected.
6.The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
7. If you have not received your Video balun shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Customer satisfaction is our final goal!
