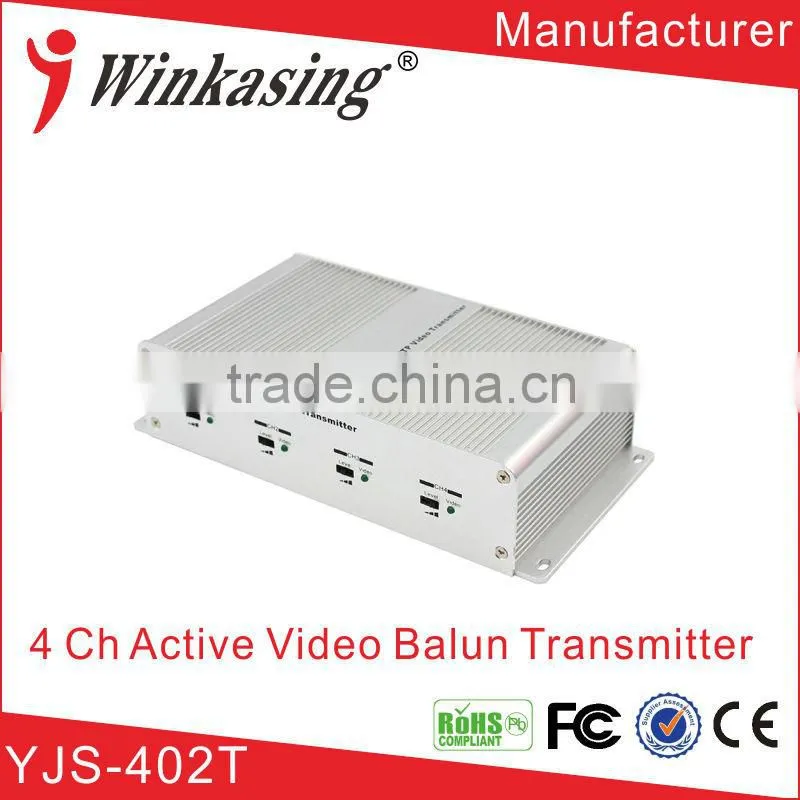

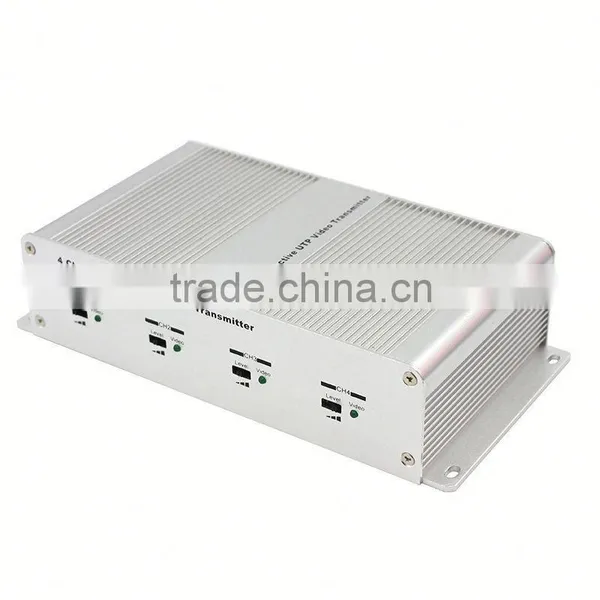

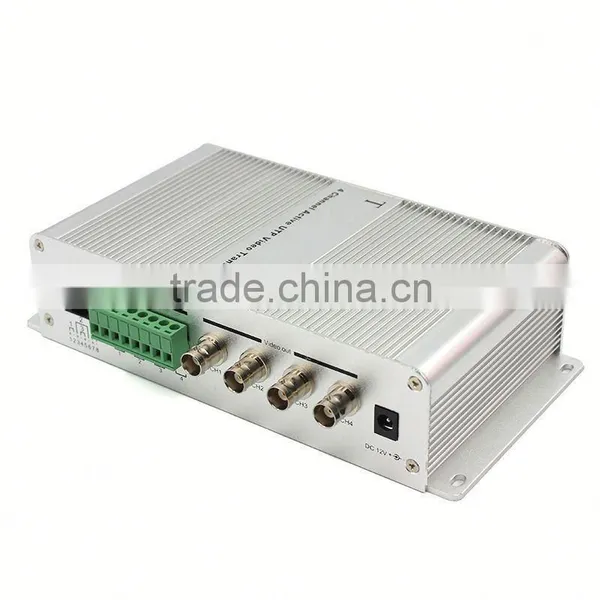

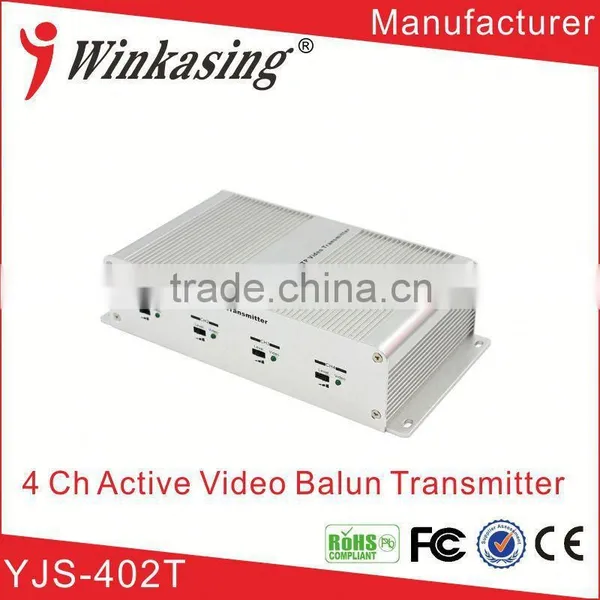

4 Channel Security Video Balun With Copper BNC
|
FEATURE NTSC,PAL&SECAM video format compatible |
| ITEMS | SPECIFICATION |
| Transmission Distance | |
| Transmission Distance | 2400m |
| Video | |
| Video Format | PAL,NTSC,SECAM |
| Operating Frequency | DC to 6MHz |
| Common-mode/Different-mode rejection | 15KHz to 5MHz 60 dB typ |
| Attenuation | 1.5dB typ Max |
| Impedance | Male BNC:75Ω |
| Terminal:100Ω | |
| Wire type | |
| Network Wiring | One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm) |
| Category Type | 5 or better |
| Impedance | 100±20ohms |
| DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) |
| DC Loop Resistance | Different Capacitance |
| Power | |
| External power required | External power required |
| Protection | |
| Video Input | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Video Output | 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999) |
| Connector | |
| Video input/output | Male BNC / RJ45 Port / Push-Pins |
| Mechanical | |
| Housing | ABS engineering plastic |
| Body Color | Sliver |
| Dimensions | 203*49*105mm(connector included) |
| Gross weight | 580g |
| Environment | |
| Operating Temperature | -20°C-70°C |
| Relative Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40°C-80°C |
