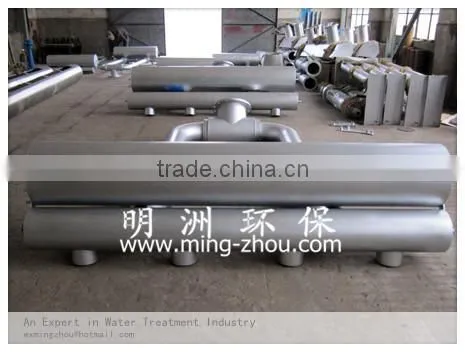

Help CenterPSW Unpowered Rotary Decanter
Related Products
Specifications
Simple structure easy to maintenance.Without power, relying on its buoyance and gravity up and down.Advection drainage.PSW unpowered decanter
The T-type drainage system connected the water collection system by a flexible bellows. The water collection system is composed by float and the water inlet head. Due to the buoyancy of float, the water head of the decanter changes with the water surface.
PSW unpowered decanter is a high degree of automation of water treatment equipment, used for sequencing batch reactor activated sludge process - SBR treatment of urban sewage in our country has been the promotion, the core part of the equipment - water decanter is very important in the process. I companies in the same industry brought in the advanced technology, on the basis of a variety of research and development for new water decanter respectively, applicable to small, medium and large SBR, CASS pool.
Main advantages:
- Simple structure easy to maintenance.
- Without power, relying on its buoyance and gravity up and down.
- With functions such as self diagnoses, malfunction warning and self protection.
- Automatic control by sewage treatment plant.
- Advection drainage, do not disturb activated sludge underwater.
Features:
1, equipment body using U rotational support, all parts are made of stainless steel, with compact, smooth operation.
2, buoy the floating design, can according to the pool water level changes and always keep decantation aquifer in the same water depth, water to decant the best effect.
3, the equipment body without power operation, the overall equipment run time in addition to discharge outlet equipped with electric valve outside, the rest parts shall not use any power.
4, equipment operation decantation water speed even and smooth surface without fluctuation, the main body power no noise, decant the water to the water level rising and continuous separation.
5, underwater rotating part adopts machine rotating machinery plant, to ensure water decanter rotating part of the long run and not aging fracture.
6, equipment body did not use any rubber parts production, long service life.
7, equipment normal operation, can through the electric valve to decant water range from 0 to maximum decantation water depth to adjust.
8, header tank inlet to be equipped with automatic mudguard, in the pool aeration can effective isolation sludge.
Main technical parameters:
Name |
Model |
Drainage capacity (m³/h) |
Max. Drain Height ΔH/(mm) |
Remark |
unpowered decanter |
PSW-200(-400,600,800,1000) |
0-200(-400,600,800,1000) |
2500 |
the drain mass adjustable |
