Customized your own DVB-T DVB-C from our strong R & D team
With a team of experienced software engineers on staff, we are constantly researching and providing Receiver DVB-C the lastest and better
We are an R & D-oriented supplier, specializing in DVB (HD & SD DVB-C, DVB-T2/T, DVB-S2) Research & Development, Production.
Strong R & D capability is the key reason behind our success. All software & hardware are designed by our self high-quality technical team that why we're able to make product customization according to customer's needs, as well as continuously supplying technical supports & services to customers.
Set top box:
√ MPEG-4 HD & SD DVB-C
√ MPEG-4 HD & SD DVB-T2
√ MPEG-4 HD & SD DVB-S2
√ MPEG-4 HD DVB-C + T2 Combo
√ MPEG-4 HD DVB-T2 + S2 Combo
Value added-ons Service:
√ CAS Porting Service;
√ Software development in Middleware
Strong R & D Strength behind Your Orders:
Our R & D technician develop our own DVB in-house. The software development team can handle almost every aspect of DVB software stack starting from bottom most layers to top most layers, allowing us to smoothly integrate just what features you require.
Our main objective now is for PAY-TV operator. Our STB boxes (DVB-C/T2/S2) have made their way into hundreds thousand of homes throughout Europe, the Americas, Asia, and Africa through our client base of over 90 operators in 25 countries and regions. To support the volume requirements of these buyers, we produce up to 100,000 DVB receivers monthly.
Customization for your own DVB-T DVB-C !
Being the strategic partner of some CAS vendors, We have integrated CAS:
Dexin, NSTV , ABV, Conax, Engima, CryptoGuard, Topreal
Our main objective now is for PAY-TV operator. Our product is compatible with major CA systems like irdeto with advanced security. For high quality CAS porting service you may need, contact us today.

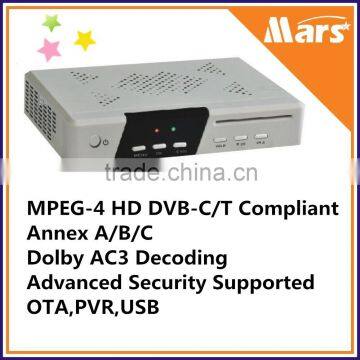

MPEG-4 / H.264 HD DVB-T DVB-C

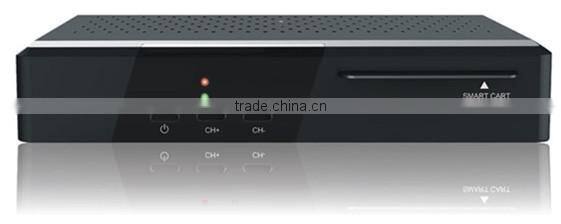

Picture of DVB-T DVB-C
Model: SZHC1211-3
√ HD DVB-C/T compatible
√ Advanced, full featured HD Cable Receiver
√ Main Processor: MSD5043 (Mstar Semiconductor)
√ CAS Embedded, optimized for pay-TV cable services
√ Advanced Security Supported USB,
√ USB, PVR, OTA upgrading
Features of DVB-T DVB-C
USB 2.0 Host Support (PVR, MP3 Player & Picture Viewer) |
| Recording & Playback with External USB 2.0 Devices |
| Time Shift with External USB 2.0 Devices |
| Recording and Time shift simultaneously |
| Support EPG (Electronic Program Guide), Event recording by EPG |
| Fully DVB Compliant & MPEG-2/H.264 |
| On-screen Display with 16 bit Color Full Resolution |
| Favorite Service group |
| Powerful service control by Favorites, Lock, Skip, Move, Rename and Delete |
| Service Sorting by LCN, Service ID, Network ID and Service Name |
| Multi-Language Supported (OSD & Menu) |
| Tele text, Subtitle Support |
| Maximum 1000 services programmable |
| Multi-picture Display |
| Parental lock |
| HDMI output, CVBS Video & Audio Output via RCA |
| Software & Service Database Transfer via USB |
Specification of DVB-T DVB-C
Tuner & Channel
| Input Connector: | F-type, IEC 169-24, Female |
| Loop through Out: | IEC 169-1, Male |
| Frequency Range: | 50MHz-862MHz |
| Demodulation: | QAM |
| Input Symbol Rate: | 1-7 Msp/s |
| Bandwidth: | 7 / 8 MHz |
| Modulation Format: | 16, 32, 64, 128, 256 QAM |
Transport Stream A/V decoding
| Transport Stream: | MPEG-2 ISO/IEC 13818, ITU-Th.264 |
| Profile Level: | MPEG-2 MP & ML, H.264 Main Profile and High Profile & Leve14.0 |
| Input Rate: | Max. 20Mbit/s |
| Video Resolution: | 4:3 LetterBox 4:3 PanSacn, 4:3 Full Screen, 16:9 |
| Audio Decoding: | MPEG-1, MPEG-2(Layer I & II), MP3, AC3, DD+, AAC-LC, HE-AAC |
| Audio Mode: | Stereo/ Joint Stereo/Mono |
| Sampling Rate: | 16, 22, 05, 24, 32,44,1KHz and 48KHz |
Main System:
| Main Processor: | MSD5043 (Mstar Semiconductor) |
| Memory: | FLASH-ROM 4M/ 8Mbytes | DDR3: 128Mbytes |
Audio / Video & Data In / Out:
| HDMI: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080P |
| RCA: | CVBS Video, Audio L, R Output |
| USB: | USB2.0 Host Support |
Front Panel
| Slot: | 1 Smart Card Slot |
| Buttons: | 3 Buttons (Standby, CH UP / DOWN) |
| Display: | None |
| Indicators: | 2 LEDs (Standby: Red, working: Green) |
Multimedia Format Supported:
| Video: | mpg,mpeg,dat,ts,trp,tp,m2ts,m2t1,vob,mov,rmvb,rm,mkv,avi,flv,3gp |
| Audio: | MP3, OGG, AC3, M4A/AAC, WMA/ASF |
| Photo: | JPG, JPEG, JPE, BMP, PNG |
Power Supply:
| Input Voltage: | DC 12V/1A |
| Type: | SMPS |
| Power Consumption: | Max.12W |
| Standby Power: | Max. 1W |
| Protection: | Separate Internal Fuse & Lighting Protection |
Physical Specification:
| Size (W x D x H): 170mm * 115mm *32mm | |
| Operating Temp.: | 0℃- + 45℃ |
| Storage Temp.: | -10℃- - + 70℃ |
Service:
√ We provide 1 year warranty of products and shipment with 1% spare parts.
√ During the warranty period, repair or replace the faulty boxes and software maintains
and upgrades for free. We can discuss for any additional requirements from customers.
√ After the warranty, we only charge material cost fee for hardware and spares. Fixing
minor bugs of software is free. The charges will be negotiated for large changes in design.
Buy from China’s DVB-T DVB-C expert, contact us today!
