Help CenterDigital TV Box HD MPEG4 H.264 Receiver DVB T2 DVB S2 Combo
Related Products
-
NSTV Novel Supertv CAS High Security DVBC MPEG2 MPEG4 STB for CATV Head EndUS$ 20.1 - 25.1MOQ: 1 Piece -
Novel Supertv NSTV DVB C Set Top Box MPEG4, Cable TV Set Top BoxUS$ 20.1 - 25.1MOQ: 1 Piece
-
Novel Supertv NSTV STB DVB-C H.264 HD, Cable TV DVB-C Set Top Box Quality ChoiceUS$ 20.1 - 25.1MOQ: 1 Piece
-
NSTV Novel Supertv Digital Head End Set Top Box DVB T2 Encoder, STB DVB T2US$ 15 - 25MOQ: 1 Piece
-
MPEG4 HD Setup Box DVB T2US$ 18 - 25MOQ: 1 Piece
Set top box:
√ MPEG-4 HD & SD DVB-C/T (MMDS)
√ MPEG-4 HD & SD DVB-T2
√ MPEG-4 HD & SD DVB-S2
√ MPEG-4 HD DVB-C + T2 Combo
√ MPEG-4 HD DVB-T2 + S2 Combo
√ MPEG-4 HD ISDB-T
Value added-ons Service:
√ CAS Porting Service;
√ Software development in Middleware

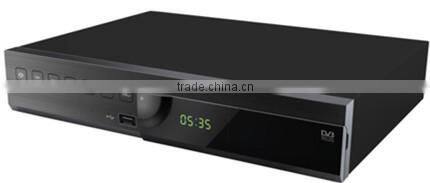

MPEG-4 HD Receiver DVB T2 DVB S2 Combo
picture of DVB T2 DVB S2
Model: MSHT1541-2
√ Combo HD DVB-T2 + S2
√ Advanced, full featured HD Terrestrial and Satellite Receiver
√ Main Processor: MSD7819 (Mstar Semiconductor)
√ CAS Embedded, optimized for pay-TV cable services
√ Advanced Security Supported
√ USB, PVR, OTA upgrading
It is an advanced and full featured HD DVB-T2+ S2 Set Top Box, optimized for pay-TV terrestrial and satellite services. The product provides standard and high definition reception based on MPEG4 (H.264) /MPEG2 and DVB-T2 & S2 standards. The product has been integrated with Dexin, NSTV , ABV, Conax, Engima, CryptoGuard, Topreal. It is also available for other CA systems like Irdeto with advanced security.
Features of DVB T2 DVB S2
USB 2.0 Host Support (PVR, MP3 Player & Picture Viewer) |
| Recording & Playback with External USB 2.0 Devices |
| Time Shift with External USB 2.0 Devices |
| Recording and Time shift simultaneously |
| Support EPG (Electronic Program Guide), Event recording by EPG |
| Fully DVB Compliant & MPEG-2/H.264 |
| On-screen Display with 16 bit Color Full Resolution |
| Favorite Service group |
| Powerful service control by Favorites, Lock, Skip, Move, Rename and Delete |
| Service Sorting by LCN, Service ID, Network ID and Service Name |
| Multi-Language Supported (OSD & Menu) |
| Tele text, Subtitle Support |
| Maximum 4000 services programmable |
| Multi-picture Display |
| Parental lock |
| HDMI output, CVBS Video & Audio Output via RCA |
| Software & Service Database Transfer via USB |
Specification of DVB T2 DVB S2
Tuner & Channel
DVB-S2
| Input Connector: | IEC 169- 1, Female |
| Loop through Out: | IEC 169-1, Male |
| Frequency Range: | 950MHz-2150MHz |
| FEC: | 1/4,1/3.2/5,1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10 |
| Modulation Format: | QPSK, 8PSK,16APSK, 32APSK |
DVB-T2
| Input Connector: | IEC 169-1, Female |
| Loop through Out: | IEC 169-1, Male |
| Frequency Range: | 50MHz-862MHz |
| Demodulation: | OFDM |
| Bandwidth: | 6/ 7 / 8 MHz |
| Modulation Format: | QPSK, 16QAM, 62QAM, 256QAM |
Transport Stream A/V decoding
| Transport Stream: | MPEG-2 ISO/IEC 13818, ITU-Th.264 |
| Profile Level: | MPEG-2 MP & ML, H.264 Main Profile and High Profile & Leve4.0.4.3 |
| Video Resolution: | LetterBox 4:3 PanSacn, 4:3 Full Screen, 16:9 |
| Audio Decoding: | MPEG-1, MPEG-2(Layer I & II), MP3, AC3, DD+, AAC-LC, HE-AAC |
| Audio Mode: | Stereo/ Joint Stereo/Mono |
| Sampling Rate: | 16, 22, 05, 24, 32,44,1KHz and 48KHz |
Main System:
| Main Processor: | MSD 7819 (Mstar Semiconductor) |
| Memory: | FLASH-ROM 4M/ 8Mbytes | DDR3: 128Mbytes |
Audio / Video & Data In / Out:
| HDMI: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080P |
| RCA: | CVBS Video, Audio L, R Output |
| SPDIF Output : | Coaxial Output |
Front Panel
| Slot: | 1 Smart Card Slot |
| Buttons: | 7 Buttons ( Power, MENU, UP/DOWN,LEFT/ RIGHT. OK) |
| Display: | LED Array |
| Indicators: | 2 LEDs (Standby: Red, working: Green) |
Multimedia Format Supported:
| Video: | mpg,mpeg,dat,ts,trp,tp,m2ts,m2t1,vob,mov,rmvb,rm,mkv,avi,flv,3gp |
| Audio: | MP3, OGG, M4A/AAC |
| Photo: | JPG, JPEG, JPE, BMP, PNG |
Power Supply:
| Input Voltage: | DC 12V/1A |
| Type: | SMPS |
| Power Consumption: | Max.12W |
| Standby Power: | Max. 1W |
| Protection: | Separate Internal Fuse & Lighting Protection |
Physical Specification:
| Size (W x D x H): | 220mm * 137mm *45mm |
| Operating Temp.: | 0℃- + 45℃ |
| Storage Temp.: | -10℃- - + 70℃ |
Buy from China’s Receiver DVB T2 DVB S2 Combo expert, contact us today!
Related product
Customized your own HD and SD DVB ( DVB-C, DVB-T2, DVB-S2 ) from our strong R & D team
With a team of experienced software engineers on staff, we are constantly researching and providing Receiver DVB-C, DVB-T2, DVB-S2 the lastest and better

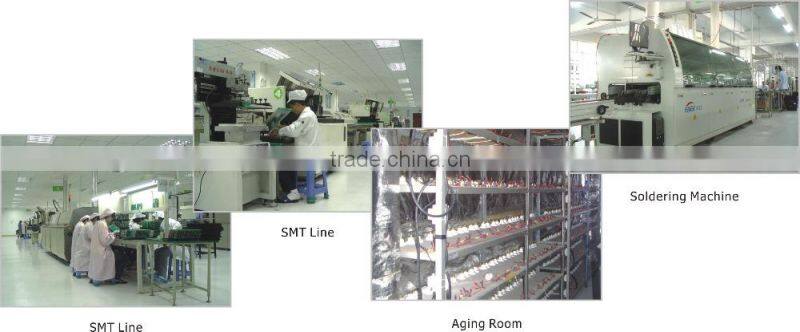

We are an R & D-oriented supplier, specializing in DVB (HD & SD DVB-C, DVB-T2/T, DVB-S2) Research & Development, Production.
Strong R & D capability is the key reason behind our success. All software & hardware are designed by our self high-quality technical team that why we're able to make product customization according to customer's needs, as well as continuously supplying technical supports & services to customers.
Strong R & D Strength behind Your Orders:
Our R & D technician develop our own DVB in-house. The software development team can handle almost every aspect of DVB software stack starting from bottom most layers to top most layers, allowing us to smoothly integrate just what features you require.
Our main objective now is for PAY-TV operator. Our DVB boxes (DVB-C/T2/S2) have made their way into hundreds thousand of homes throughout Europe, the Americas, Asia, and Africa through our client base of over 90 operators in 25 countries and regions. To support the volume requirements of these buyers, we produce up to 100,000 DVB receivers monthly.
