Help CenterHigh Security NSTV Novel Supertv CAS Satellite Receiver HD MPEG4 DVB S2
Related Products
-
Set Top Box Cable Box HD Recorder DVB C MPEG4 Available for Conax CAS Quality ChoiceUS$ 20 - 25MOQ: 1 Piece -
Digital TV Box HD MPEG4 H.264 Receiver DVB T2 DVB S2 ComboUS$ 24 - 28MOQ: 1 Piece
-
NSTV Novel Supertv CAS High Security DVBC MPEG2 MPEG4 STB for CATV Head EndUS$ 20.1 - 25.1MOQ: 1 Piece
-
Novel Supertv NSTV DVB C Set Top Box MPEG4, Cable TV Set Top BoxUS$ 20.1 - 25.1MOQ: 1 Piece
-
Novel Supertv NSTV STB DVB-C H.264 HD, Cable TV DVB-C Set Top Box Quality ChoiceUS$ 20.1 - 25.1MOQ: 1 Piece
Set top box:
√ MPEG-4 HD & SD DVB-C/ T (MMDS)
√ MPEG-4 HD & SD DVB-T2
√ MPEG-4 HD & SD DVB-S2
√ MPEG-4 HD ISDB-T
√ MPEG-4 HD DVB-C + T2 Combo
√ MPEG-4 HD DVB-T2 + S2 Combo
Value added-ons Service:
√ CAS Porting Service;
√ Software development in Middleware
Being the strategic partner of some CAS vendors, We have integrated CAS like:
Dexin, NSTV (Novel supertv) , ABV, Conax, Engima, CryptoGuard, Topreal
√ Our main objective now is for PAY-TV operator market.
√ Our product is compatible with major CA systems and supports advanced security.
For high quality CAS porting service you may need, contact us today.

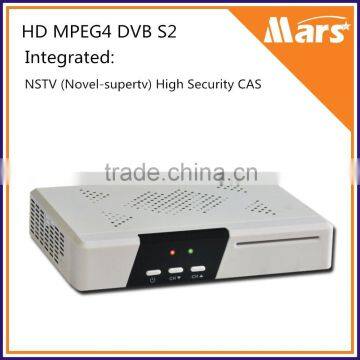

High Definition MPEG4 DVB S2
It is an advanced and full featured HD digital receiver (DVB S2). It is compatible with the major CAS systems. By designed for pay-TV satellite service, it supports high security and has been embedded CAS including NSTV (Novel supertv), Dexin, Conax, Cryptoguard, Enigma, Topreal, ABV and so on.
It provides standard and high definition reception based on MPEG4 (H.264)/MPEG2 and DVB S2 standards. With HDMI interface, PVR , OTA software upgrade to ensures high quality contents to an HD-ready TV set.

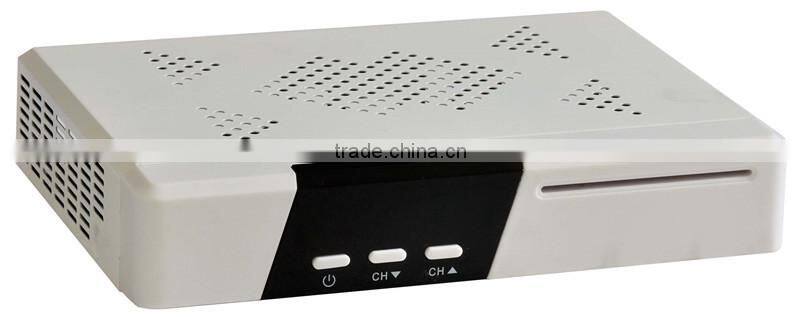

Picture of DVB S2
Model: MSHS1211-1
√ HD DVB-S2
√ Advanced, full featured HD Satellite Receiver
√ Main Processor: MSD5029 (Mstar Semiconductor)
√ CAS Embedded, optimized for pay-TV Satellite services
√ Advanced Security Supported
√ USB, PVR, OTA upgrading
Being the strategic partner of some CAS vendors, We have integrated CAS including :
Dexin, NSTV (Novel supertv) , ABV, Conax, Engima, CryptoGuard, Topreal
Our main objective now is for PAY-TV operator. Our product is compatible with major CA systems like irdeto with advanced security. For high quality CAS porting service you may need, contact us today.
Features of DVB S2
USB 2.0 Host Support (PVR, MP3 Player & Picture Viewer) |
| Recording & Playback with External USB 2.0 Devices |
| Time Shift with External USB 2.0 Devices |
| Recording and Time shift simultaneously |
| Support EPG (Electronic Program Guide), Event recording by EPG |
| Fully DVB Compliant & MPEG-2/H.264 |
| On-screen Display with 16 bit Color Full Resolution |
| Favorite Service group |
| Powerful service control by Favorites, Lock, Skip, Move, Rename and Delete |
| Service Sorting by LCN, Service ID, Network ID and Service Name |
| Multi-Language Supported (OSD & Menu) |
| Tele text, Subtitle Support |
| Maximum 4000 services programmable |
| Multi-picture Display |
| Parental lock |
| HD output, CVBS Video & Audio Output via RCA |
| Software & Service Database Transfer via USB |
Specification of DVB S2
Tuner & Channel
| Input Connector: | IEC 169-1, Female |
| Loop through Out: | IEC 169-1, Male |
| Frequency Range: | 950MHz-2150MHz |
| FEC: | 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 |
| Modulation Format: | QPSK, 8PSK, 16APSK, 32APSk |
Transport Stream A/V decoding
| Transport Stream: | MPEG-2 ISO/IEC 13818, ITU-Th.264 |
| Profile Level: | MPEG-2 MP & ML, H.264 Main Profile and High Profile & Leve14.0 |
| Input Rate: | Max. 20Mbit/s |
| Video Resolution: | 4:3 LetterBox 4:3 PanSacn, 4:3 Full Screen, 16:9 |
| Audio Decoding: | MPEG-1, MPEG-2(Layer I & II), MP3, AC3, DD+, AAC-LC, HE-AAC |
| Audio Mode: | Stereo/ Joint Stereo/Mono |
| Sampling Rate: | 16, 22, 05, 24, 32,44,1KHz and 48KHz |
Main System:
| Main Processor: | MSD5029 (Mstar Semiconductor) |
| Memory: | FLASH-ROM 4M/ 8Mbytes | DDR3: 128Mbytes |
Audio / Video & Data In / Out:
| HDMI: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080P |
| RCA: | CVBS Video, Audio L, R Output |
| USB: | USB2.0 Host Support |
Front Panel
| Slot: | 1 Smart Card Slot |
| Buttons: | 3 Buttons (Standby, CH UP / DOWN) |
| Display: | None |
| Indicators: | 2 LEDs (Standby: Red, working: Green) |
Multimedia Format Supported:
| Video: | mpg,mpeg,dat,ts,trp,tp,m2ts,m2t1,vob,mov,rmvb,rm,mkv,avi,flv,3gp |
| Audio: | MP3, OGG, AC3, M4A/AAC, WMA/ASF |
| Photo: | JPG, JPEG, JPE, BMP, PNG |
Power Supply:
| Input Voltage: | DC 12V/1.5A |
| Type: | SMPS |
| Power Consumption: | Max.12W |
| Standby Power: | Max. 1W |
| Protection: | Separate Internal Fuse & Lighting Protection |
Physical Specification:
| Size (W x D x H): 170mm * 115mm *32mm | |
| Operating Temp.: | 0℃- + 45℃ |
| Storage Temp.: | -10℃- - + 70℃ |
Related product
Customized your own HD and SD DVB-C, DVB-T2, DVB-S2 set top box from our strong R & D team
With a team of experienced software engineers on staff, we are constantly researching and providing Receiver DVB-C, DVB-T2, DVB-S2 the lastest and better
We are an R & D-oriented supplier, specializing in DVB (HD & SD DVB-C, DVB-T2/T, DVB-S2) Research & Development, Production.
Strong R & D capability is the key reason behind our success. All software & hardware are designed by our self high-quality technical team that why we're able to make product customization according to customer's needs, as well as continuously supplying technical supports & services to customers.
Strong R & D Strength behind Your Orders:
Our R & D technician develop our own DVB in-house. The software development team can handle almost every aspect of DVB software stack starting from bottom most layers to top most layers, allowing us to smoothly integrate just what features you require.
Our main objective now is for PAY-TV operator. Our STB boxes (DVB-C/T2/S2) have made their way into hundreds thousand of homes throughout Europe, the Americas, Asia, and Africa through our client base of over 90 operators in 25 countries and regions. To support the volume requirements of these buyers, we produce up to 100,000 DVB receivers monthly.
Customization for your own Set top box DVB-C, DVB-T2, DVB-C, DVB-S2 today!
