Help CenterCable PAY-TV Receiver Digital H.264 MPEG4 HD STB
Related Products
-
H.264 MPEG-4 High Definition Digital Cable Receiver DVB-C Set Top Box, Receiver HD DVB-C Quality ChoiceUS$ 18.3 - 25.5MOQ: 1 Piece -
Combo Set Top Box DVB-T DVB-C H.264 HD, Receiver DVB-C MPEG-4US$ 18.3 - 25.5MOQ: 1 Piece
-
Advanced Security Supported PVR Digital H.264 HD DVB C Receiver, Mpeg4 HD DVB C STB Box Quality ChoiceUS$ 18.3 - 25.5MOQ: 1 Piece
-
Cable Box OTA Upgrading Digital HD DVB-C Reciever for Conax CAS System Quality ChoiceUS$ 18 - 25MOQ: 1 Piece
-
High Security NSTV Novel Supertv CAS Satellite Receiver HD MPEG4 DVB S2US$ 22 - 25MOQ: 1 Piece
Set top box:
√ MPEG-4 HD & SD DVB-C STB
√ MPEG-4 HD & SD DVB-T2 STB
√ MPEG-4 HD & SD DVB-S2 STB
√ MPEG-4 HD DVB-C + T2 Combo STB
√ MPEG-4 HD DVB-T2 + S2 Combo STB
Value added-ons Service:
√ CAS Porting Service;
√ Software development in Middleware
Being the strategic partner of some CAS vendors, We have integrated CAS like:
Dexin, NSTV, ABV, Conax, Engima, CryptoGuard, Topreal
√ Our products are mainly for PAY-TV operators and Headend system STB distributors.
√ Our product is compatible with CA systems and supports advanced security.
For high quality CAS porting service you may need, contact us today.
H.264 MPEG4 HD STB DVB-C

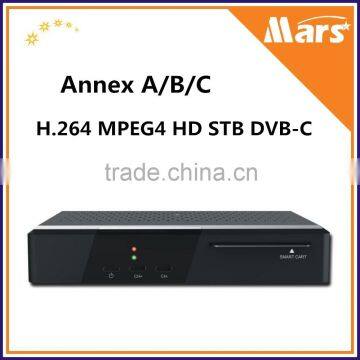

Picture of HD STB
Model: SZHC1211-1
√ HD DVB-C/T compatible
√ Advanced, full featured HD Cable Receiver
√ Main Processor: MSD5043/5029 (Mstar Semiconductor)
√ CAS Embedded, optimized for pay-TV cable services
√ Advanced Security Supported
√ USB, PVR, OTA upgrading
Features of HD STB
USB 2.0 Host Support (PVR, MP3 Player & Picture Viewer) |
| Recording & Playback with External USB 2.0 Devices |
| Time Shift with External USB 2.0 Devices |
| Recording and Time shift simultaneously |
| Support EPG (Electronic Program Guide), Event recording by EPG |
| Fully DVB Compliant & MPEG-2/H.264 |
| On-screen Display with 16 bit Color Full Resolution |
| Favorite Service group |
| Powerful service control by Favorites, Lock, Skip, Move, Rename and Delete |
| Service Sorting by LCN, Service ID, Network ID and Service Name |
| Multi-Language Supported (OSD & Menu) |
| Tele text, Subtitle Support |
| Maximum 1000 services programmable |
| Multi-picture Display |
| Parental lock |
| HD output, CVBS Video & Audio Output via RCA |
| Software & Service Database Transfer via USB |
Specification of HD STB
Tuner & Channel
| Input Connector: | F-type, IEC 169-24, Female |
| Loop through Out: | IEC 169-1, Male |
| Frequency Range: | 50MHz-862MHz |
| Demodulation: | QAM |
| Input Symbol Rate: | 1-7 Msp/s |
| Bandwidth: | 7 / 8 MHz |
| Modulation Format: | 16, 32, 64, 128, 256 QAM |
Transport Stream A/V decoding
| Transport Stream: | MPEG-2 ISO/IEC 13818, ITU-Th.264 |
| Profile Level: | MPEG-2 MP & ML, H.264 Main Profile and High Profile & Leve14.0 |
| Input Rate: | Max. 20Mbit/s |
| Video Resolution: | 4:3 LetterBox 4:3 PanSacn, 4:3 Full Screen, 16:9 |
| Audio Decoding: | MPEG-1, MPEG-2(Layer I & II), MP3, AC3, DD+, AAC-LC, HE-AAC |
| Audio Mode: | Stereo/ Joint Stereo/Mono |
| Sampling Rate: | 16, 22, 05, 24, 32,44,1KHz and 48KHz |
Main System:
| Main Processor: | MSD5043/5029 (Mstar Semiconductor) |
| Memory: | FLASH-ROM 4M/ 8Mbytes | DDR3: 128Mbytes |
Audio / Video & Data In / Out:
| HDMI: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080P |
| RCA: | CVBS Video, Audio L, R Output |
| USB: | USB2.0 Host Support |
Front Panel
| Slot: | 1 Smart Card Slot |
| Buttons: | 3 Buttons (Standby, CH UP / DOWN) |
| Display: | None |
| Indicators: | 2 LEDs (Standby: Red, working: Green) |
Multimedia Format Supported:
| Video: | mpg,mpeg,dat,ts,trp,tp,m2ts,m2t1,vob,mov,rmvb,rm,mkv,avi,flv,3gp |
| Audio: | MP3, OGG, AC3, M4A/AAC, WMA/ASF |
| Photo: | JPG, JPEG, JPE, BMP, PNG |
Power Supply:
| Input Voltage: | DC 12V/1A |
| Type: | SMPS |
| Power Consumption: | Max.12W |
| Standby Power: | Max. 1W |
| Protection: | Separate Internal Fuse & Lighting Protection |
Physical Specification:
| Size (W x D x H): | 170mm * 115mm *32mm |
| Operating Temp.: | 0℃- + 45℃ |
| Storage Temp.: | -10℃- - + 70℃ |
Service:
√ We provide 1 year warranty of products and shipment with 1% spare parts.
√ During the warranty period, repair or replace the faulty boxes and software maintains
and upgrades for free. We can discuss for any additional requirements from customers.
√ After the warranty, we only charge material cost fee for hardware and spares. Fixing
minor bugs of software is free. The charges will be negotiated for large changes in design.
Customized your own STB, H.264 MPEG4 HD STB from our strong R & D team
With a team of experienced software engineers on staff, we are constantly researching and providing the lastest and better STB, H.264 MPEG4 HD STB
We are an R & D-oriented supplier, specializing in DVB (HD & SD DVB-C, DVB-T2/T, DVB-S2) Research & Development, Production.
Strong R & D capability is the key reason behind our success. All software & hardware are designed by our self high-quality technical team that why we're able to make product customization according to customer's needs, as well as continuously supplying technical supports & services to customers.
Strong R & D Strength behind Your Orders:
Our R & D technician develop our own DVB in-house. The software development team can handle almost every aspect of DVB software stack starting from bottom most layers to top most layers, allowing us to smoothly integrate just what features you require.
Our main objective now is for PAY-TV operator. Our STB boxes (DVB-C/T2/S2) have made their way into hundreds thousand of homes throughout Europe, the Americas, Asia, and Africa through our client base of over 90 operators in 25 countries and regions. To support the volume requirements of these buyers, we produce up to 100,000 DVB receivers monthly.
Customization for your own STB, H.264 MPEG4 HD STB !
Similiar Product
Service:
√ We provide 1 year warranty of products and shipment with 1% spare parts.
√ During the warranty period, repair or replace the faulty boxes and software maintains
and upgrades for free. We can discuss for any additional requirements from customers.
√ After the warranty, we only charge material cost fee for hardware and spares. Fixing
minor bugs of software is free. The charges will be negotiated for large changes in design.
Buy from China’s H.264 MPEG4 HD STB expert, contact us today!
